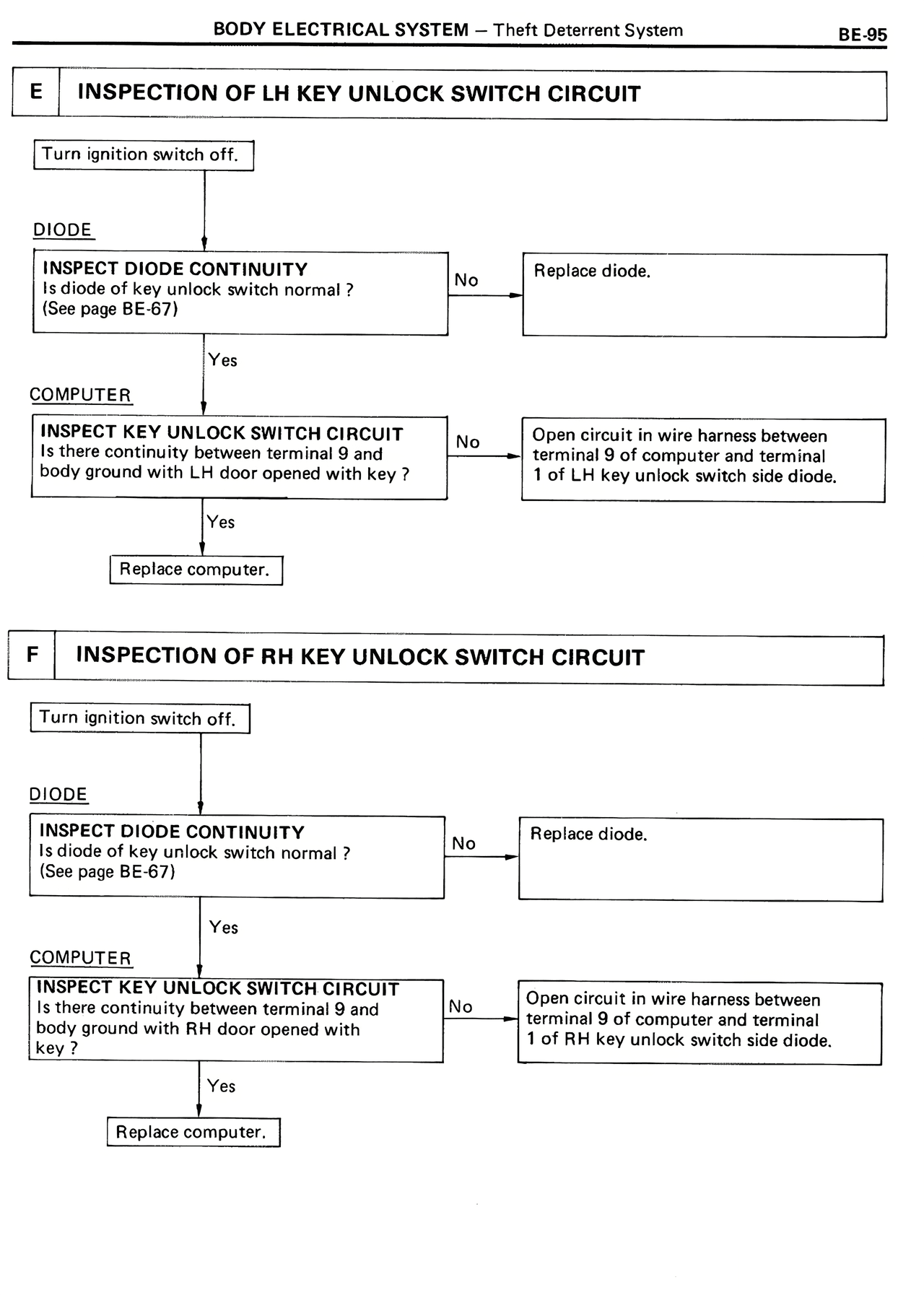

INSPECTION OF LH KEY UNLOCK SWITCH CIRCUIT
Turn ignition switch off.
DIODE
INSPECT DIODE CONTINUITY
Is diode of key unlock switch normal?
(See page BE-67)
No → Replace diode.
Yes ↓
COMPUTER
INSPECT KEY UNLOCK SWITCH CIRCUIT
Is there continuity between terminal 9 and
body ground with LH door opened with key?
No → Open circuit in wire harness between
terminal 9 of computer and terminal
1 of LH key unlock switch side diode.
Yes ↓
Replace computer.
F
INSPECTION OF RH KEY UNLOCK SWITCH CIRCUIT
Turn ignition switch off.
DIODE
INSPECT DIODE CONTINUITY
Is diode of key unlock switch normal?
(See page BE-67)
No → Replace diode.
Yes ↓
COMPUTER
INSPECT KEY UNLOCK SWITCH CIRCUIT
Is there continuity between terminal 9 and
body ground with RH door opened with
key?
No → Open circuit in wire harness between
terminal 9 of computer and terminal
1 of RH key unlock switch side diode.
Yes ↓
Replace computer.
