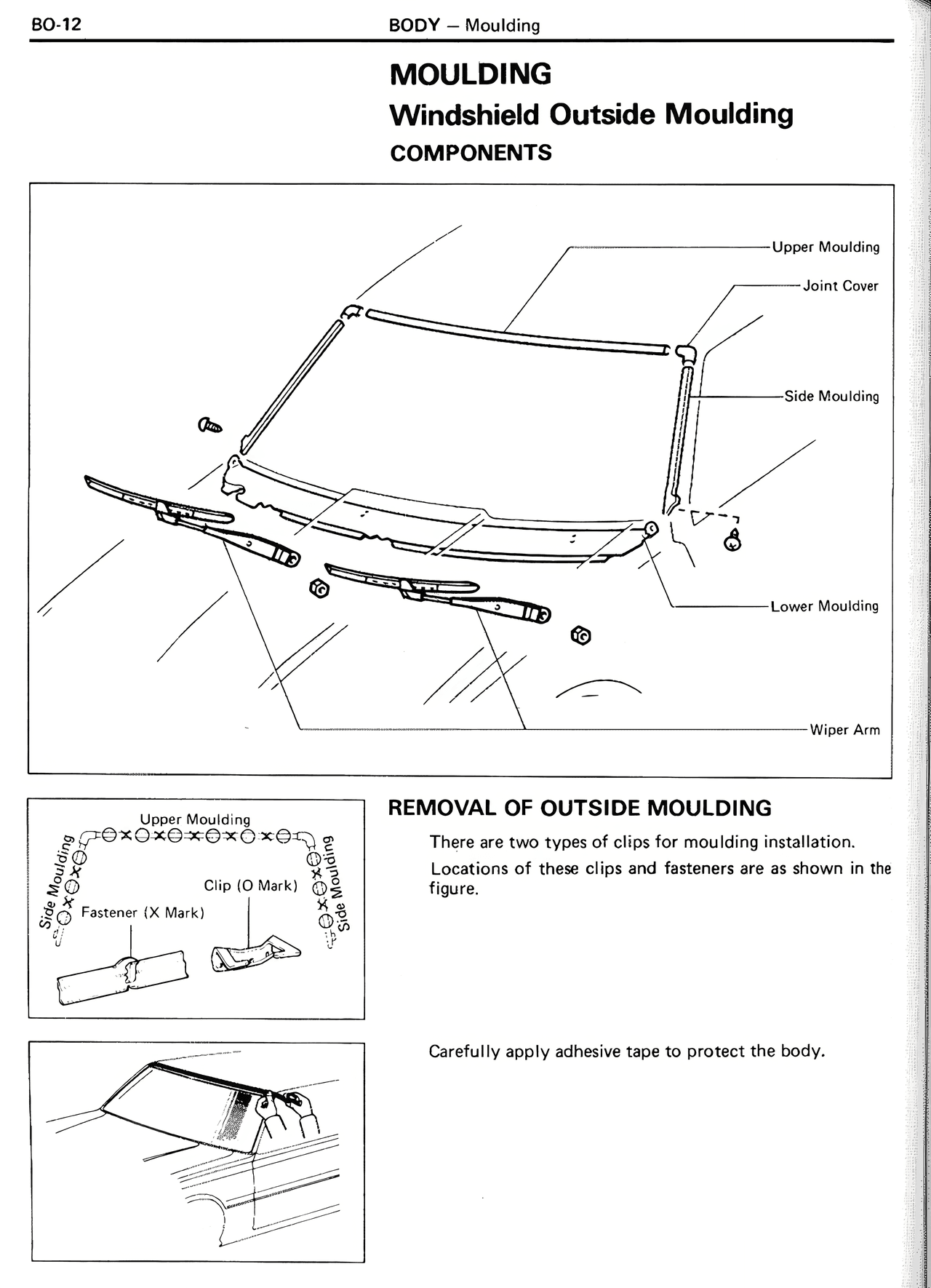

MOULDING Windshield Outside Moulding COMPONENTS Upper Moulding Joint Cover Side Moulding Lower Moulding Wiper Arm Upper Moulding Clip (O Mark) Fastener (X Mark) Side Moulding Side Moulding REMOVAL OF OUTSIDE MOULDING There are two types of clips for moulding installation. Locations of these clips and fasteners are as shown in the figure. Carefully apply adhesive tape to protect the body.
