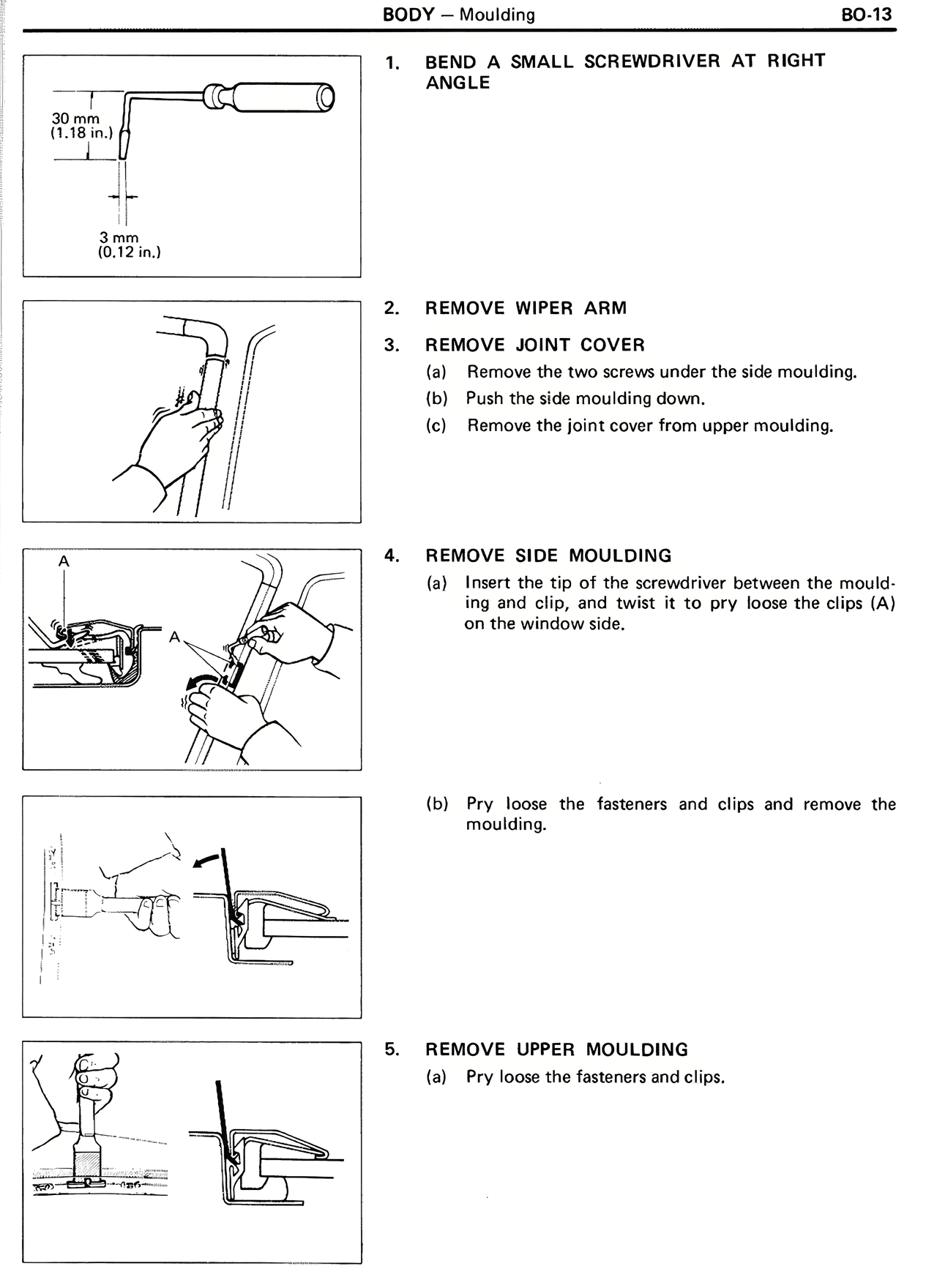

1. BEND A SMALL SCREWDRIVER AT RIGHT ANGLE
30 mm (1.18 in.)
3 mm (0.12 in.)
2. REMOVE WIPER ARM
3. REMOVE JOINT COVER
(a) Remove the two screws under the side moulding.
(b) Push the side moulding down.
(c) Remove the joint cover from upper moulding.
4. REMOVE SIDE MOULDING
(a) Insert the tip of the screwdriver between the moulding and clip, and twist it to pry loose the clips (A) on the window side.
(b) Pry loose the fasteners and clips and remove the moulding.
5. REMOVE UPPER MOULDING
(a) Pry loose the fasteners and clips.
