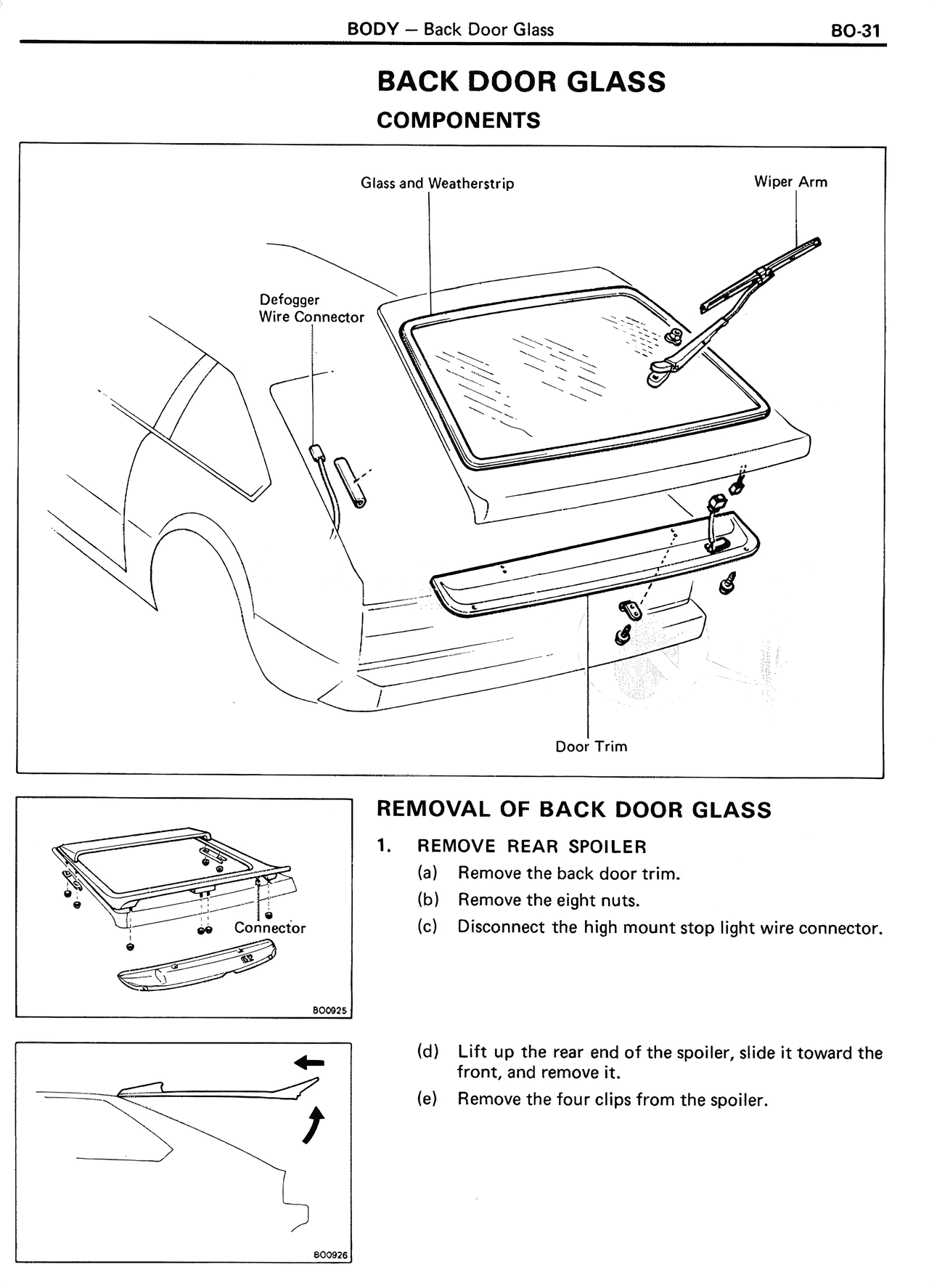

BACK DOOR GLASS COMPONENTS Glass and Weatherstrip Defogger Wire Connector Wiper Arm Door Trim REMOVAL OF BACK DOOR GLASS 1. REMOVE REAR SPOILER (a) Remove the back door trim. (b) Remove the eight nuts. (c) Disconnect the high mount stop light wire connector. (d) Lift up the rear end of the spoiler, slide it toward the front, and remove it. (e) Remove the four clips from the spoiler. Connector BO0025 BO0092
