BODY — Back Door Glass — MK2 Supra Body, page 32
100%

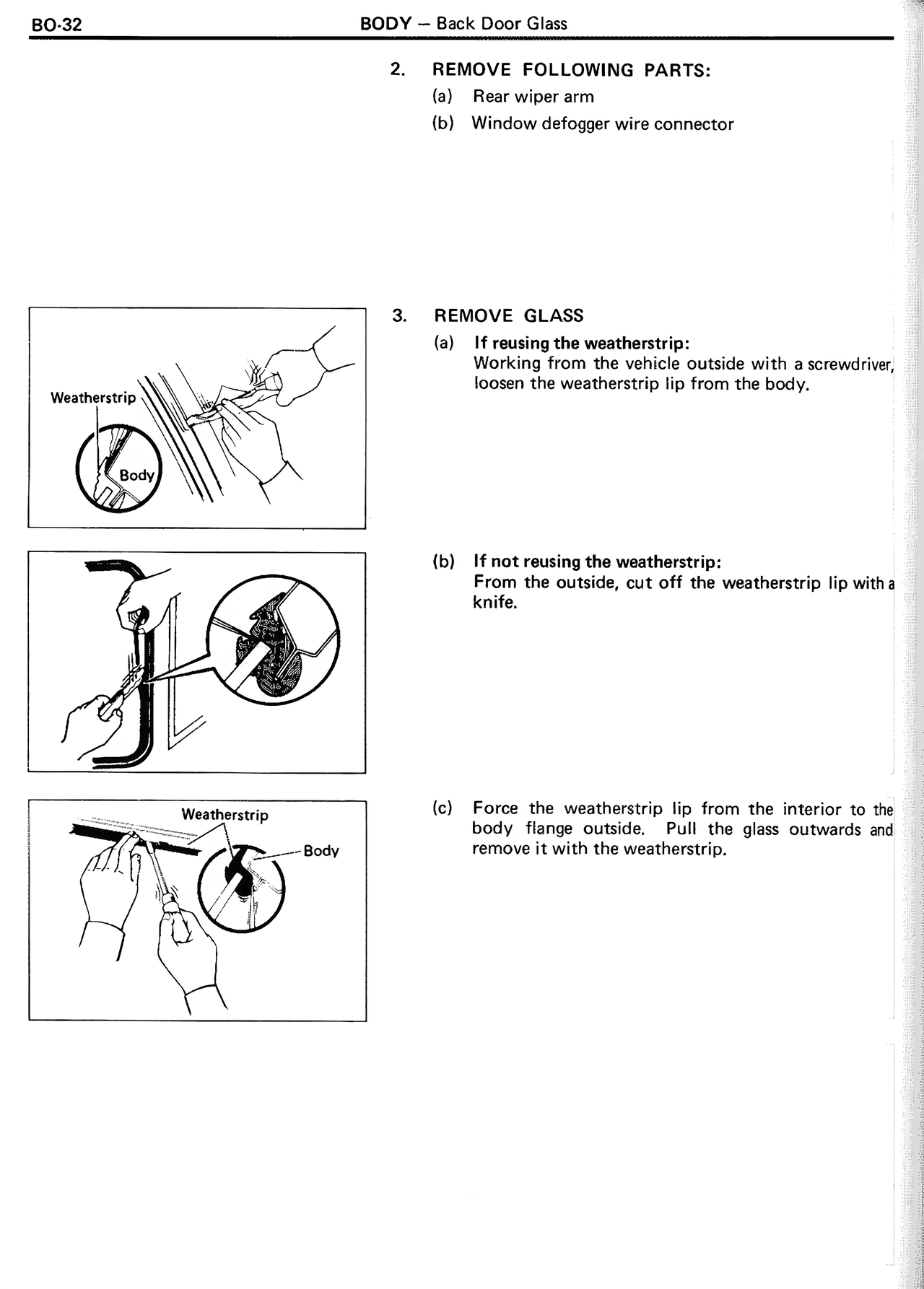

BO-32 BODY — Back Door Glass 2. REMOVE FOLLOWING PARTS: (a) Rear wiper arm (b) Window defogger wire connector 3. REMOVE GLASS (a) If reusing the weatherstrip: Working from the vehicle outside with a screwdriver, loosen the weatherstrip lip from the body. Weatherstrip Body (b) If not reusing the weatherstrip: From the outside, cut off the weatherstrip lip with a knife. (c) Force the weatherstrip lip from the interior to the body flange outside. Pull the glass outwards and remove it with the weatherstrip. Weatherstrip Body
