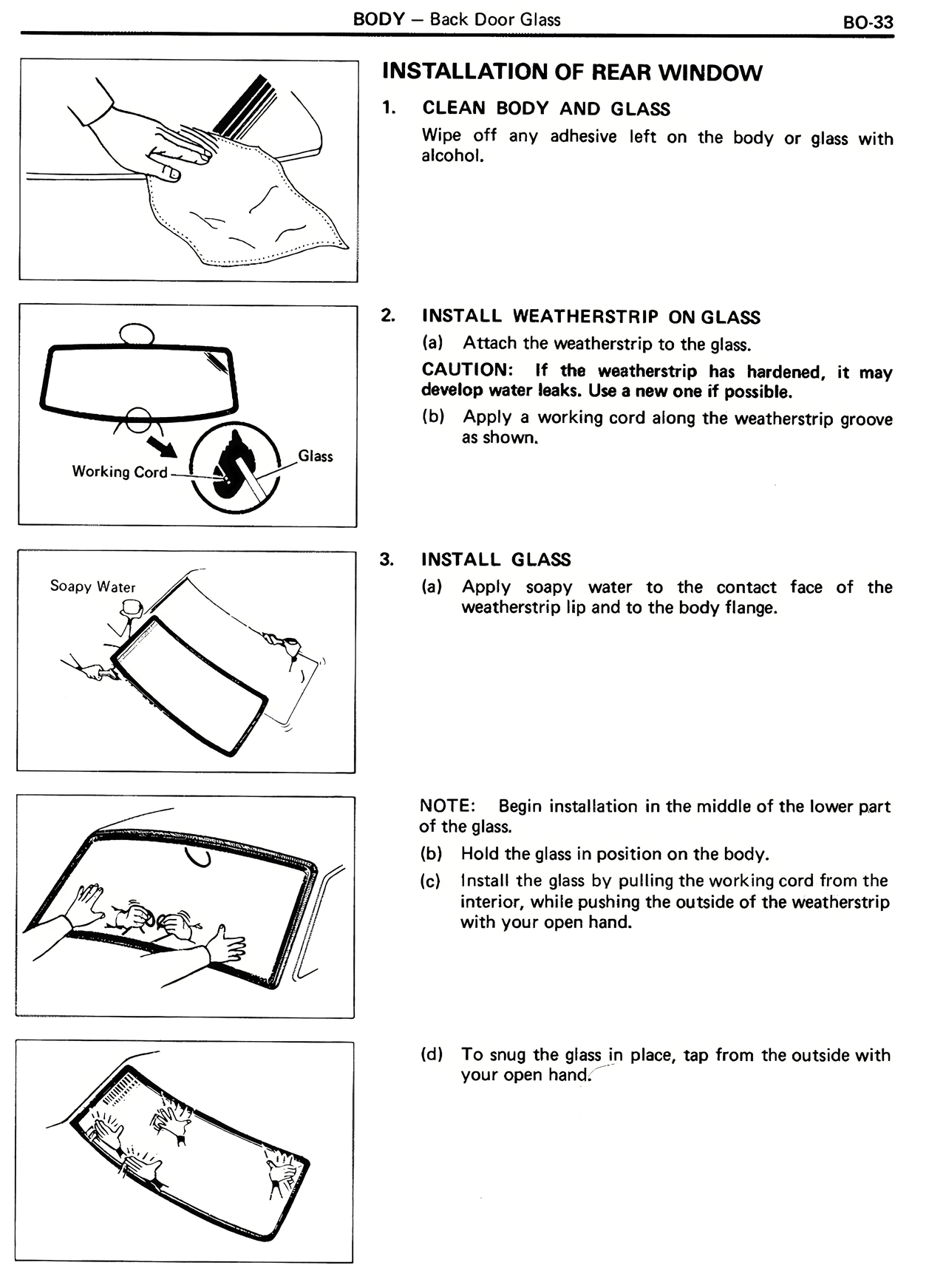

INSTALLATION OF REAR WINDOW
1. CLEAN BODY AND GLASS
Wipe off any adhesive left on the body or glass with alcohol.
2. INSTALL WEATHERSTRIP ON GLASS
(a) Attach the weatherstrip to the glass.
CAUTION: If the weatherstrip has hardened, it may develop water leaks. Use a new one if necessary.
(b) Apply a working cord along the weatherstrip groove as shown.
3. INSTALL GLASS
(a) Apply soapy water to the contact face of the weatherstrip lip and to the flange.
NOTE: Begin installation in the middle of the lower part of the glass.
(b) Hold the glass in position on the body.
(c) Install the glass by pulling the working cord from the interior, while pushing the outside of the weatherstrip with your open hand.
(d) To snug the glass in place, tap from the outside with your open hand.
