BODY — Sun Roof

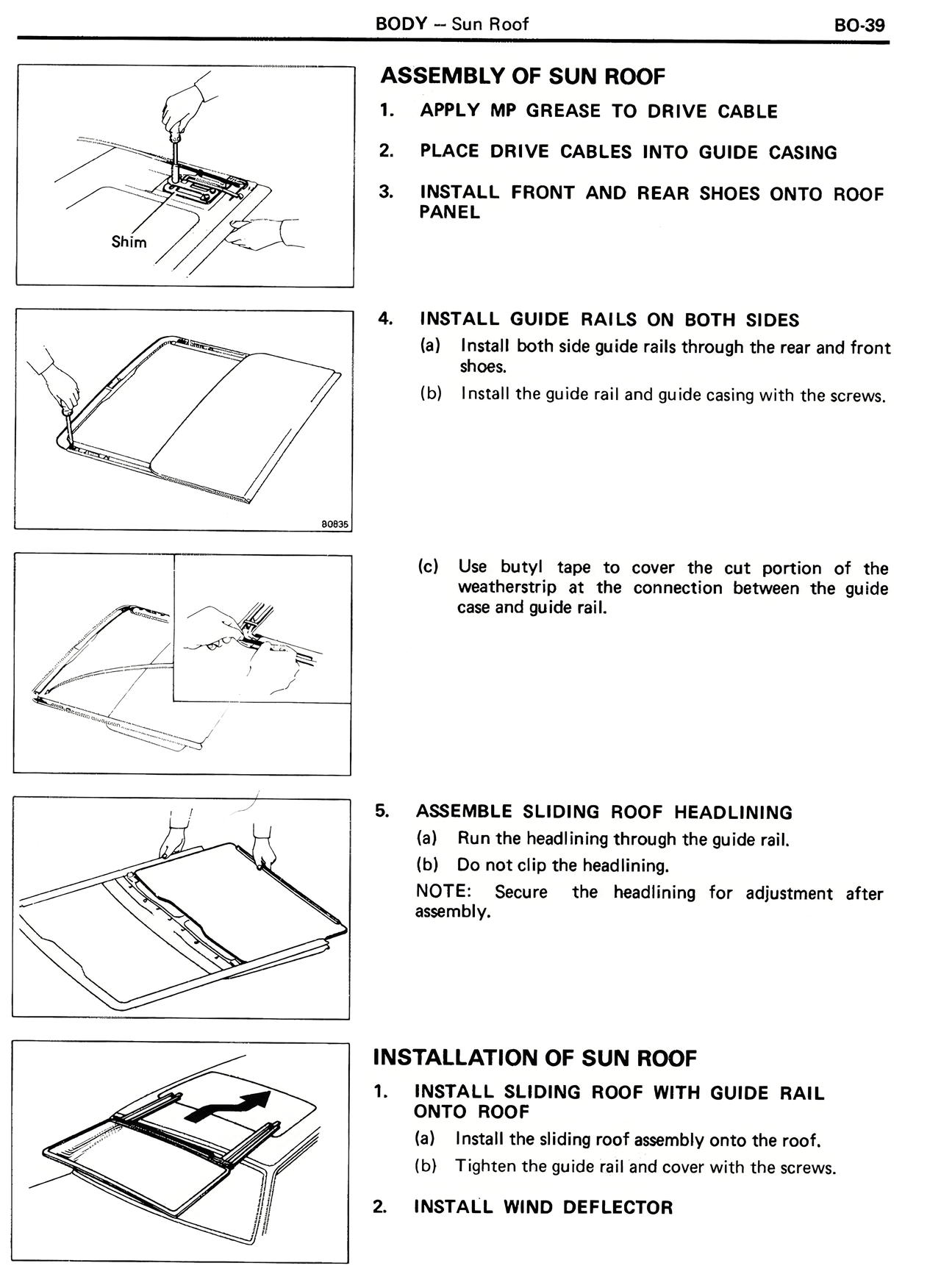

ASSEMBLY OF SUN ROOF
1. APPLY MP GREASE TO DRIVE CABLE
2. PLACE DRIVE CABLES INTO GUIDE CASING
3. INSTALL FRONT AND REAR SHOES ONTO ROOF PANEL
Shim
4. INSTALL GUIDE RAILS ON BOTH SIDES
(a) Install both side guide rails through the rear and front shoes.
(b) Install the guide rail and guide casing with the screws.
(c) Use butyl tape to cover the cut portion of the weatherstrip at the connection between the guide case and guide rail.
5. ASSEMBLE SLIDING ROOF HEADLINING
(a) Run the headlining through the guide rail.
(b) Do not clip the headlining.
NOTE: Secure the headlining for adjustment after assembly.
INSTALLATION OF SUN ROOF
1. INSTALL SLIDING ROOF WITH GUIDE RAIL ONTO ROOF
(a) Install the sliding roof assembly onto the roof.
(b) Tighten the guide rail and cover with the screws.
2. INSTALL WIND DEFLECTOR
