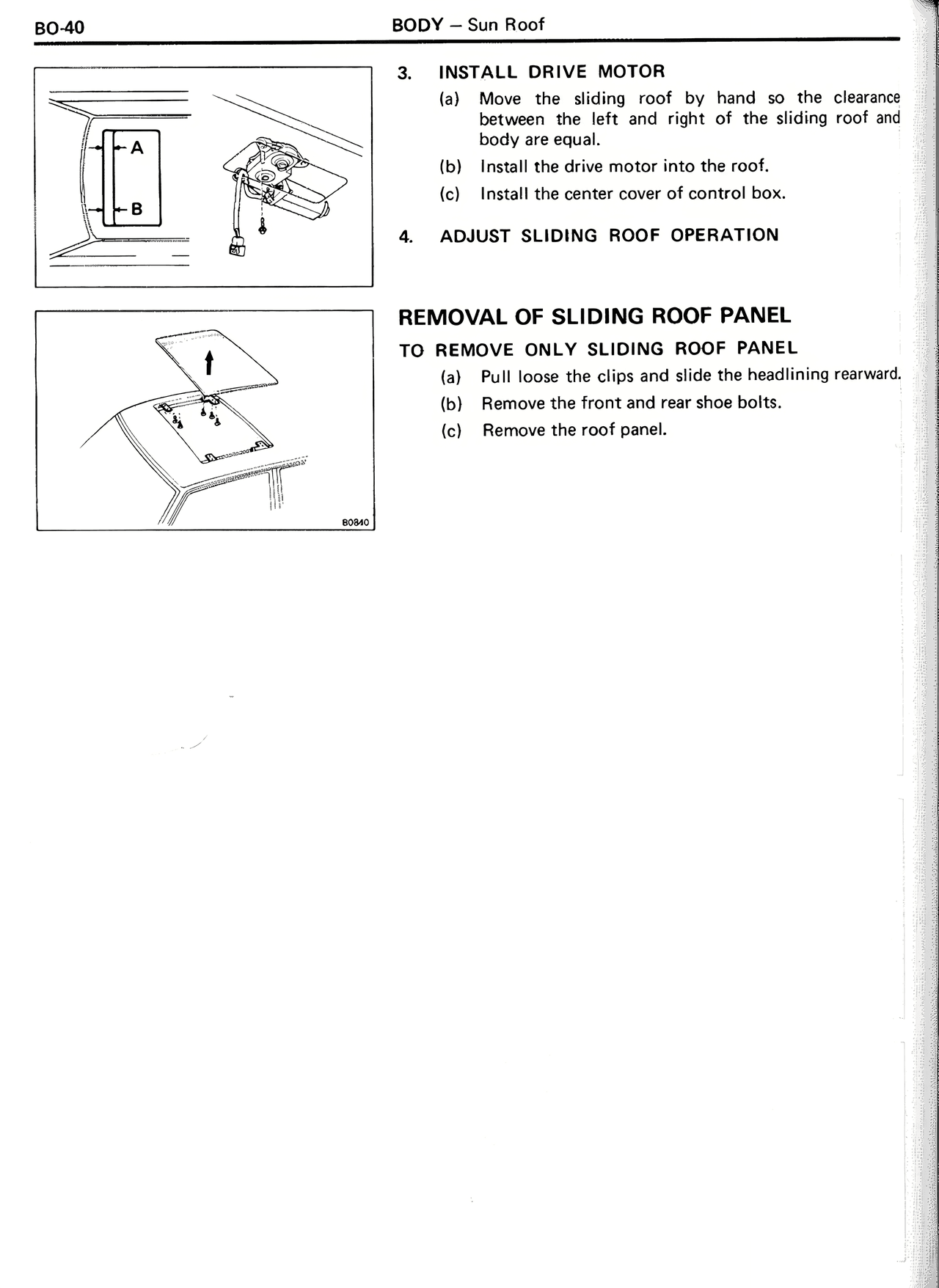

BO-40
BODY — Sun Roof
3. INSTALL DRIVE MOTOR
(a) Move the sliding roof by hand so the clearance between the left and right of the sliding roof and body are equal.
(b) Install the drive motor into the roof.
(c) Install the center cover of control box.
4. ADJUST SLIDING ROOF OPERATION
REMOVAL OF SLIDING ROOF PANEL
TO REMOVE ONLY SLIDING ROOF PANEL
(a) Pull loose the clips and slide the headlining rearward.
(b) Remove the front and rear shoe bolts.
(c) Remove the roof panel.
