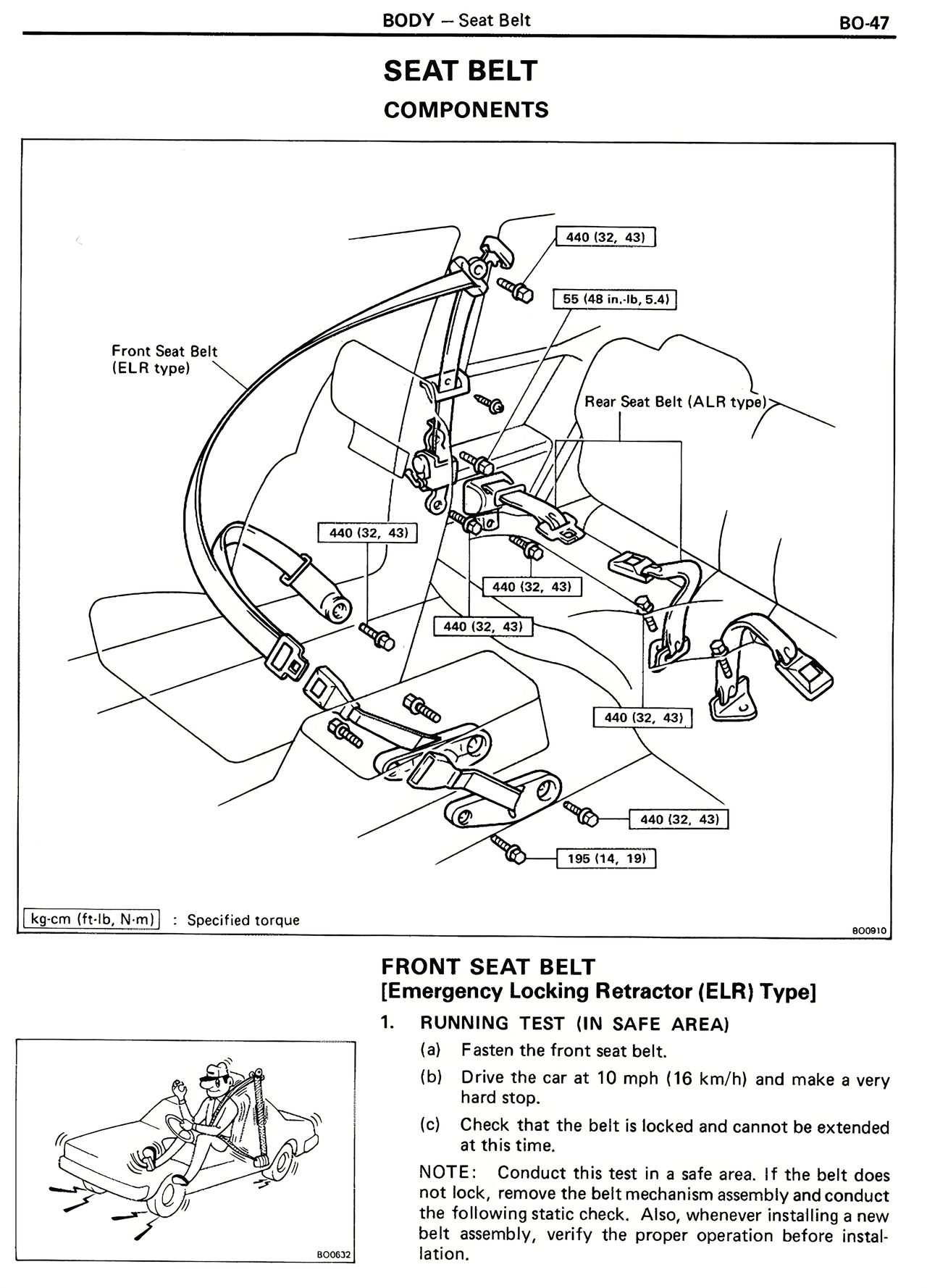

SEAT BELT
COMPONENTS
Front Seat Belt
(ELR type)
Rear Seat Belt (ALR type)
440 [32, 43]
66 [48 in.-lb, 5.4]
440 [32, 43]
440 [32, 43]
440 [32, 43]
440 [32, 43]
440 [32, 43]
196 [14, 19]
kg-cm [ft-lb, N·m] : Specified torque
BO0513
FRONT SEAT BELT
[Emergency Locking Retractor (ELR) Type]
1. RUNNING TEST (IN SAFE AREA)
(a) Fasten the front seat belt.
(b) Drive the car at 10 mph (16 km/h) and make a very hard stop.
(c) Check that the belt is locked and cannot be extended at this time.
NOTE: To conduct this test in a safe area. If the belt does not lock, remove the belt mechanism assembly and conduct the following static check. Also, whenever installing a new belt assembly, verify the proper operation and conduct lation.
BO0821
