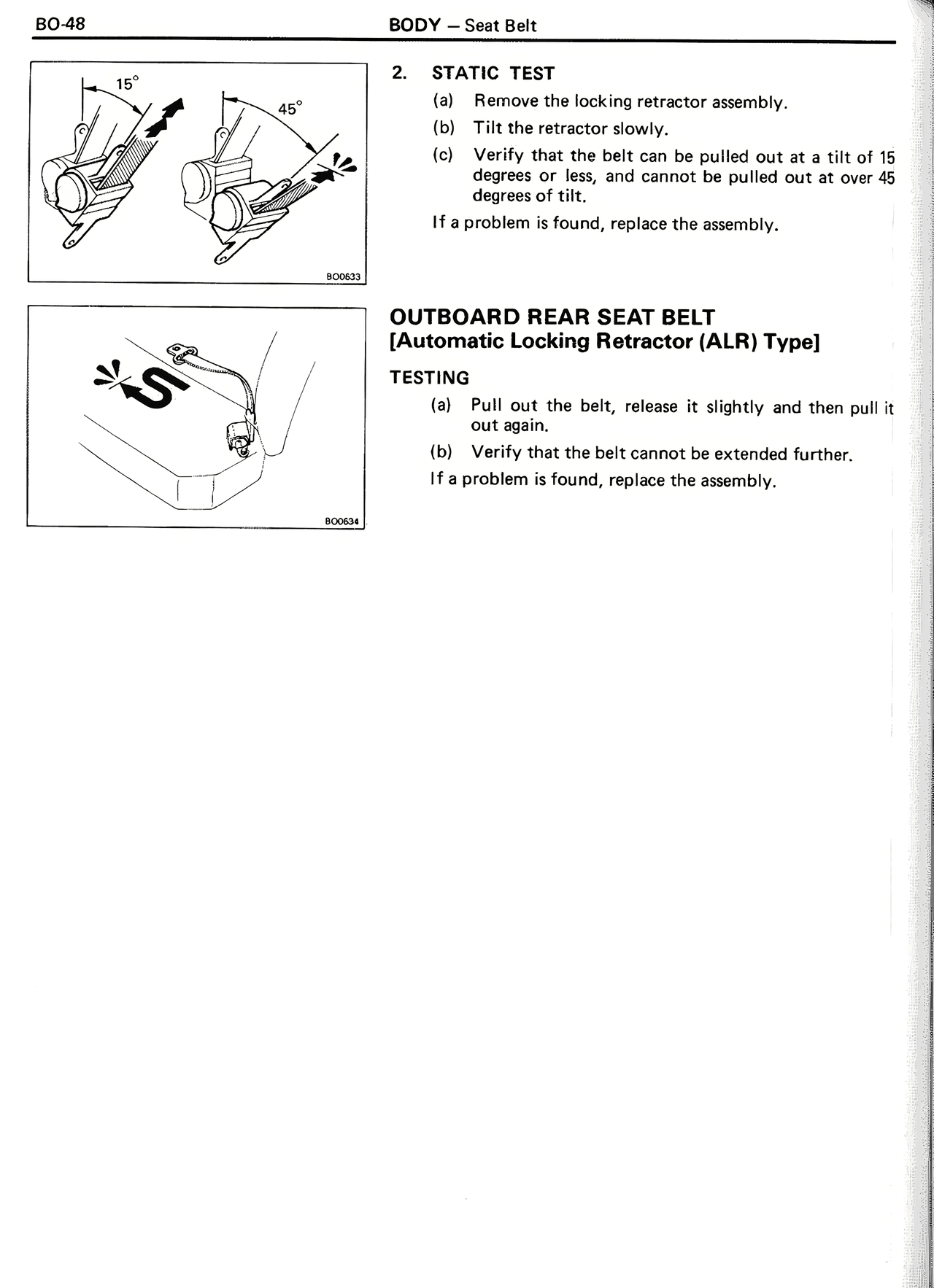

BODY — Seat Belt — MK2 Supra Body, page 48
100%
BO 48 BODY — Seat Belt 2. STATIC TEST (a) Remove the locking retractor assembly. (b) Tilt the retractor slowly. (c) Verify that the belt can be pulled out at a tilt of 15 degrees or less, and cannot be pulled out at over 45 degrees of tilt. If a problem is found, replace the assembly. OUTBOARD REAR SEAT BELT [Automatic Locking Retractor (ALR) Type] TESTING (a) Pull out the belt, release it slightly and then pull it out again. (b) Verify that the belt cannot be extended further. If a problem is found, replace the assembly.
