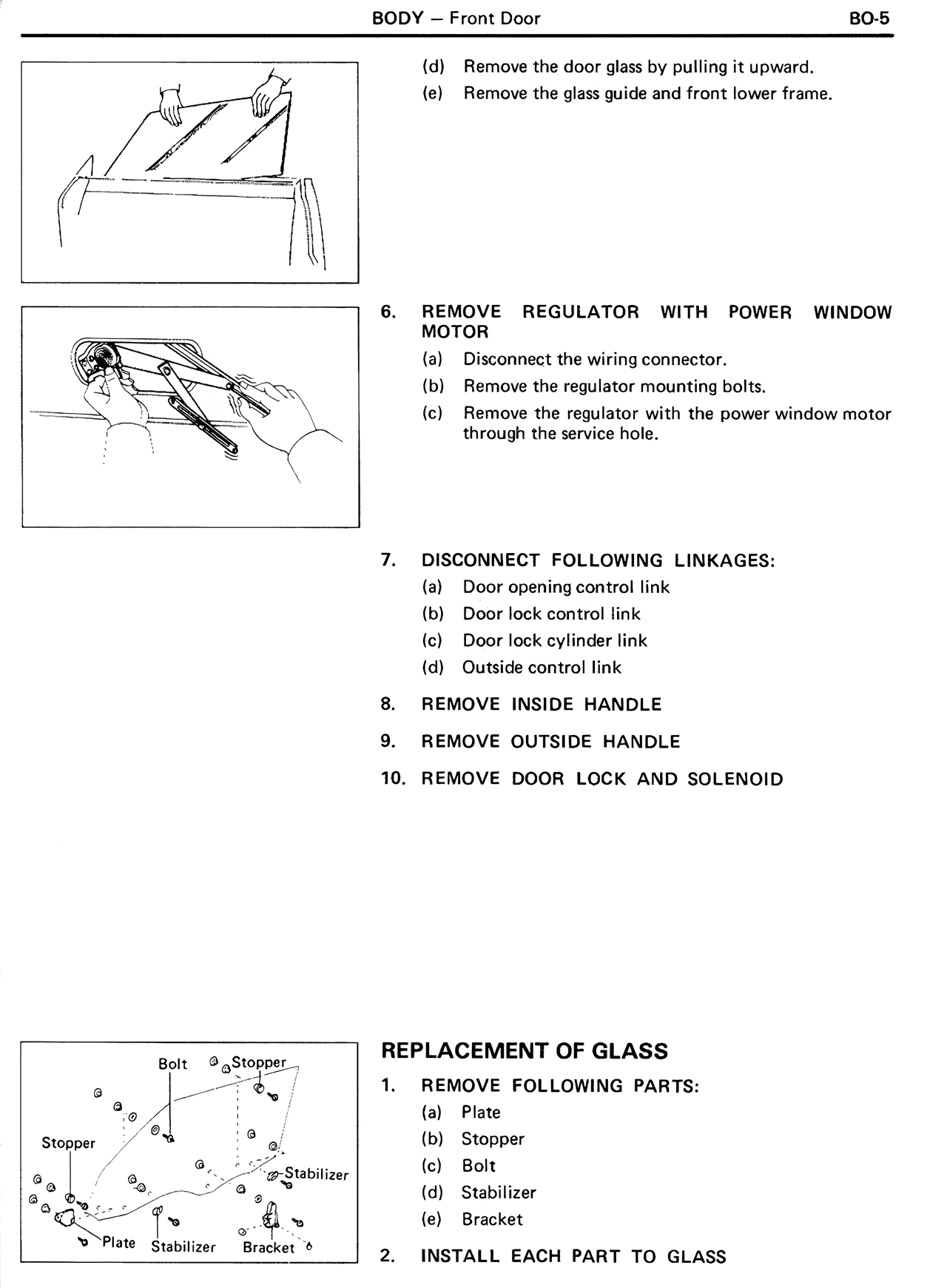

BO/Body, page 5

BODY — Front Door                                                                                                                    BO-5

(d)    Remove the door glass by pulling it upward.
(e)    Remove the glass guide and front lower frame.

6.    REMOVE REGULATOR WITH POWER WINDOW
      MOTOR
      (a)    Disconnect the wiring connector.
      (b)    Remove the regulator mounting bolts.
      (c)    Remove the regulator with the power window motor
             through the service hole.

7.    DISCONNECT FOLLOWING LINKAGES:
      (a)    Door opening control link
      (b)    Door lock control link
      (c)    Door lock cylinder link
      (d)    Outside control link

8.    REMOVE INSIDE HANDLE

9.    REMOVE OUTSIDE HANDLE

10.   REMOVE DOOR LOCK AND SOLENOID



REPLACEMENT OF GLASS

1.    REMOVE FOLLOWING PARTS:
      (a)    Plate
      (b)    Stopper
      (c)    Bolt
      (d)    Stabilizer
      (e)    Bracket

2.    INSTALL EACH PART TO GLASS
