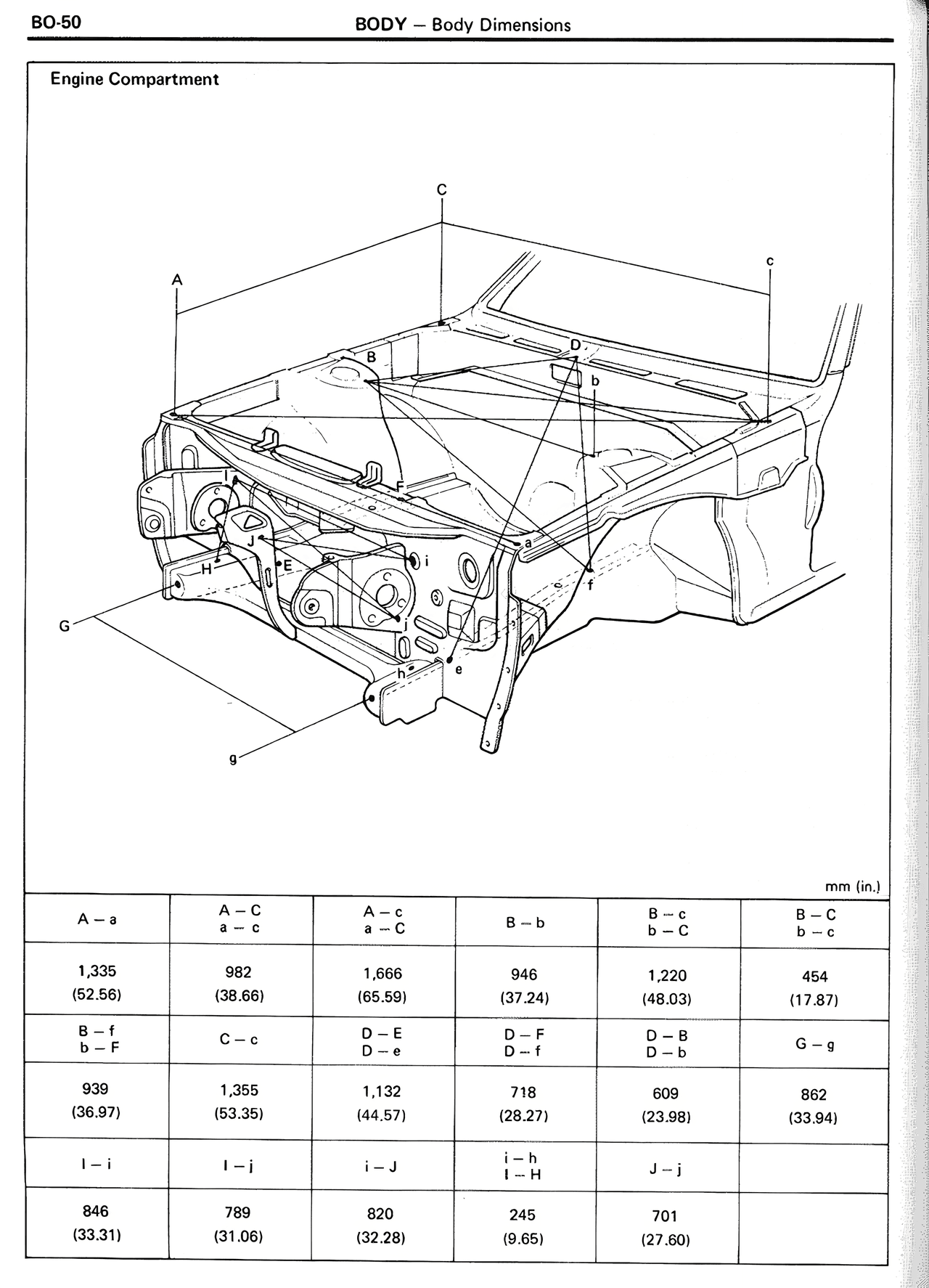

BO/Body — Engine Compartment, page 50

BO-50

BODY — Body Dimensions

Engine Compartment

[Diagram labels from the technical illustration:]
A
B
C
D
b
c
e
F
G
g
H
I
i
J
j
h

mm (in.)

A — a
1,335
(52.56)

A — C
a — c
982
(38.66)

A — c
a — C
1,666
(65.59)

B — b
946
(37.24)

B — c
b — C
1,220
(48.03)

B — C
b — c
454
(17.87)

B — f
b — F
939
(36.97)

C — c
1,355
(53.35)

D — E
D — e
1,132
(44.57)

D — F
D — f
718
(28.27)

D — B
D — b
609
(23.98)

G — g
862
(33.94)

I — i
846
(33.31)

I — j
789
(31.06)

I — J
820
(32.28)

I — h
I — H
245
(9.65)

J — j
701
(27.60)
