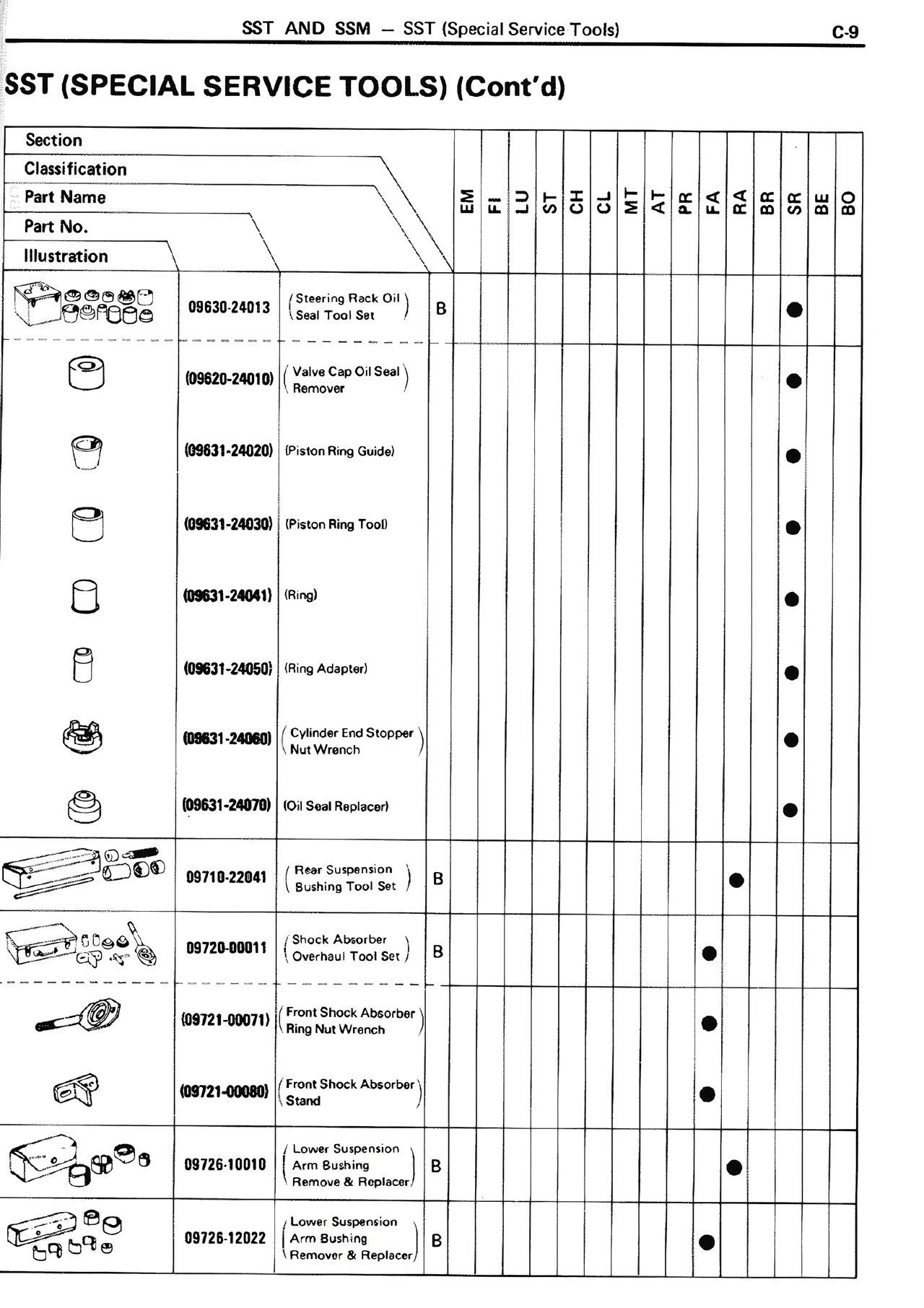

SST (SPECIAL SERVICE TOOLS) (Cont'd)
Section
Classification
Part Name
Part No.
Illustration
EM FU LJ ST HI CL MT AT FR FA SA BR SB SE BO
09630-24013 | (Steering Rack Oil Seal Tool Set | B | | | | | | | | | | | | | ● |
09820-24010 | (Valve Cap Oil Seal Remover | | | | | | | | | | | | | | ● |
09631-24020 | (Piston Ring Guide) | | | | | | | | | | | | | | ● |
09631-24030 | (Piston Ring Tool) | | | | | | | | | | | | | | ● |
09631-24041 | (Ring) | | | | | | | | | | | | | | ● |
09631-24050 | (Ring Adapter) | | | | | | | | | | | | | | ● |
09631-24060 | (Cylinder End Stopper Nut Wrench | | | | | | | | | | | | | | ● |
09631-24070 | (Oil Seal Replacer) | | | | | | | | | | | | | | ● |
09718-22841 | (Rear Suspension Bushing Tool Set | B | | | | | | | | ● | | | | |
09728-00011 | (Shock Absorber Overhaul Tool Set | B | | | | | | | ● | | | | | |
09721-00071 | (Front Shock Absorber Ring Nut Wrench | | | | | | | | ● | | | | | |
09721-00080 | (Front Shock Absorber Stand | | | | | | | | ● | | | | | |
09726-10010 | (Lower Suspension Arm Bushing Remove & Replace) | B | | | | | | | ● | | | | | |
09726-12022 | (Lower Suspension Arm Bushing Remover & Replacer | B | | | | | | | ● | | | | | |
