CL-8                                    CLUTCH -- Clutch Unit

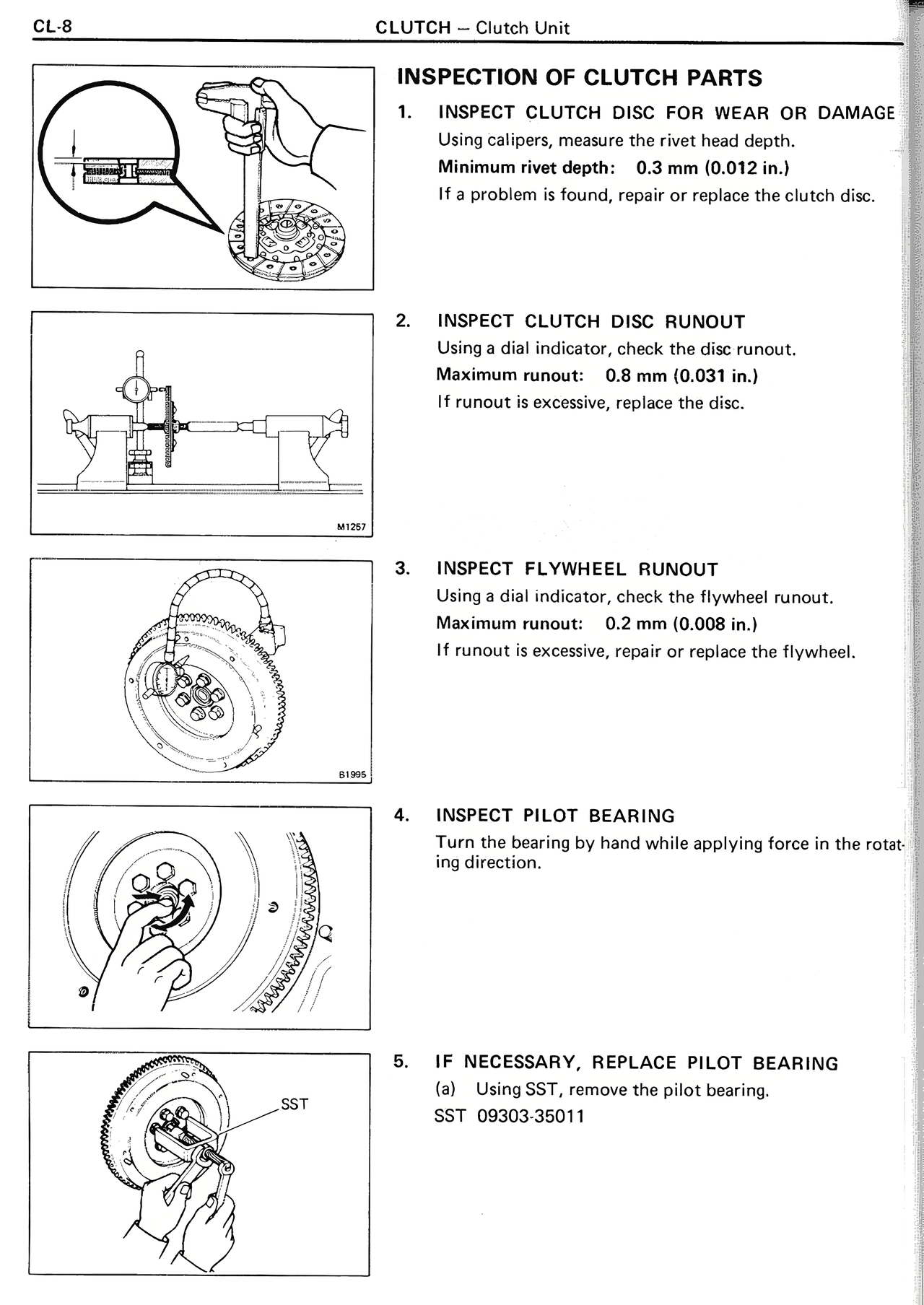

INSPECTION OF CLUTCH PARTS

1.    INSPECT CLUTCH DISC FOR WEAR OR DAMAGE
      Using calipers, measure the rivet head depth.
      Minimum rivet depth:   0.3 mm (0.012 in.)
      If a problem is found, repair or replace the clutch disc.

2.    INSPECT CLUTCH DISC RUNOUT
      Using a dial indicator, check the disc runout.
      Maximum runout:   0.8 mm (0.031 in.)
      If runout is excessive, replace the disc.

3.    INSPECT FLYWHEEL RUNOUT
      Using a dial indicator, check the flywheel runout.
      Maximum runout:   0.2 mm (0.008 in.)
      If runout is excessive, repair or replace the flywheel.

4.    INSPECT PILOT BEARING
      Turn the bearing by hand while applying force in the rotat-
      ing direction.

5.    IF NECESSARY, REPLACE PILOT BEARING
      (a)  Using SST, remove the pilot bearing.
      SST 09303-35011
