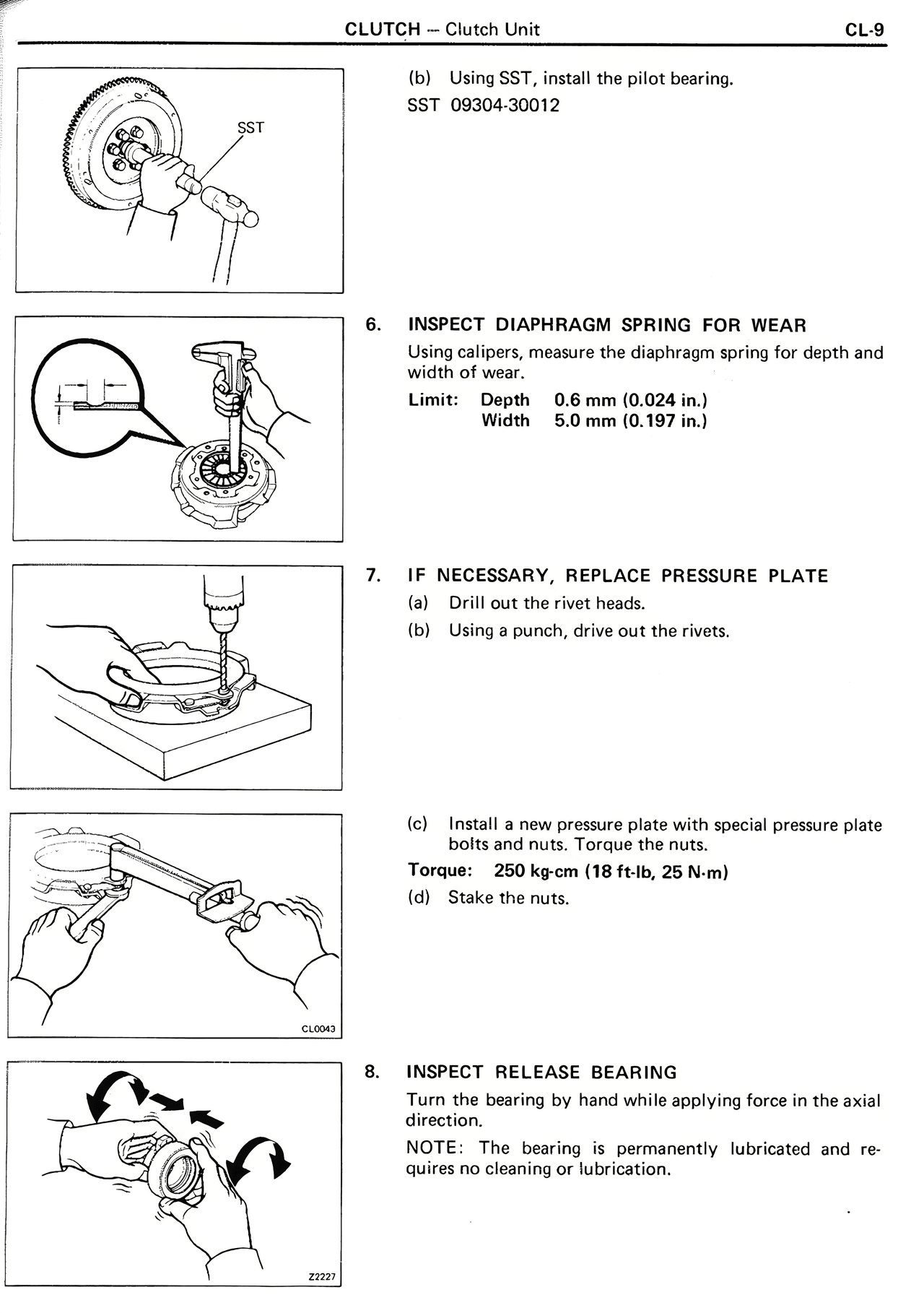

(b) Using SST, install the pilot bearing.
SST 09304-30012
6. INSPECT DIAPHRAGM SPRING FOR WEAR
Using calipers, measure the diaphragm spring for depth and width of wear.
Limit: Depth 0.6 mm (0.024 in.)
Width 5.0 mm (0.197 in.)
7. IF NECESSARY, REPLACE PRESSURE PLATE
(a) Drill out the rivet heads.
(b) Using a punch, drive out the rivets.
(c) Install a new pressure plate with special pressure plate bolts and nuts. Torque the nuts.
Torque: 250 kg·cm (18 ft·lb, 25 N·m)
(d) Stake the nuts.
8. INSPECT RELEASE BEARING
Turn the bearing by hand while applying force in the axial direction.
NOTE: The bearing is permanently lubricated and requires no cleaning or lubrication.
