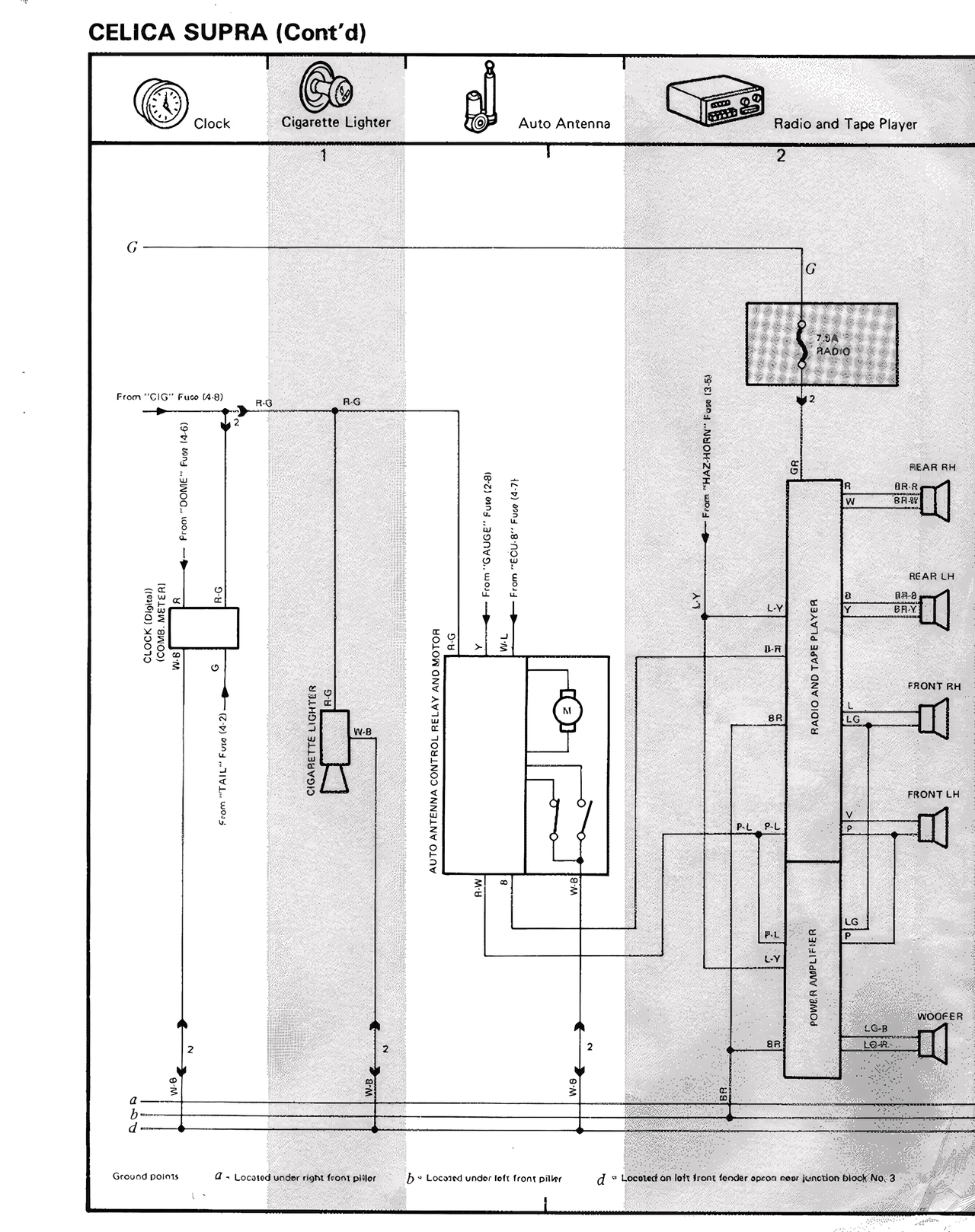

E/Electrical Wiring Diagrams — Celica Supra (Cont'd), page 19

CELICA SUPRA (Cont'd)

Clock    Cigarette Lighter    Auto Antenna    Radio and Tape Player
1                                                                   2

From "C/O" Fuse (4.5B)
R-G    R-G

DOOR COURTESY
SWITCH (LH)

Front
Door
Fuse

COURTESY LIGHTS

CHARACTER ILLUMINATION LIGHT (R/C)
(P/CK Paint R/T)

RADIO

FRONT SPEAKER FADER SWITCH

RR RH
F L

REAR LH
R-L    RR-L

FRONT RH
R-L    R-L

FRONT LH
R-L    R-L

ROOM LAMP FADER

WOOFER
L/O-B
L/O-B

Ground points    d - Located under right front pillar    b - Located under left front pillar    d - Updated on left front fender apron near junction block No. 3
