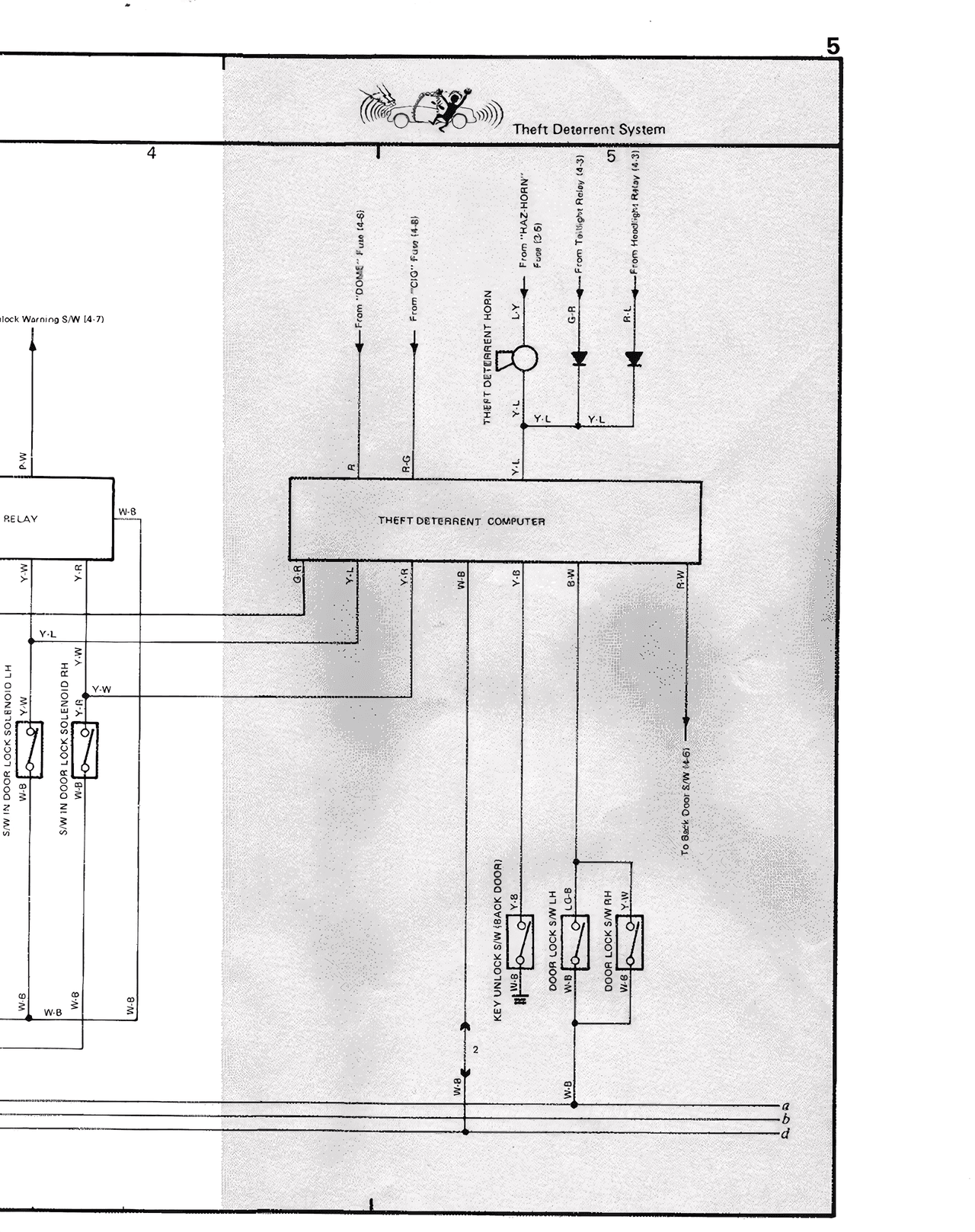

E/Electrical Wiring Diagrams, page 21

Theft Deterrent System

5

4

ock Warning S.W (4-7)

RELAY

Y-L

Door Lock Warning S.W - From DOOR - Lock set 6

From "IGI" - Lock set 5

THEFT DETERRENT COMPUTER

THEFT DETERRENT HORN

DOOR LOCK WARNING S.W
Front L.H.

B

B

DOOR LOCK WARNING S.W
Rear L.H.

DOOR LOCK WARNING S.W
Rear R.H.

C.R. From Tail Light Relay R.H.
From Tail Light Relay L.H.

From "EFI" Signal Module
From "ECT" Signal Module

Y-L

Y-L

B

Y-W

To the Blink Relay R.H.

4
5
