← p.007
E
/
Electrical Wiring Diagrams
8 / 21
p.009 →
−
100%
+

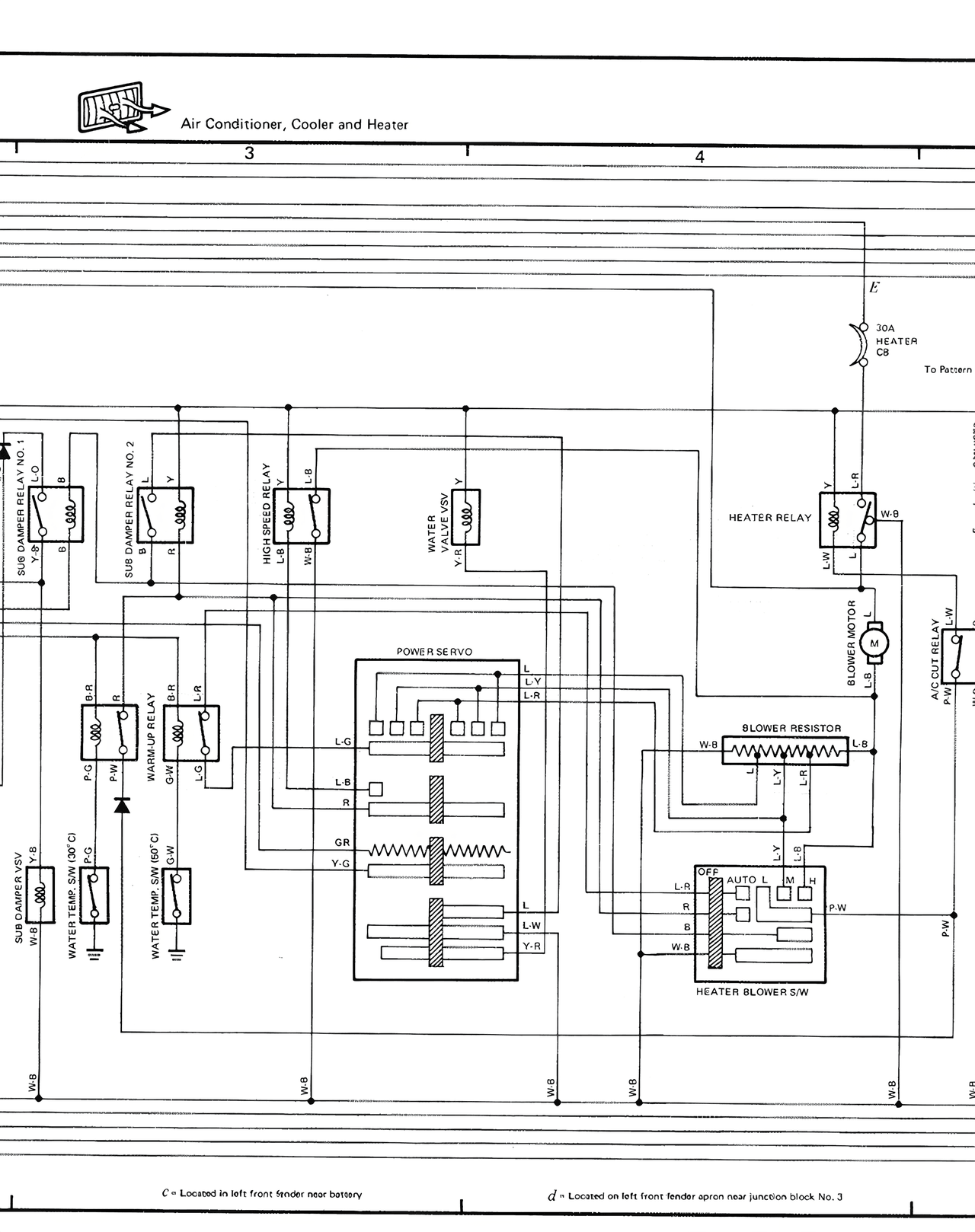

Air Conditioner, Cooler and Heater 3 4 To Return 30A FUSIBLE LINK OB HEATER RELAY BLOWER RESISTOR POWER 1st SERVO HEATER BLOWER S/W C = Located in MFL fuse/I fender near battery d = Located on left front fender apron near junction block No. 3
