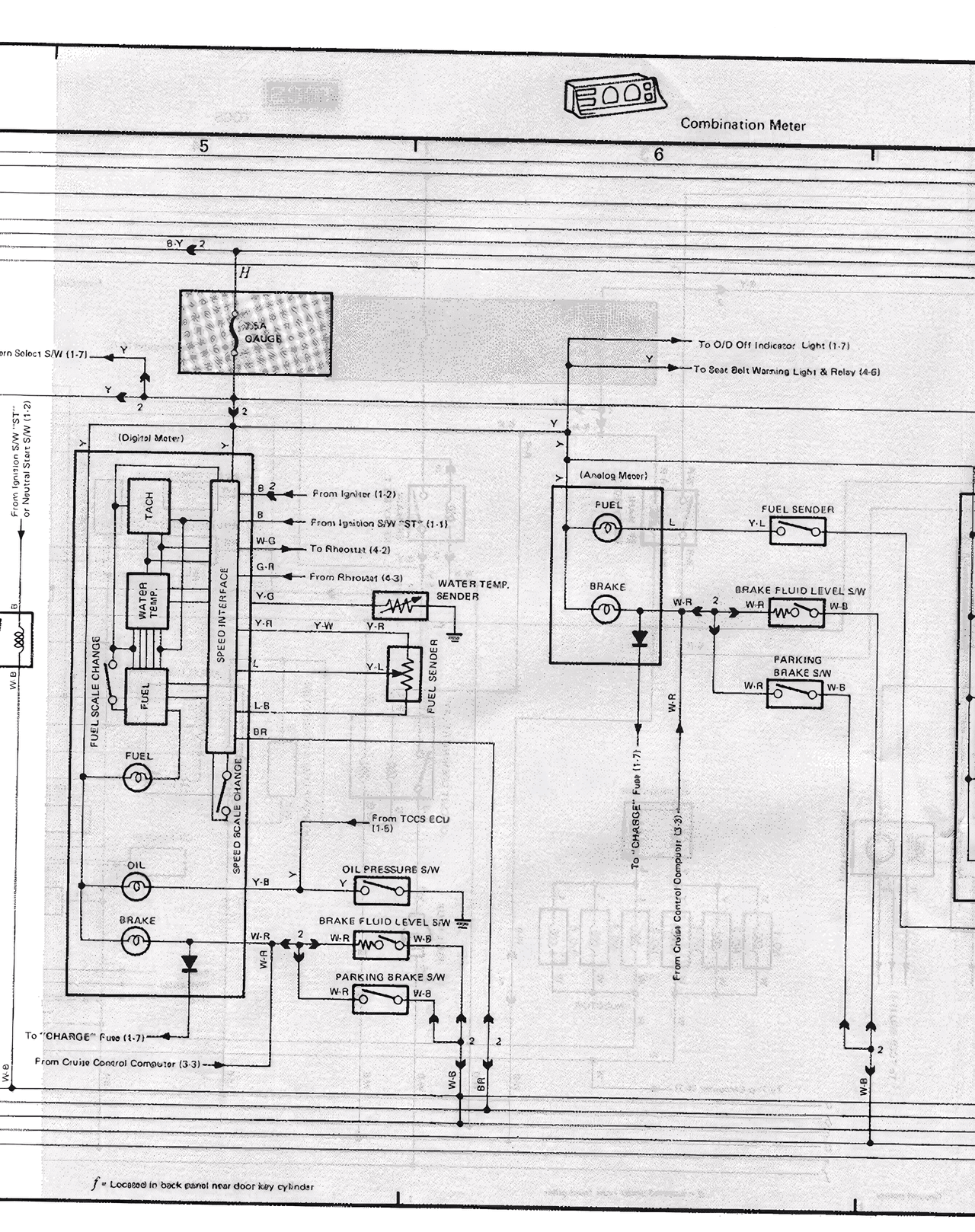

Combination Meter
5
6
E2
W
J/J
GREEN
To DIG Off Indicator Light (1-7)
To Star Belt Warning Light & Relay (4-6)
(Digital Meter)
From Igniter (1-2)
From Ignition SW "ST" (1-1)
G-B
B.O.G
From Rheostat (4-5)
WATER TEMP
SENSOR
Y-G
Y-B
BRAKE
FUEL SENDER
Y-L
BRAKE FLUID LEVEL S/W
B/R
W.B
Y-W
Y-L
PARKING
BRAKE S/W
BR
W.B
W.B
BR
From TCOS ECU
GLOW
From TCOS ECU
OIL PRESSURE S/W
FUEL
Y-B
BRAKE FLUID LEVEL S/W
B.R
Y-L
PARKING BRAKE
S/W
W.B
W.B
To "CHARGE" Fuse (1-1)
From Cruise Control Computer (3-1)
2
2
f = Located in back panel near door key cylinder.
