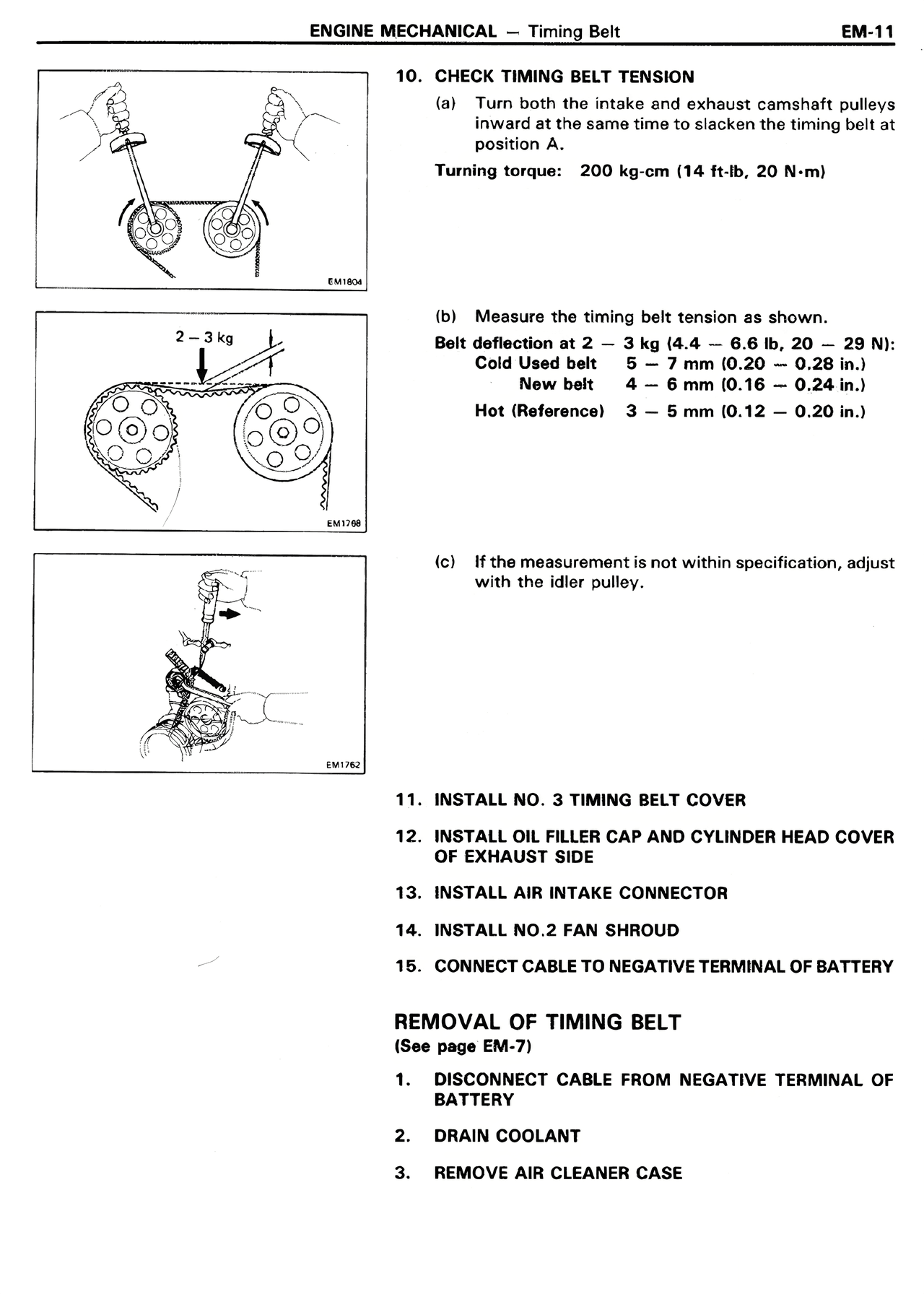

10. CHECK TIMING BELT TENSION
(a) Turn both the intake and exhaust camshaft pulleys inward at the same time to slacken the timing belt at position A.
Turning torque: 200 kg·cm (14 ft·lb, 20 N·m)
(b) Measure the timing belt tension as shown.
Belt deflection at 2 — 3 kg (4.4 — 6.6 lb, 20 — 29 N):
Cold Used belt 5 — 7 mm (0.20 — 0.28 in.)
New belt 4 — 6 mm (0.16 — 0.24 in.)
Hot (Reference) 3 — 5 mm (0.12 — 0.20 in.)
(c) If the measurement is not within specification, adjust with the idler pulley.
11. INSTALL NO. 3 TIMING BELT COVER
12. INSTALL OIL FILLER CAP AND CYLINDER HEAD COVER OF EXHAUST SIDE
13. INSTALL AIR INTAKE CONNECTOR
14. INSTALL NO.2 FAN SHROUD
15. CONNECT CABLE TO NEGATIVE TERMINAL OF BATTERY
REMOVAL OF TIMING BELT
(See page EM-7)
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
2. DRAIN COOLANT
3. REMOVE AIR CLEANER CASE
