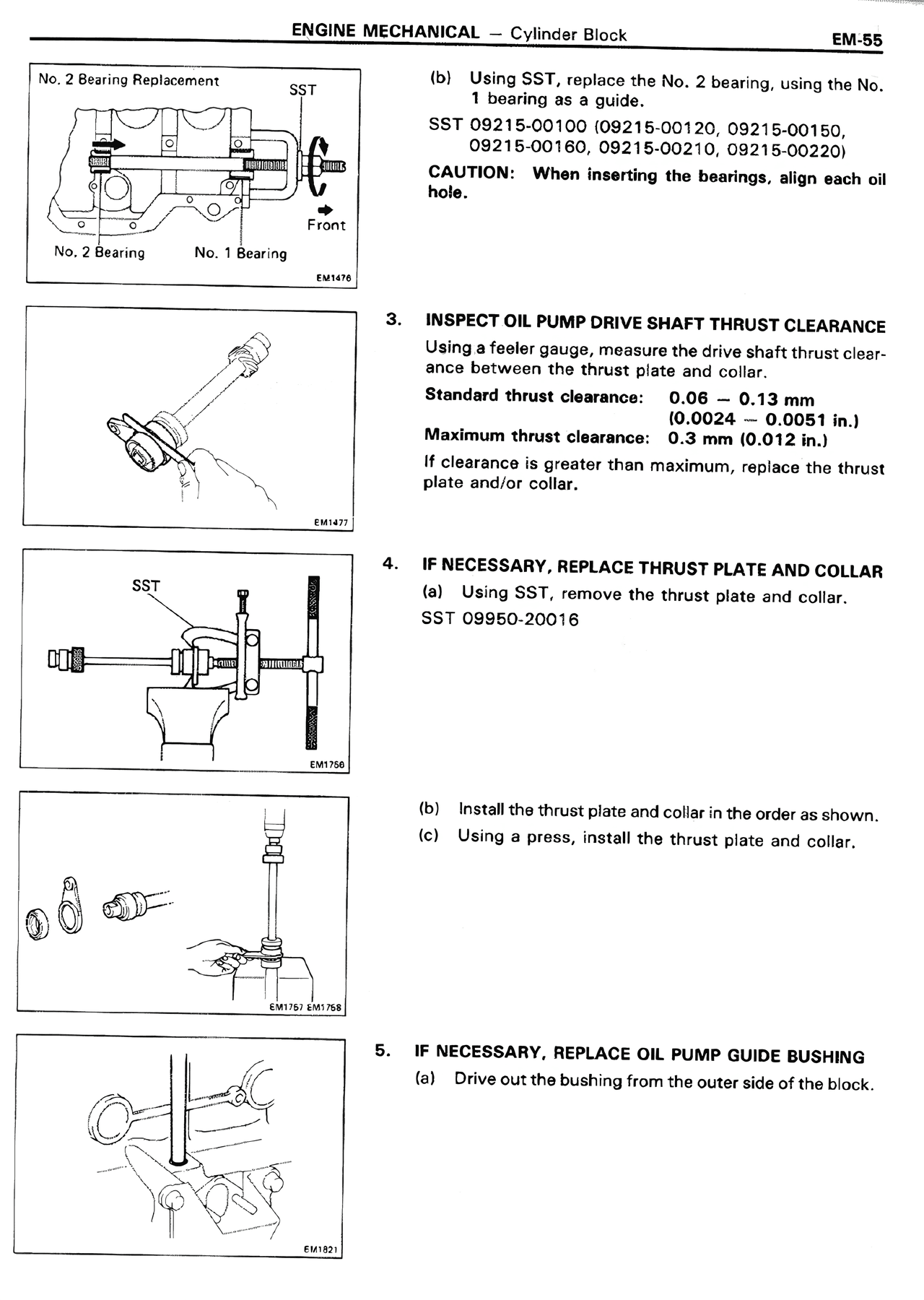

No. 2 Bearing Replacement
SST
Front
No. 2 Bearing No. 1 Bearing
EM1576
EM1477
SST
EM1792
EM1793, EM1788
EM1821
(b) Using SST, replace the No. 2 bearing, using the No. 1 bearing as a guide.
SST 09215-00100 (09216-00120, 09215-00150, 09216-00160, 09216-00210, 09215-00220)
CAUTION: When inserting the bearings, align each oil hole.
3. INSPECT OIL PUMP DRIVE SHAFT THRUST CLEARANCE
Using a feeler gauge, measure the drive shaft thrust clearance between the thrust plate and collar.
Standard thrust clearance: 0.06 — 0.13 mm
(0.0024 — 0.0051 in.)
Maximum thrust clearance: 0.3 mm (0.012 in.)
If clearance is greater than maximum, replace the thrust plate and/or collar.
4. IF NECESSARY, REPLACE THRUST PLATE AND COLLAR
(a) Using SST, remove the thrust plate and collar.
SST 09950-20016
(b) Install the thrust plate and collar in the order as shown.
(c) Using a press, install the thrust plate and collar.
5. IF NECESSARY, REPLACE OIL PUMP GUIDE BUSHING
(a) Drive out the bushing from the outer side of the block.
