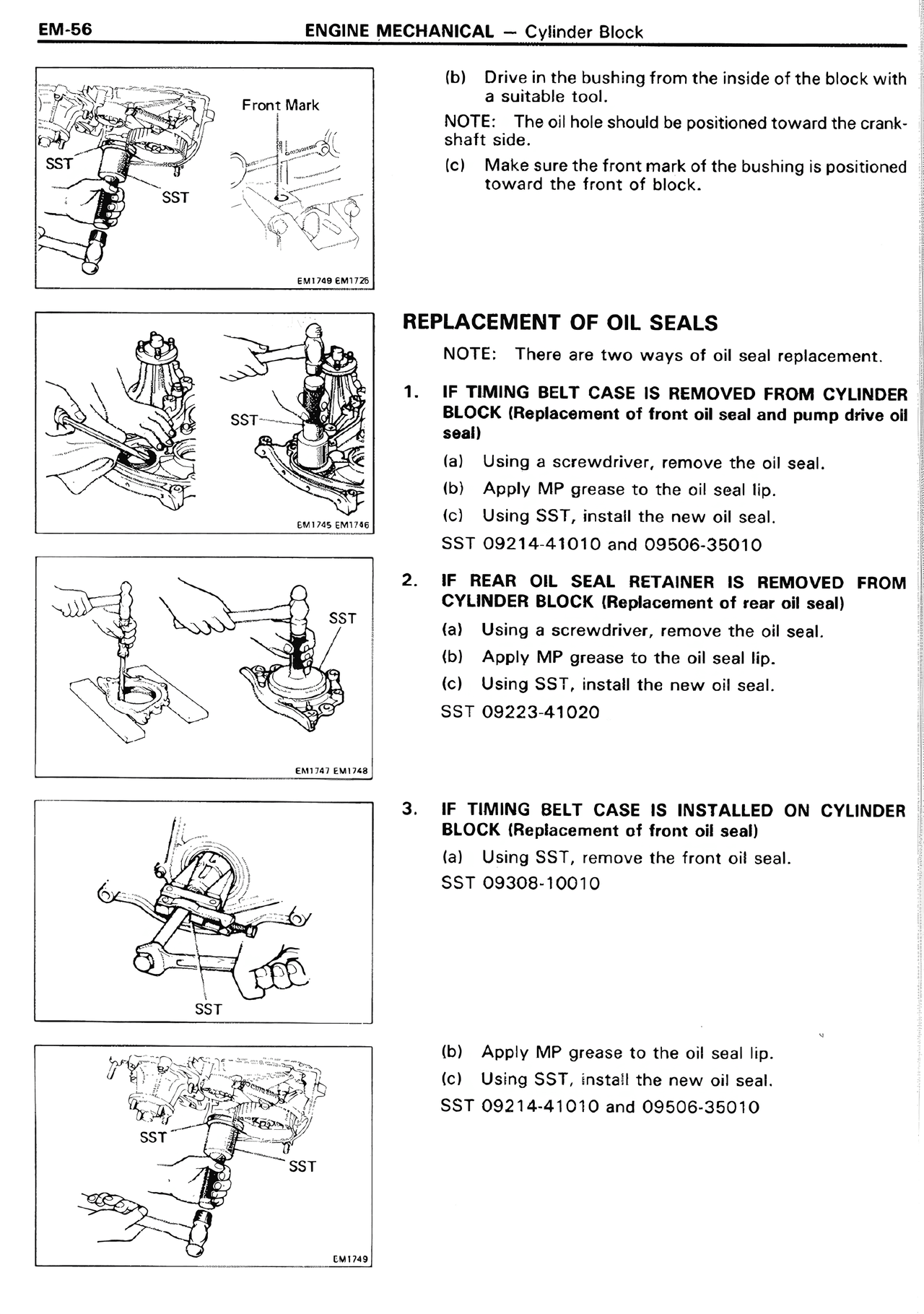

EM/Engine Mechanical, page 56

EM-66

ENGINE MECHANICAL — Cylinder Block

Front Mark

SST

SST

E4M1108.EM1720

(b) Drive in the bushing from the inside of the block with a suitable tool.
NOTE: The oil hole should be positioned toward the crankshaft side.
(c) Make sure the front mark of the bushing is positioned toward the front of block.

REPLACEMENT OF OIL SEALS

NOTE: There are two ways of oil seal replacement.

1. IF TIMING BELT CASE IS REMOVED FROM CYLINDER BLOCK (Replacement of front oil seal and pump drive oil seal)

(a) Using a screwdriver, remove the oil seal.
(b) Apply MP grease to the oil seal lip.
(c) Using SST, install the new oil seal.
SST 09214-41010 and 09506-35010

2. IF REAR OIL SEAL RETAINER IS REMOVED FROM CYLINDER BLOCK (Replacement of rear oil seal)

(a) Using a screwdriver, remove the oil seal.
(b) Apply MP grease to the oil seal lip.
(c) Using SST, install the new oil seal.
SST 09223-41020

3. IF TIMING BELT CASE IS INSTALLED ON CYLINDER BLOCK (Replacement of front oil seal)

(a) Using SST, remove the front oil seal.
SST 09308-10010

(b) Apply MP grease to the oil seal lip.
(c) Using SST, install the new oil seal.
SST 09214-41010 and 09506-35010

SST

E4M1105.EM1721

SST

E4M1107.EM1722

SST

SST

SST

E4M1244
