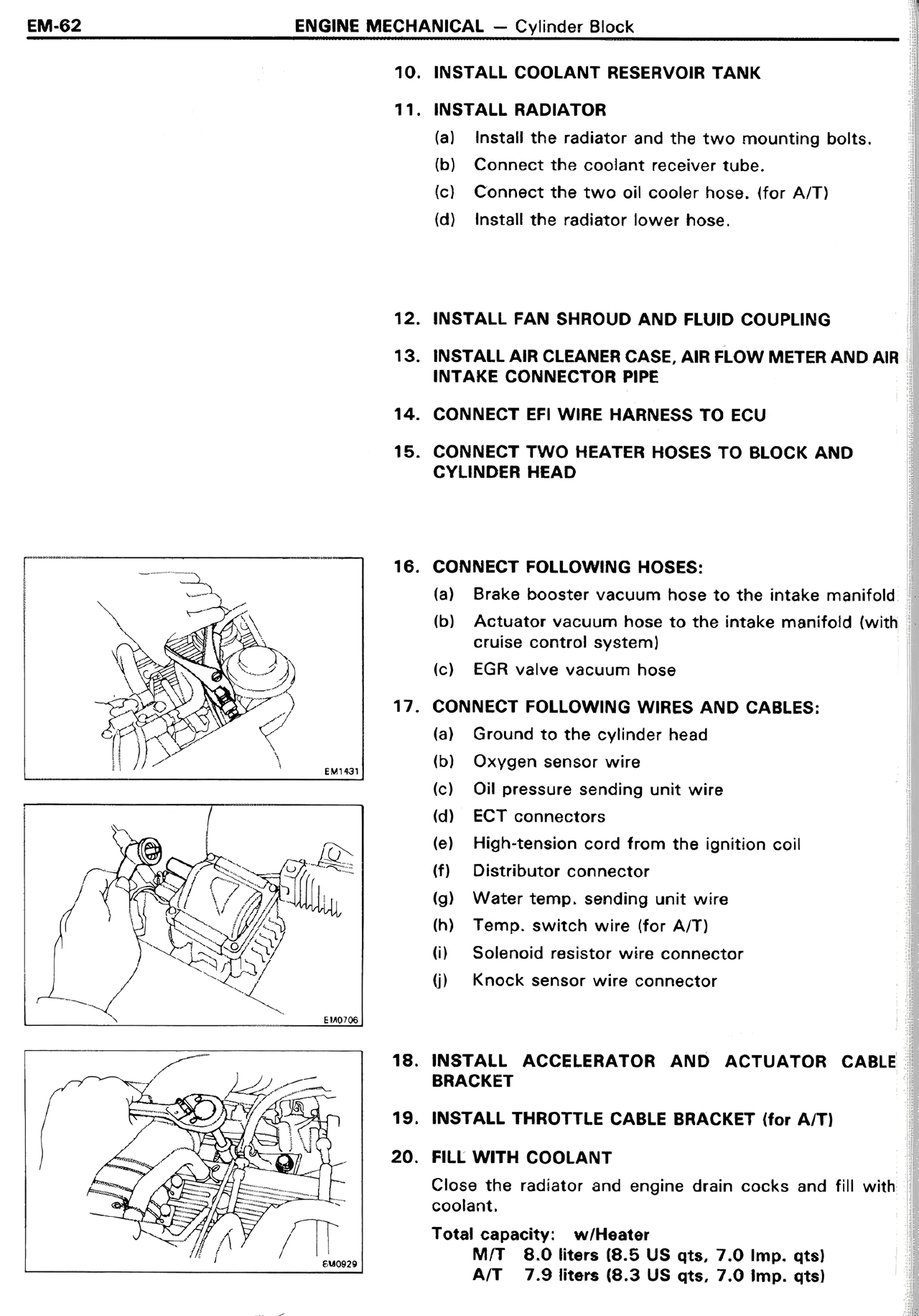

10. INSTALL COOLANT RESERVOIR TANK
11. INSTALL RADIATOR
(a) Install the radiator and the two mounting bolts.
(b) Connect the coolant receiver tube.
(c) Connect the two oil cooler hose. (for A/T)
(d) Install the radiator lower hose.
12. INSTALL FAN SHROUD AND FLUID COUPLING
13. INSTALL AIR CLEANER CASE, AIR FLOW METER AND AIR INTAKE CONNECTOR PIPE
14. CONNECT EFI WIRE HARNESS TO ECU
15. CONNECT TWO HEATER HOSES TO BLOCK AND CYLINDER HEAD
16. CONNECT FOLLOWING HOSES:
(a) Brake booster vacuum hose to the intake manifold
(b) Actuator vacuum hose to the intake manifold (with cruise control system)
(c) EGR valve vacuum hose
17. CONNECT FOLLOWING WIRES AND CABLES:
(a) Ground to the cylinder head
(b) Oxygen sensor wire
(c) Oil pressure sending unit wire
(d) ECT connectors
(e) High-tension cord from the ignition coil
(f) Distributor connector
(g) Water temp. sending unit wire
(h) Temp. switch wire (for A/T)
(i) Solenoid resistor wire connector
(j) Knock sensor wire connector
18. INSTALL ACCELERATOR AND ACTUATOR CABLE BRACKET
19. INSTALL THROTTLE CABLE BRACKET (for A/T)
20. FILL WITH COOLANT
Close the radiator and engine drain cocks and fill with coolant.
Total capacity: w/Heater
M/T 8.0 liters [8.5 US qts, 7.0 Imp. qts]
A/T 8.3 liters [8.3 US qts, 7.0 Imp. qts]
