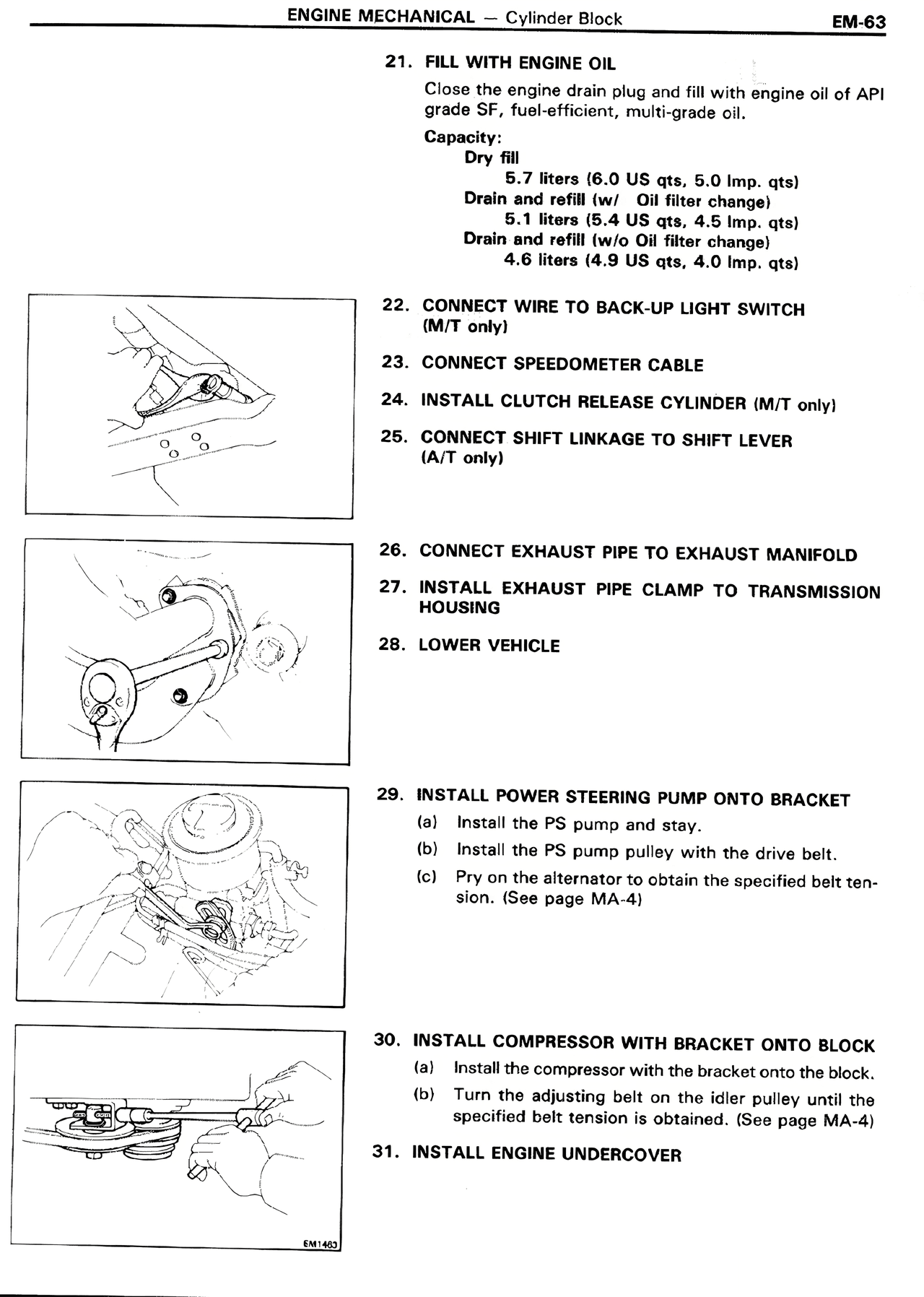

ENGINE MECHANICAL — Cylinder Block — MK2 Supra Engine Mechanical, page 63
100%
21. FILL WITH ENGINE OIL Close the engine drain plug and fill with engine oil of API grade SF, fuel-efficient, multi-grade oil. Capacity: Dry (w/) 6.7 liters (6.0 US qts, 5.0 Imp. qts) Drain and refill (w/ Oil filter change) 5.1 liters (5.4 US qts, 4.5 Imp. qts) Drain and refill (w/o Oil filter change) 4.6 liters (4.9 US qts, 4.0 Imp. qts) 22. CONNECT WIRE TO BACK-UP LIGHT SWITCH (M/T only) 23. CONNECT SPEEDOMETER CABLE 24. INSTALL CLUTCH RELEASE CYLINDER (M/T only) 25. CONNECT SHIFT LINKAGE TO SHIFT LEVER (A/T only) 26. CONNECT EXHAUST PIPE TO EXHAUST MANIFOLD 27. INSTALL EXHAUST PIPE CLAMP TO TRANSMISSION HOUSING 28. LOWER VEHICLE 29. INSTALL POWER STEERING PUMP ONTO BRACKET (a) Install the PS pump and stay. (b) Install the PS pump pulley with the drive belt. (c) Pry on the alternator to obtain the specified belt tension. (See page MA-4) 30. INSTALL COMPRESSOR WITH BRACKET ONTO BLOCK (a) Install the compressor with the bracket onto the block. (b) Turn the adjusting bolt on the idler pulley until the specified belt tension is obtained. (See page MA-4) 31. INSTALL ENGINE UNDERCOVER
