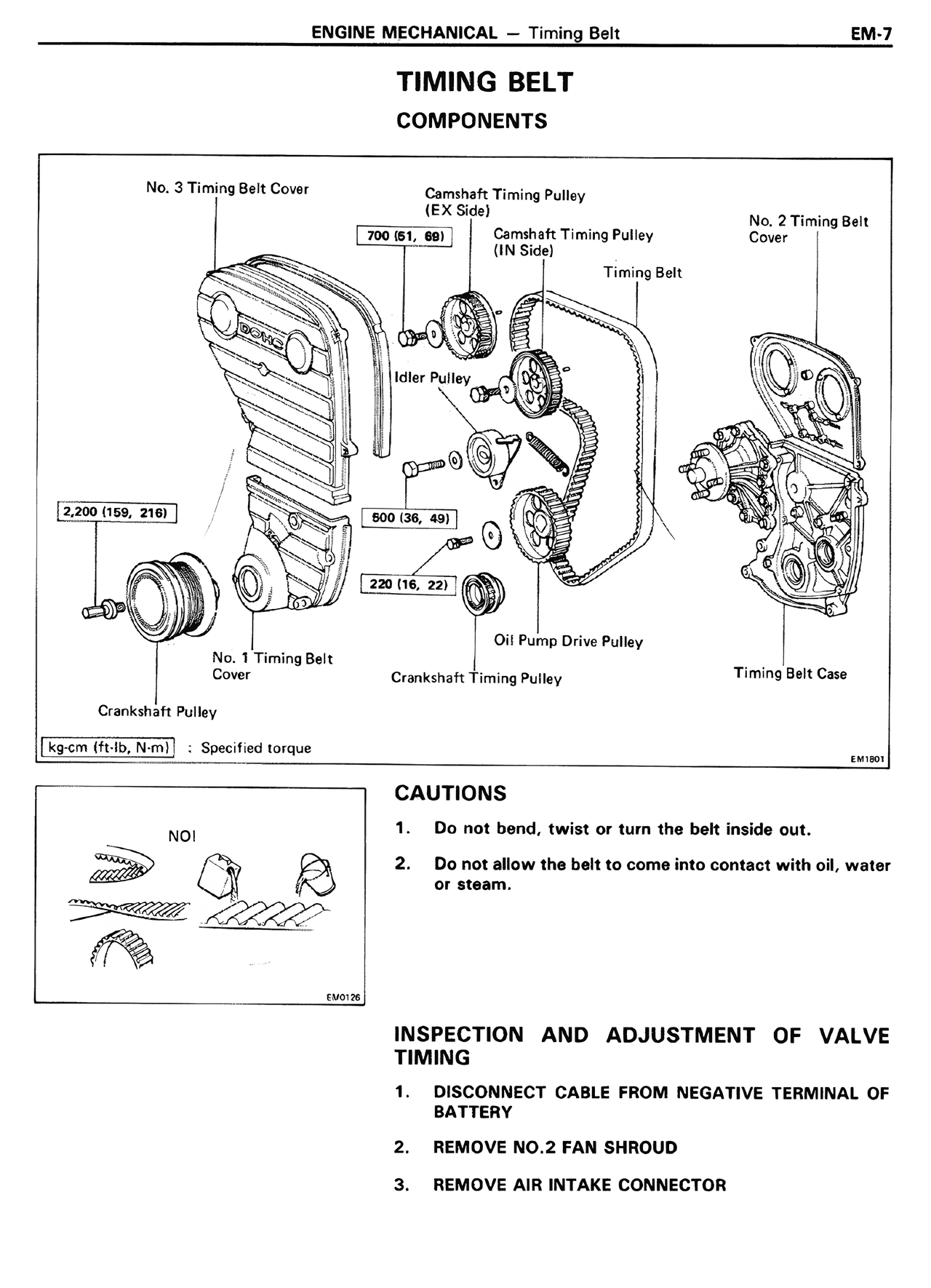

TIMING BELT
COMPONENTS
No. 3 Timing Belt Cover
Camshaft Timing Pulley (EX Side)
[700 (61, 68)]
Camshaft Timing Pulley (IN Side)
No. 2 Timing Belt Cover
Timing Belt
Idler Pulley
[500 (36, 49)]
[220 (16, 22)]
No. 1 Timing Belt Cover
Oil Pump Drive Pulley
Crankshaft Timing Pulley
Timing Belt Case
Crankshaft Pulley
[2,200 (159, 216)]
kg·cm (ft·lb, N·m) : Specified torque
EM1801
CAUTIONS
NO!
1. Do not bend, twist or turn the belt inside out.
2. Do not allow the belt to come into contact with oil, water or steam.
EM0126
INSPECTION AND ADJUSTMENT OF VALVE TIMING
1. DISCONNECT CABLE FROM NEGATIVE TERMINAL OF BATTERY
2. REMOVE NO.2 FAN SHROUD
3. REMOVE AIR INTAKE CONNECTOR
