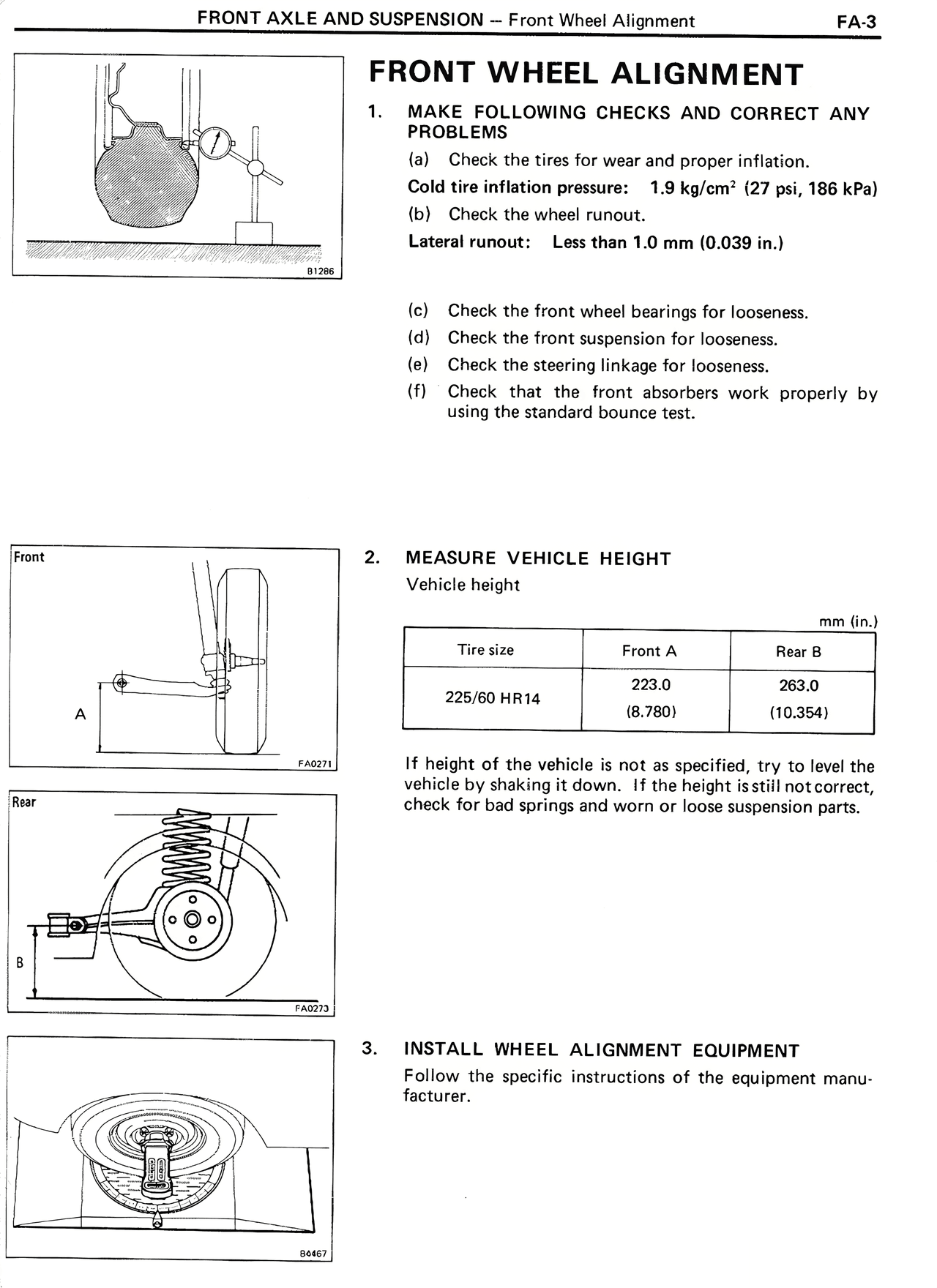

FRONT WHEEL ALIGNMENT 1. MAKE FOLLOWING CHECKS AND CORRECT ANY PROBLEMS (a) Check the tires for wear and proper inflation. Cold tire inflation pressure: 1.9 kg/cm² (27 psi, 186 kPa) (b) Check the wheel runout. Lateral runout: Less than 1.0 mm (0.039 in.) (c) Check the front wheel bearings for looseness. (d) Check the front suspension for looseness. (e) Check the steering linkage for looseness. (f) Check that the front absorbers work properly by using the standard bounce test. 2. MEASURE VEHICLE HEIGHT Vehicle height mm (in.) Tire size | Front A | Rear B 225/60 HR14 | 223.0 (8.780) | 263.0 (10.354) If height of the vehicle is not as specified, try to level the vehicle by shaking it down. If the height is still not correct, check for bad springs and worn or loose suspension parts. 3. INSTALL WHEEL ALIGNMENT EQUIPMENT Follow the specific instructions of the equipment manufacturer.
