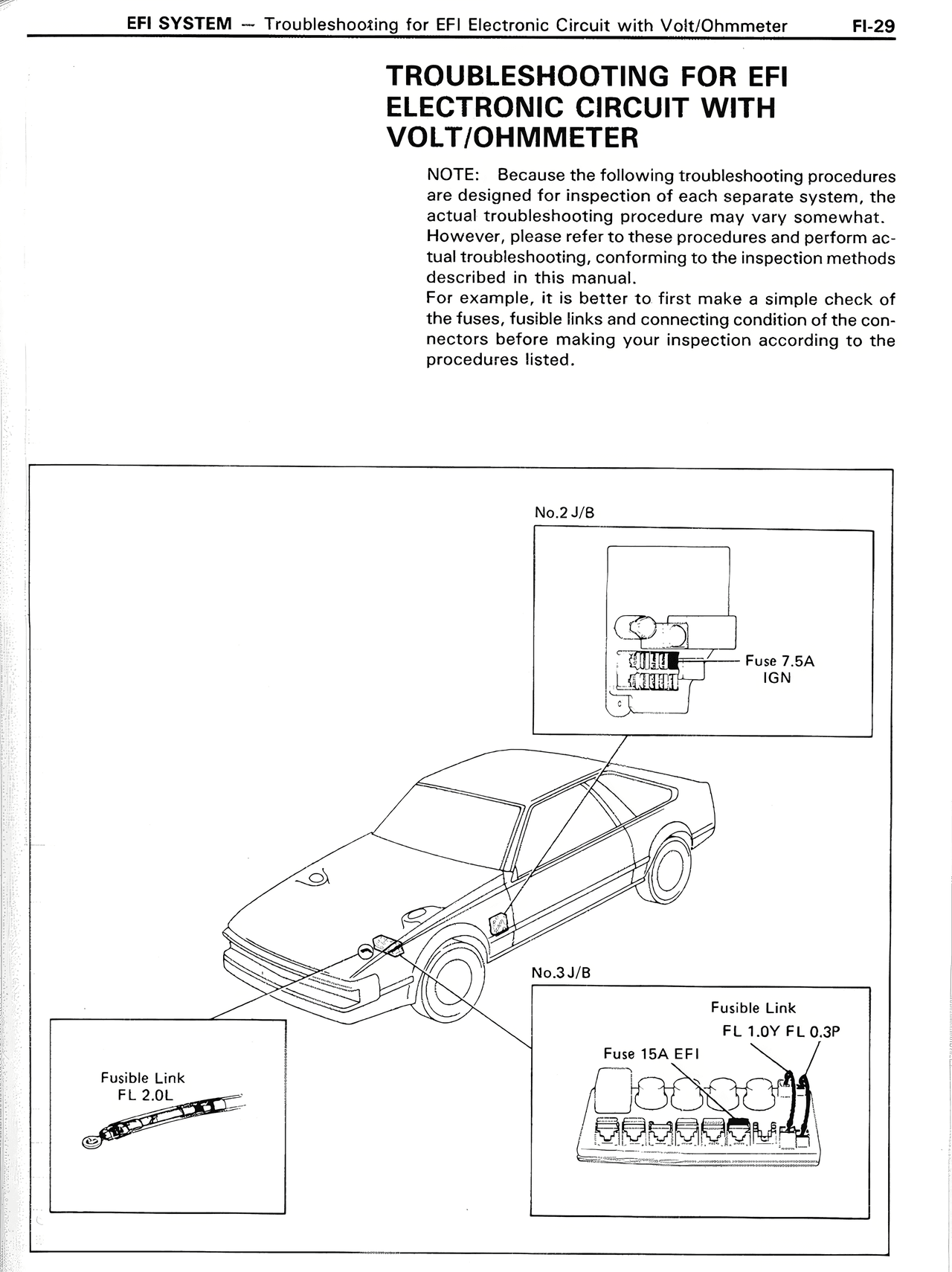

FI/EFI System — Troubleshooting for EFI Electronic Circuit with VOLT/OHMMETER, page 29

TROUBLESHOOTING FOR EFI
ELECTRONIC CIRCUIT WITH
VOLT/OHMMETER

NOTE: Because the following troubleshooting procedures
are designed for inspection of each separate system, the
actual troubleshooting procedure may vary somewhat.
However, please refer to these procedures and perform actual troubleshooting, conforming to the inspection methods
described in this manual.
For example, it is better to first make a simple check of
the fuses, fusible links and connecting condition of the connectors before making your inspection according to the
procedures listed.

No.2 J/B

Fuse 7.5A
IGN

No.3 J/B

Fusible Link
FL 1.0Y FL 0.3P
Fuse 15A EFI

Fusible Link
FL 2.0L
