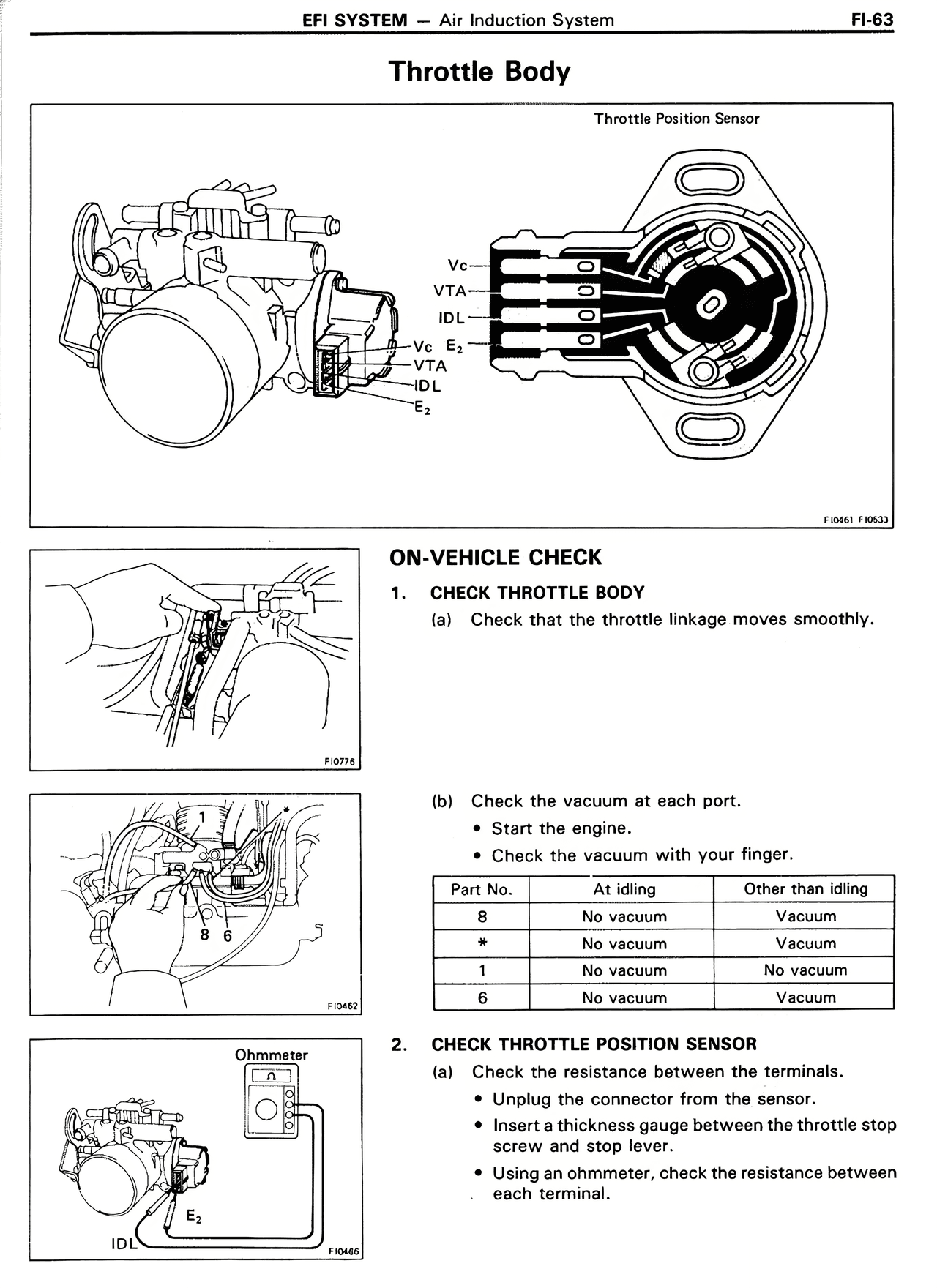

Throttle Body
Throttle Position Sensor
Vc
VTA
IDL
Vc E2
VTA
IDL
E2
F10461 F10233
ON-VEHICLE CHECK
1. CHECK THROTTLE BODY
(a) Check that the throttle linkage moves smoothly.
F10775
(b) Check the vacuum at each port.
• Start the engine.
• Check the vacuum with your finger.
Part No. | At idling | Other than idling
8 | No vacuum | Vacuum
* | No vacuum | Vacuum
1 | No vacuum | No vacuum
6 | No vacuum | Vacuum
F-0483
2. CHECK THROTTLE POSITION SENSOR
(a) Check the resistance between the terminals.
• Unplug the connector from the sensor.
• Insert a thickness gauge between the throttle stop screw and stop lever.
• Using an ohmmeter, check the resistance between each terminal.
Ohmmeter
E2
IDL
F10468
