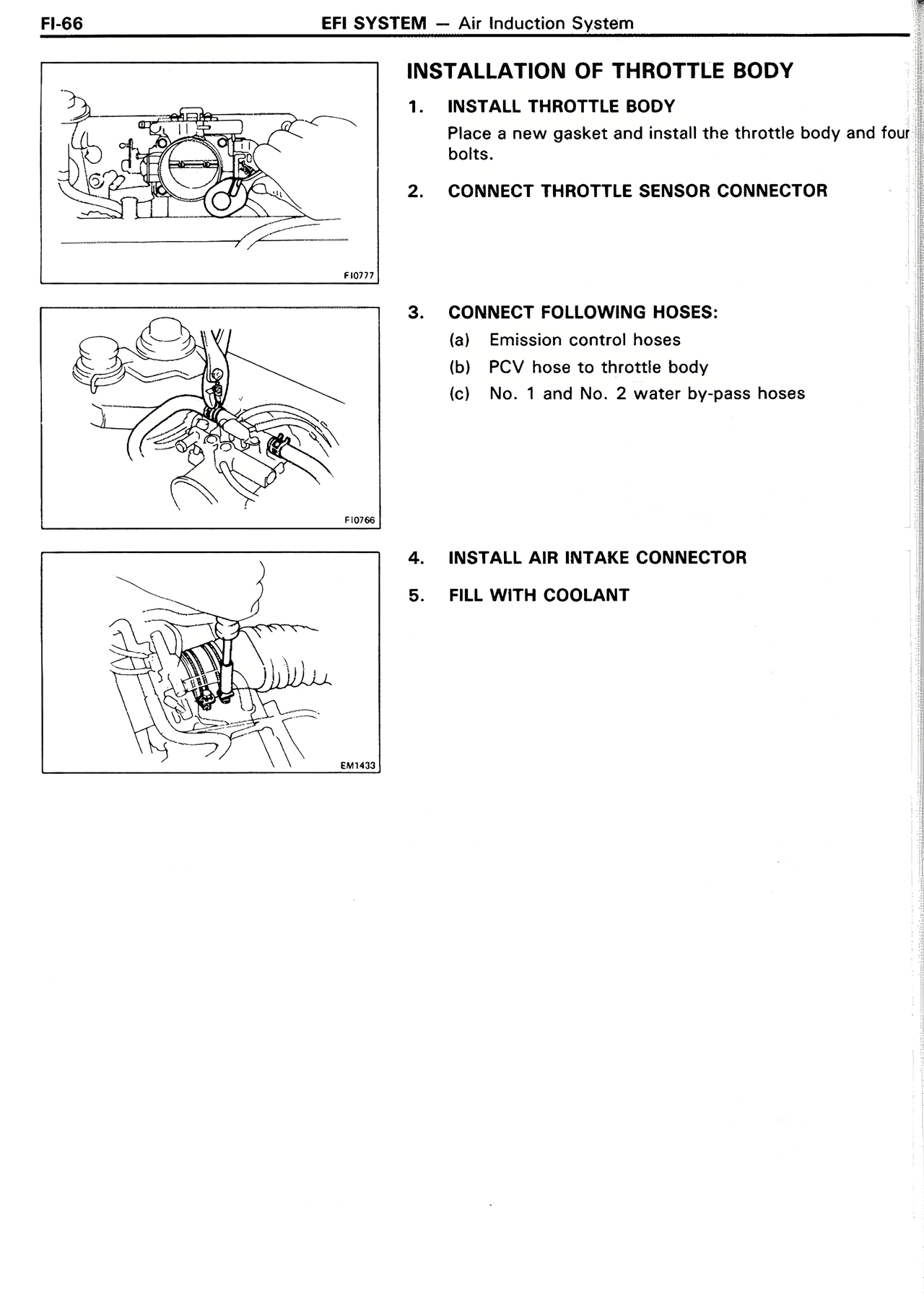

INSTALLATION OF THROTTLE BODY 1. INSTALL THROTTLE BODY Place a new gasket and install the throttle body and four bolts. 2. CONNECT THROTTLE SENSOR CONNECTOR 3. CONNECT FOLLOWING HOSES: (a) Emission control hoses (b) PCV hose to throttle body (c) No. 1 and No. 2 water by-pass hoses 4. INSTALL AIR INTAKE CONNECTOR 5. FILL WITH COOLANT
