EFI SYSTEM — Electronic Control System                                FI-67

ELECTRONIC CONTROL SYSTEM

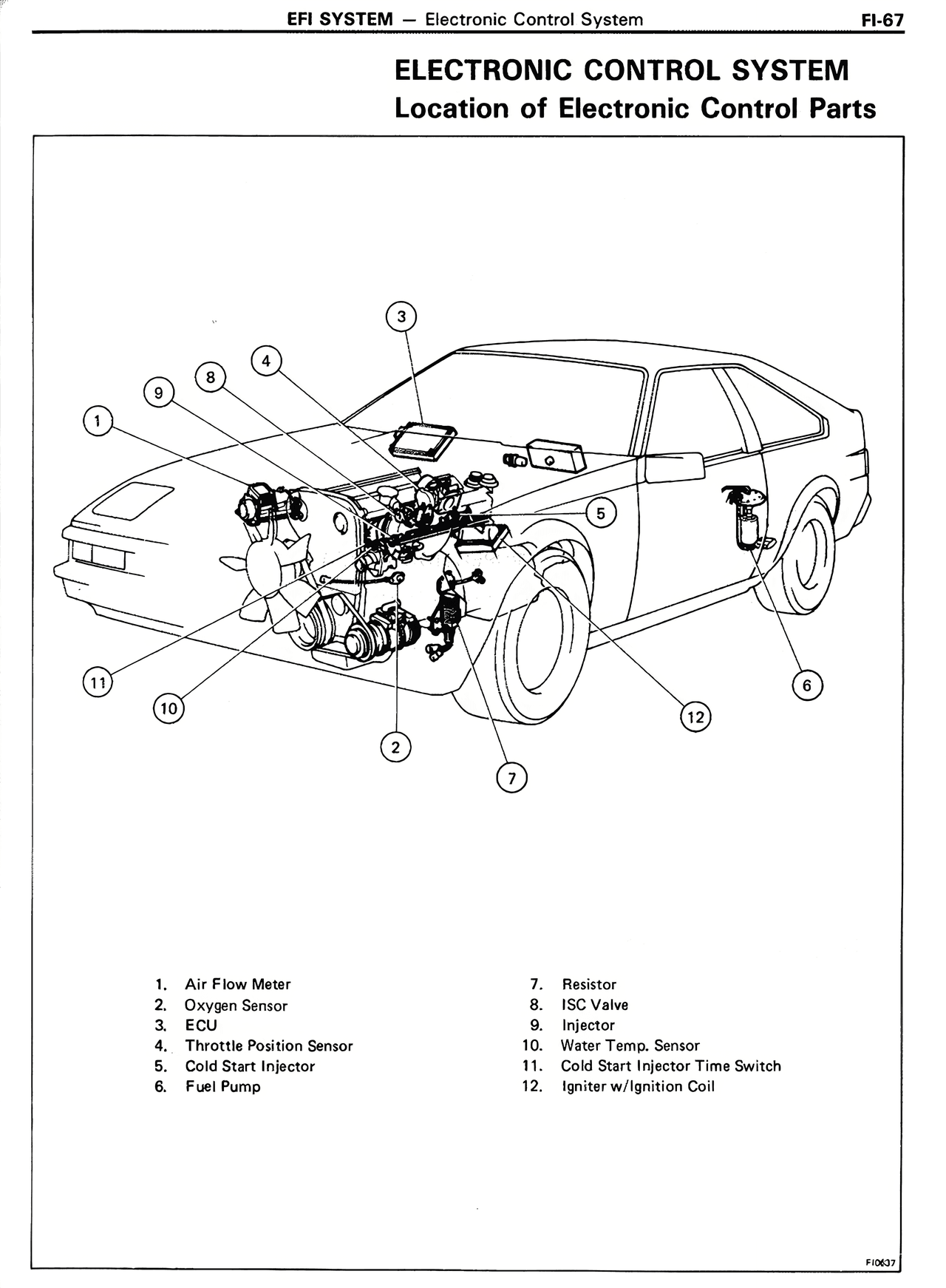

Location of Electronic Control Parts

1. Air Flow Meter
2. Oxygen Sensor
3. ECU
4. Throttle Position Sensor
5. Cold Start Injector
6. Fuel Pump
7. Resistor
8. ISC Valve
9. Injector
10. Water Temp. Sensor
11. Cold Start Injector Time Switch
12. Igniter w/Ignition Coil
