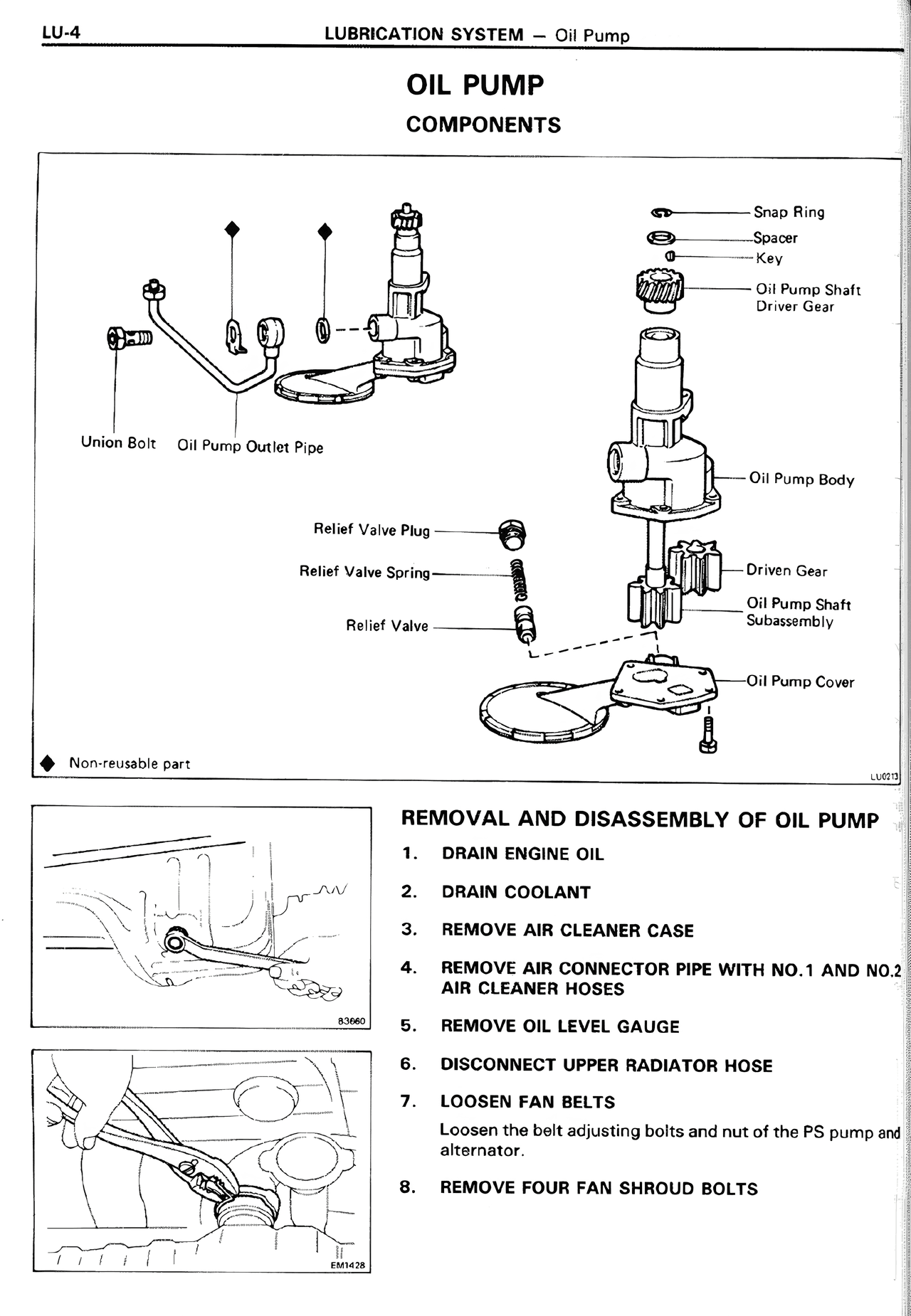

LU/Lubrication System — Oil Pump Components, page 4

LU-4

LUBRICATION SYSTEM — Oil Pump

OIL PUMP
COMPONENTS

Snap Ring
Spacer
Key
Oil Pump Shaft
Driver Gear

Union Bolt
Oil Pump Outlet Pipe

Oil Pump Body

Relief Valve Plug
Relief Valve Spring
Relief Valve

Driven Gear
Oil Pump Shaft
Subassembly

Oil Pump Cover

♦ Non-reusable part

LU401

REMOVAL AND DISASSEMBLY OF OIL PUMP

1. DRAIN ENGINE OIL

2. DRAIN COOLANT

3. REMOVE AIR CLEANER CASE

4. REMOVE AIR CONNECTOR PIPE WITH NO.1 AND NO.2 AIR CLEANER HOSES

5. REMOVE OIL LEVEL GAUGE

6. DISCONNECT UPPER RADIATOR HOSE

7. LOOSEN FAN BELTS
Loosen the belt adjusting bolts and nut of the PS pump and

8. REMOVE FOUR FAN SHROUD BOLTS

EM402

EM432B
