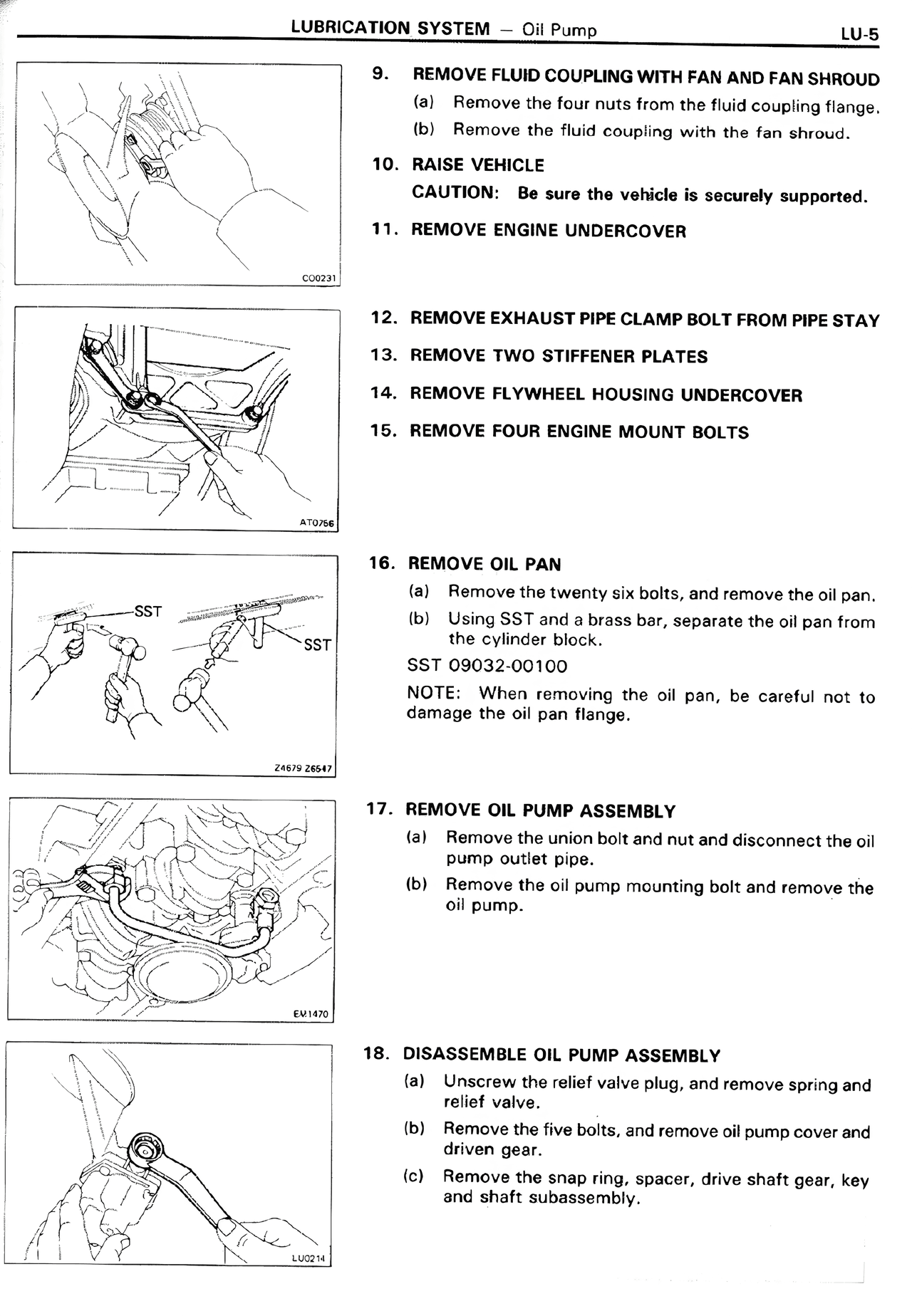

9. REMOVE FLUID COUPLING WITH FAN AND FAN SHROUD
(a) Remove the four nuts from the fluid coupling flange.
(b) Remove the fluid coupling with the fan shroud.
10. RAISE VEHICLE
CAUTION: Be sure the vehicle is securely supported.
11. REMOVE ENGINE UNDERCOVER
12. REMOVE EXHAUST PIPE CLAMP BOLT FROM PIPE STAY
13. REMOVE TWO STIFFENER PLATES
14. REMOVE FLYWHEEL HOUSING UNDERCOVER
15. REMOVE FOUR ENGINE MOUNT BOLTS
16. REMOVE OIL PAN
(a) Remove the twenty six bolts, and remove the oil pan.
(b) Using SST and a brass bar, separate the oil pan from the cylinder block.
SST 09032-00100
NOTE: When removing the oil pan, be careful not to damage the oil pan flange.
17. REMOVE OIL PUMP ASSEMBLY
(a) Remove the union bolt and nut and disconnect the oil pump outlet pipe.
(b) Remove the oil pump mounting bolt and remove the oil pump.
18. DISASSEMBLE OIL PUMP ASSEMBLY
(a) Unscrew the relief valve plug, and remove spring and relief valve.
(b) Remove the five bolts, and remove oil pump cover and driven gear.
(c) Remove the snap ring, spacer, drive shaft gear, key and shaft subassembly.
