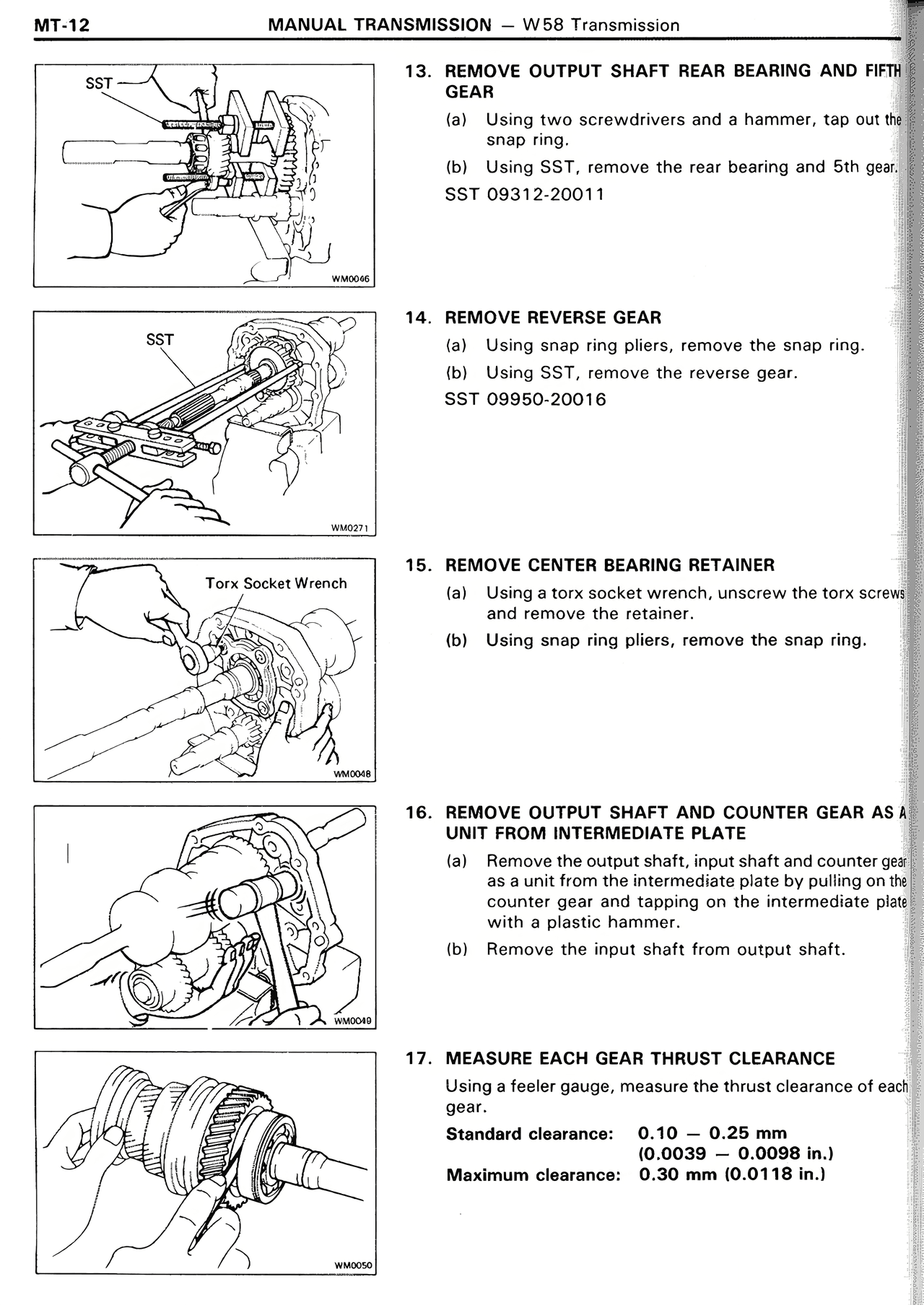

13. REMOVE OUTPUT SHAFT REAR BEARING AND FIFTH GEAR
(a) Using two screwdrivers and a hammer, tap out the snap ring.
(b) Using SST, remove the rear bearing and 5th gear.
SST 09312-20011
14. REMOVE REVERSE GEAR
(a) Using snap ring pliers, remove the snap ring.
(b) Using SST, remove the reverse gear.
SST 09950-20016
15. REMOVE CENTER BEARING RETAINER
(a) Using a torx socket wrench, unscrew the torx screw and remove the retainer.
(b) Using snap ring pliers, remove the snap ring.
16. REMOVE OUTPUT SHAFT AND COUNTER GEAR AS A UNIT FROM INTERMEDIATE PLATE
(a) Remove the output shaft, input shaft and counter gear as a unit from the intermediate plate by pulling on the counter gear and tapping on the intermediate plate with a plastic hammer.
(b) Remove the input shaft from output shaft.
17. MEASURE EACH GEAR THRUST CLEARANCE
Using a feeler gauge, measure the thrust clearance of each gear.
Standard clearance: 0.10 — 0.25 mm
(0.0039 — 0.0098 in.)
Maximum clearance: 0.30 mm (0.0118 in.)
