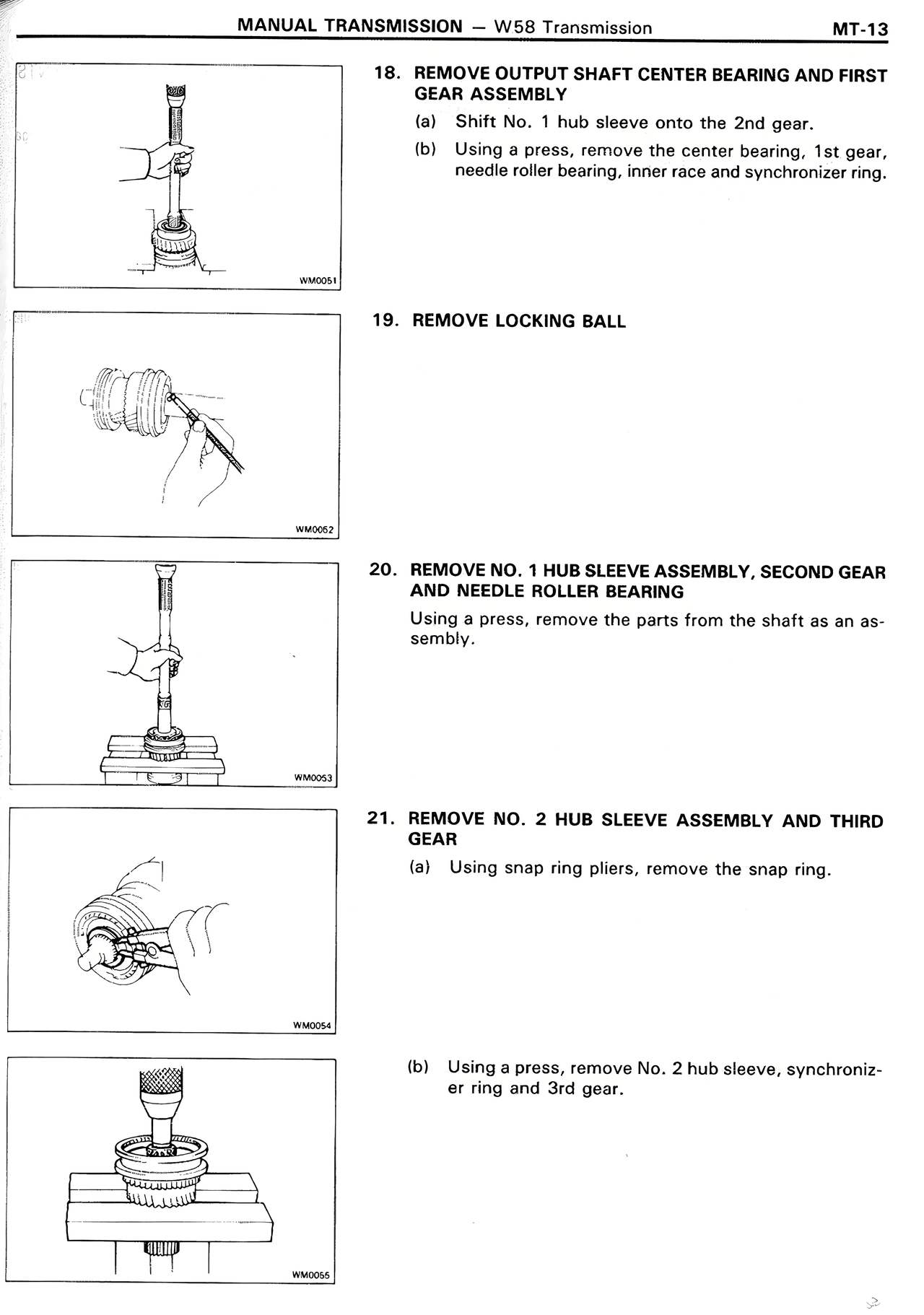

MANUAL TRANSMISSION — W58 Transmission — MK2 Supra Manual Transmission, page 13
100%
18. REMOVE OUTPUT SHAFT CENTER BEARING AND FIRST GEAR ASSEMBLY (a) Shift No. 1 hub sleeve onto the 2nd gear. (b) Using a press, remove the center bearing, 1st gear, needle roller bearing, inner race and synchronizer ring. 19. REMOVE LOCKING BALL 20. REMOVE NO. 1 HUB SLEEVE ASSEMBLY, SECOND GEAR AND NEEDLE ROLLER BEARING Using a press, remove the parts from the shaft as an assembly. 21. REMOVE NO. 2 HUB SLEEVE ASSEMBLY AND THIRD GEAR (a) Using snap ring pliers, remove the snap ring. (b) Using a press, remove No. 2 hub sleeve, synchronizer ring and 3rd gear.
