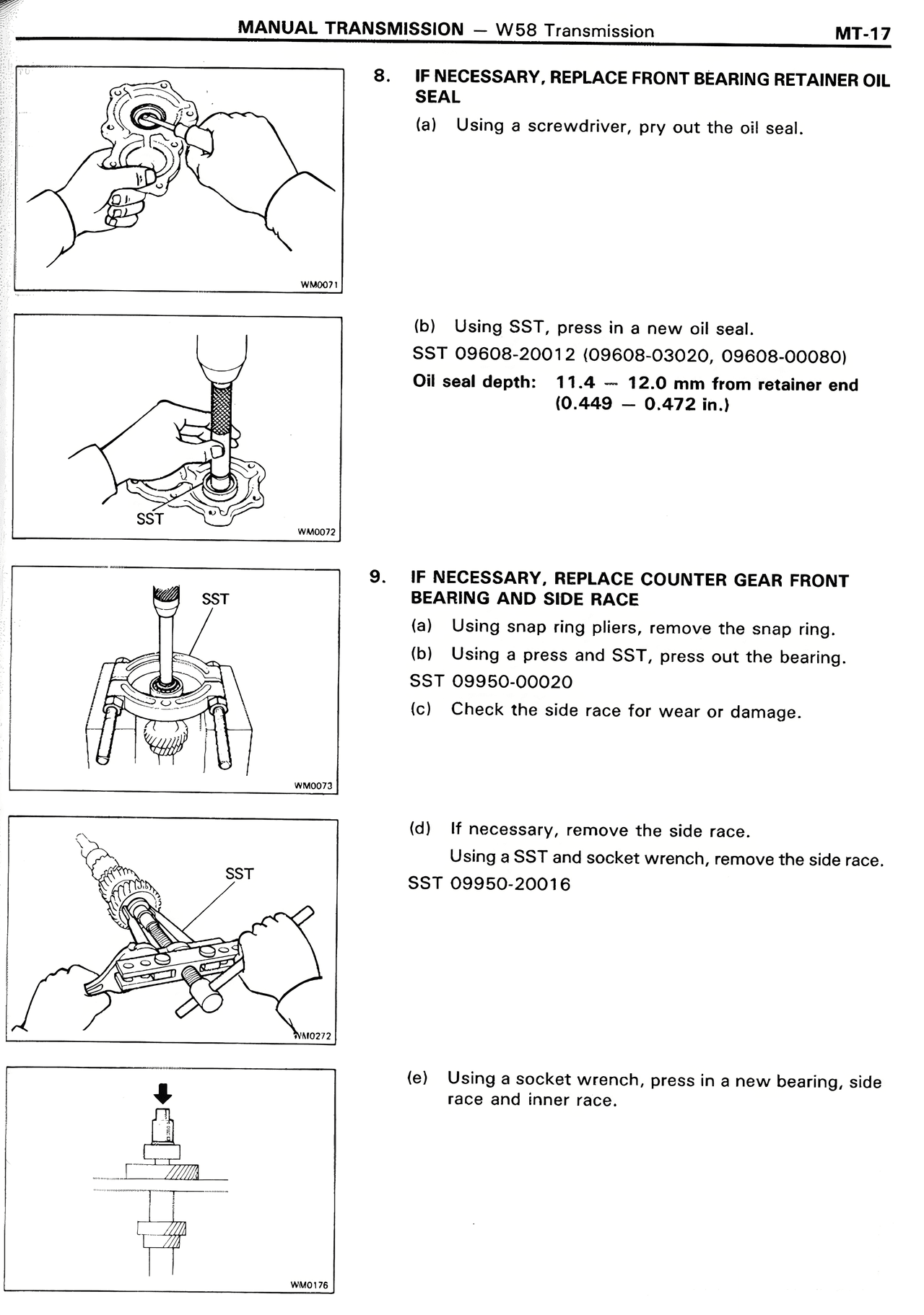

8. IF NECESSARY, REPLACE FRONT BEARING RETAINER OIL SEAL
(a) Using a screwdriver, pry out the oil seal.
(b) Using SST, press in a new oil seal.
SST 09608-20012 (09608-03020, 09608-00080)
Oil seal depth: 11.4 — 12.0 mm from retainer end
(0.449 — 0.472 in.)
9. IF NECESSARY, REPLACE COUNTER GEAR FRONT BEARING AND SIDE RACE
(a) Using snap ring pliers, remove the snap ring.
(b) Using a press and SST, press out the bearing.
SST 09950-00020
(c) Check the side race for wear or damage.
(d) If necessary, remove the side race.
Using a SST and socket wrench, remove the side race.
SST 09950-20016
(e) Using a socket wrench, press in a new bearing, side race and inner race.
