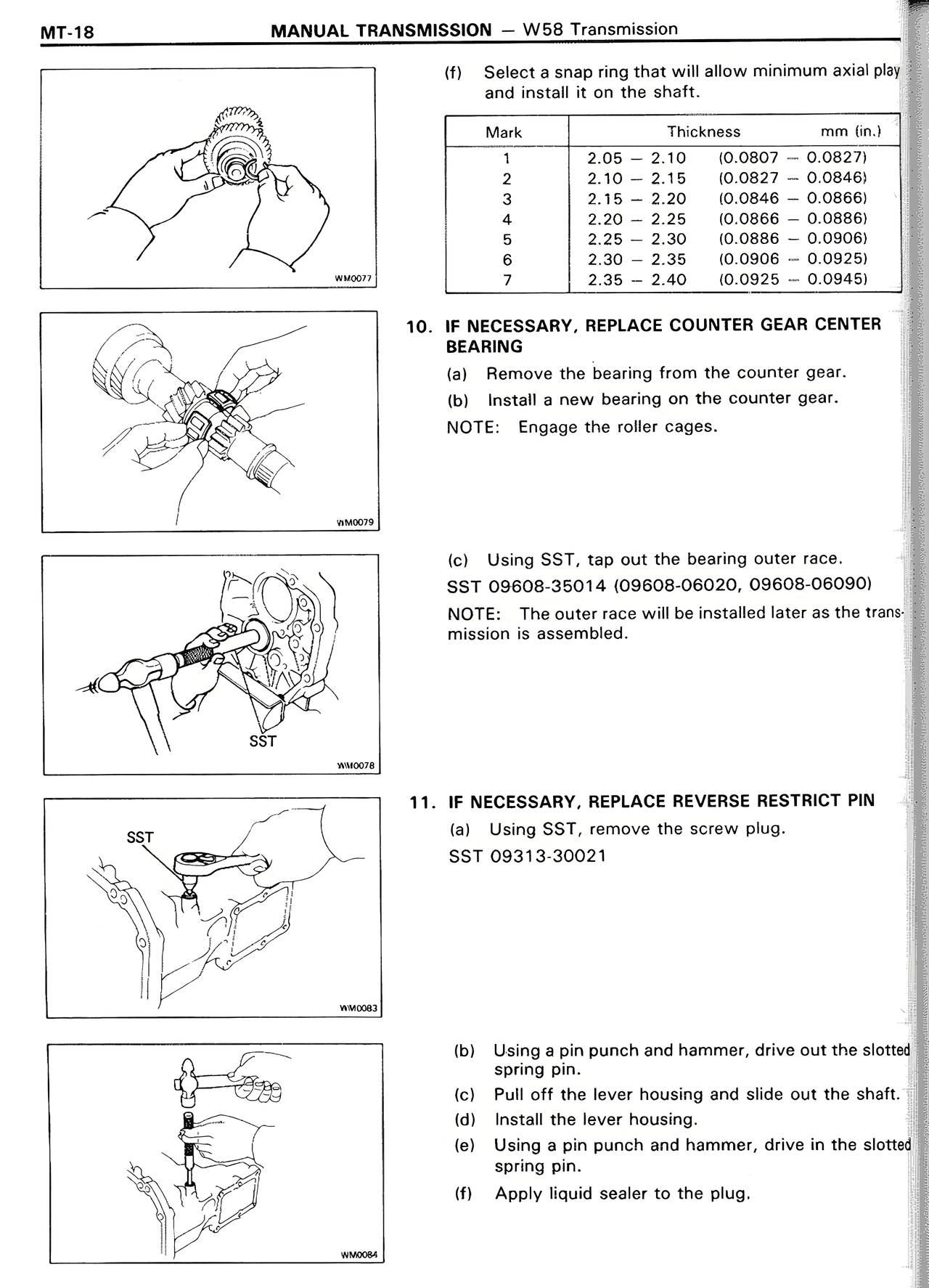

MANUAL TRANSMISSION — W58 Transmission
(f) Select a snap ring that will allow minimum axial play and install it on the shaft.
Mark Thickness mm (in.)
1 2.05 — 2.10 (0.0807 — 0.0827)
2 2.10 — 2.15 (0.0827 — 0.0846)
3 2.15 — 2.20 (0.0846 — 0.0866)
4 2.20 — 2.25 (0.0866 — 0.0886)
5 2.25 — 2.30 (0.0886 — 0.0906)
6 2.30 — 2.35 (0.0906 — 0.0925)
7 2.35 — 2.40 (0.0925 — 0.0945)
10. IF NECESSARY, REPLACE COUNTER GEAR CENTER BEARING
(a) Remove the bearing from the counter gear.
(b) Install a new bearing on the counter gear.
NOTE: Engage the roller cages.
(c) Using SST, tap out the bearing outer race.
SST 09608-35014 (09608-06020, 09608-06090)
NOTE: The outer race will be installed later as the transmission is assembled.
11. IF NECESSARY, REPLACE REVERSE RESTRICT PIN
(a) Using SST, remove the screw plug.
SST 09313-30021
(b) Using a pin punch and hammer, drive out the slotted spring pin.
(c) Pull off the lever housing and slide out the shaft.
(d) Install the lever housing.
(e) Using a pin punch and hammer, drive in the slotted spring pin.
(f) Apply liquid sealer to the plug.
