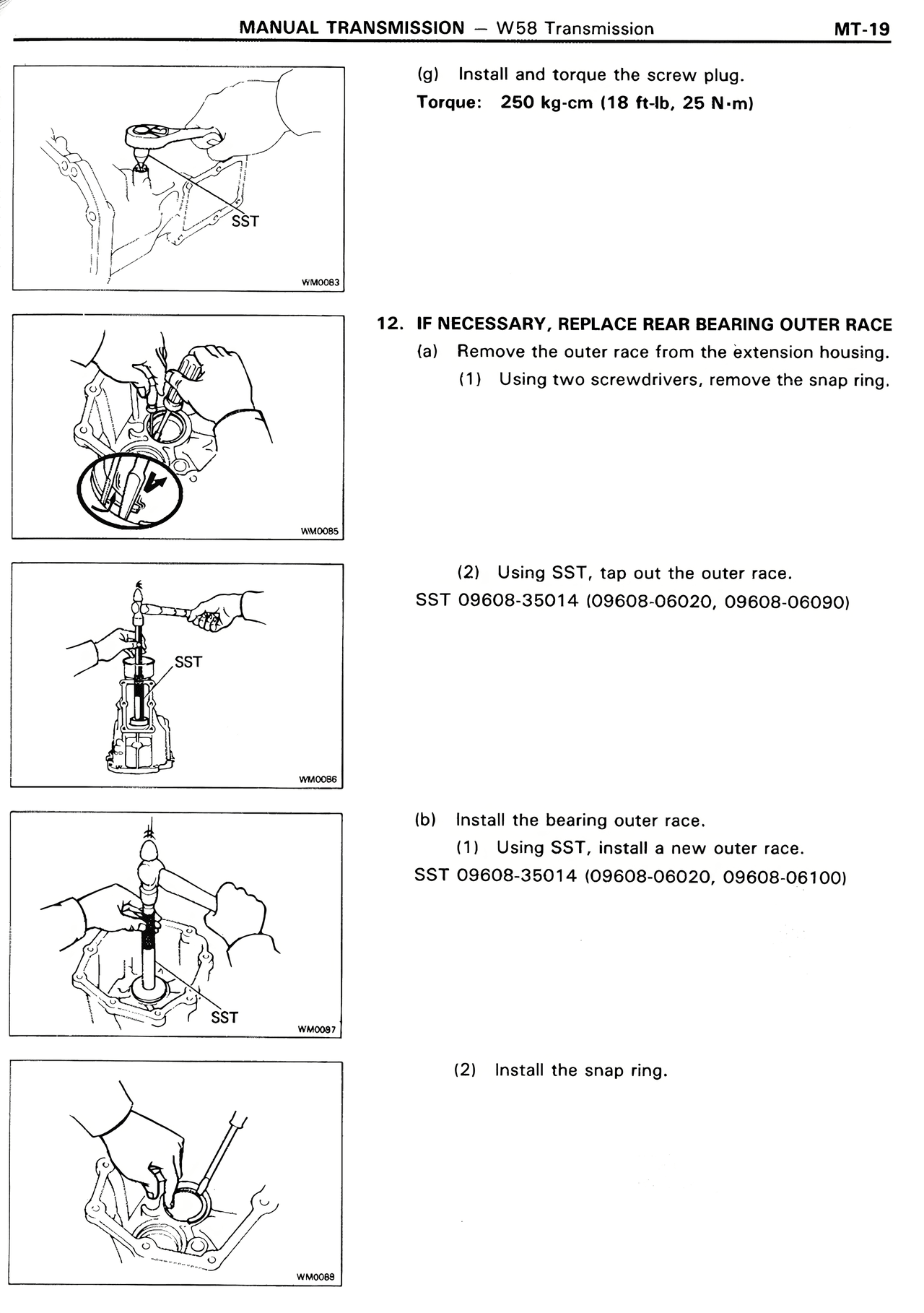

MANUAL TRANSMISSION — W58 Transmission — MK2 Supra Manual Transmission, page 19
100%
MANUAL TRANSMISSION — W58 Transmission (g) Install and torque the screw plug. Torque: 250 kg·cm (18 ft·lb, 25 N·m) 12. IF NECESSARY, REPLACE REAR BEARING OUTER RACE (a) Remove the outer race from the extension housing. (1) Using two screwdrivers, remove the snap ring. (2) Using SST, tap out the outer race. SST 09608-35014 (09608-06020, 09608-06090) (b) Install the bearing outer race. (1) Using SST, install a new outer race. SST 09608-35014 (09608-06020, 09608-06100) (2) Install the snap ring.
