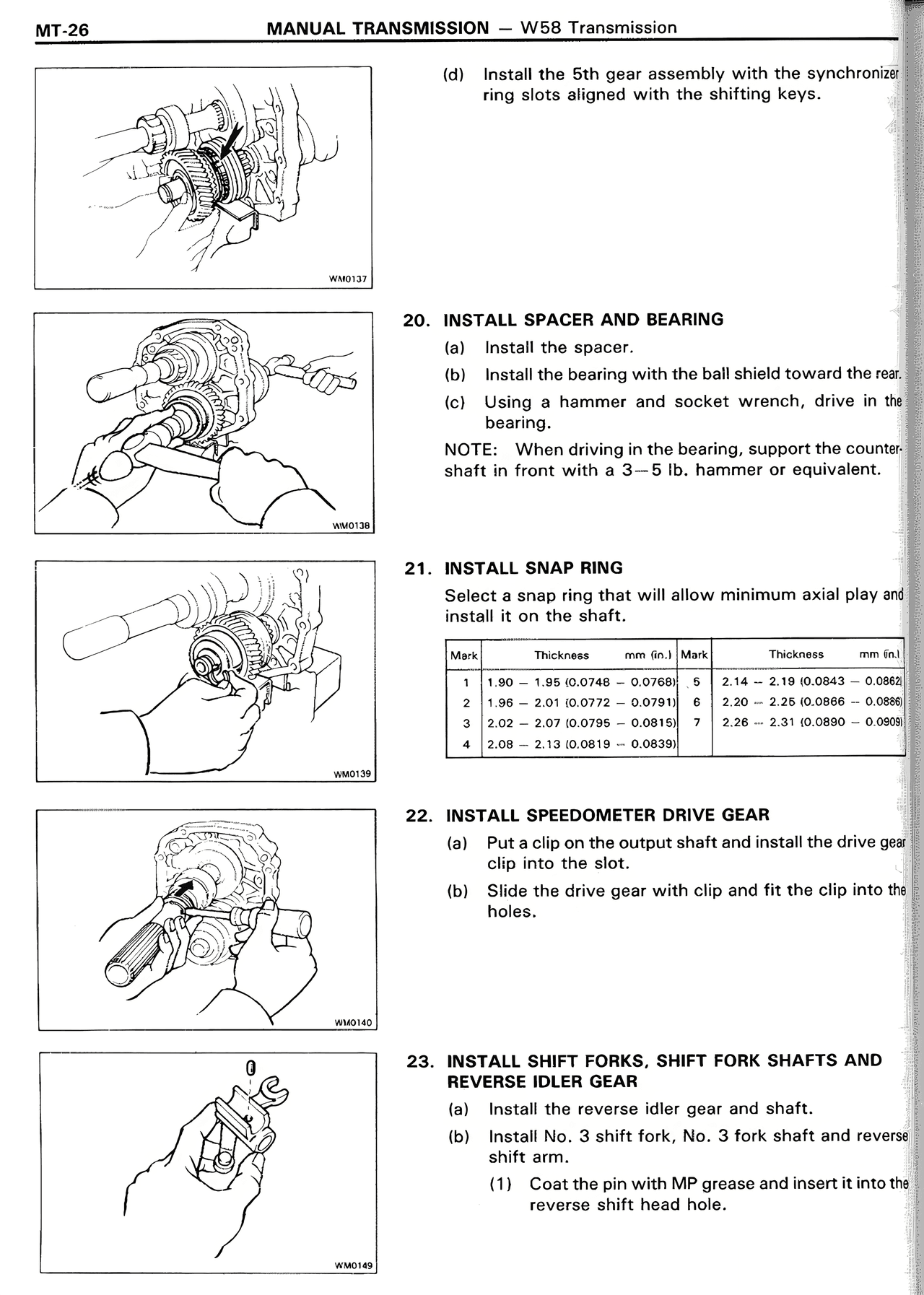

MT-26 MANUAL TRANSMISSION — W58 Transmission
(d) Install the 5th gear assembly with the synchronizer ring slots aligned with the shifting keys.
WM0137
20. INSTALL SPACER AND BEARING
(a) Install the spacer.
(b) Install the bearing with the ball shield toward the rear.
(c) Using a hammer and socket wrench, drive in the bearing.
NOTE: When driving in the bearing, support the counter shaft in front with a 3 — 5 lb. hammer or equivalent.
WM0138
21. INSTALL SNAP RING
Select a snap ring that will allow minimum axial play and install it on the shaft.
Mark | Thickness mm (in.) | Mark | Thickness mm (in.)
1 | 1.90 — 1.95 (0.0748 — 0.0768) | 5 | 2.14 — 2.19 (0.0843 — 0.0862)
2 | 1.96 — 2.01 (0.0772 — 0.0791) | 6 | 2.20 — 2.25 (0.0866 — 0.0886)
3 | 2.02 — 2.07 (0.0795 — 0.0815) | 7 | 2.26 — 2.31 (0.0890 — 0.0909)
4 | 2.08 — 2.13 (0.0819 — 0.0839)
WM0139
22. INSTALL SPEEDOMETER DRIVE GEAR
(a) Put a clip on the output shaft and install the drive gear clip into the slot.
(b) Slide the drive gear with clip and fit the clip into the holes.
WM0142
23. INSTALL SHIFT FORKS, SHIFT FORK SHAFTS AND REVERSE IDLER GEAR
(a) Install the reverse idler gear and shaft.
(b) Install No. 3 shift fork, No. 3 fork shaft and reverse shift arm.
(1) Coat the pin with MP grease and insert it into the reverse shift head hole.
WM0143
