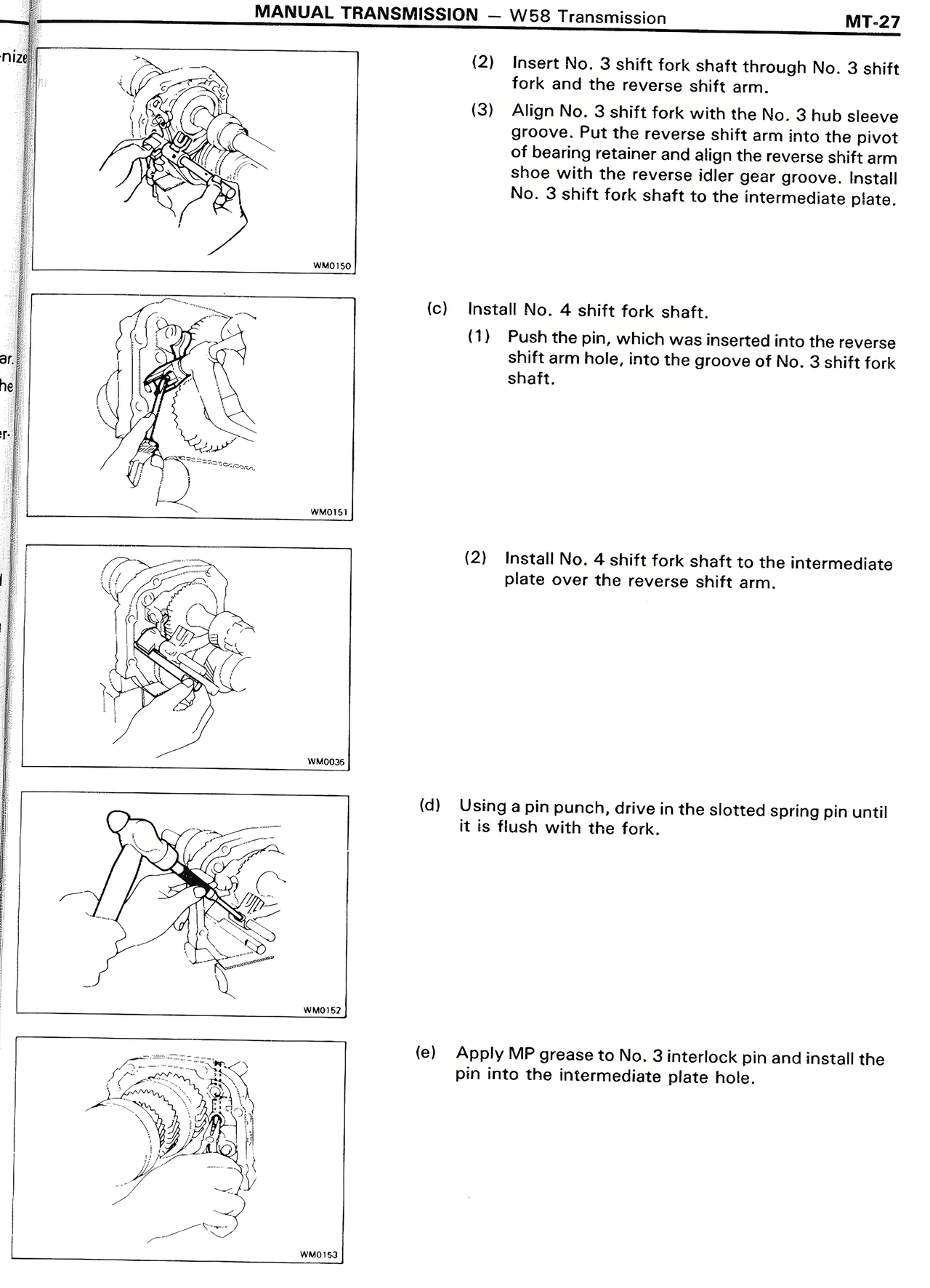

MANUAL TRANSMISSION — W58 Transmission MT-27
(2) Insert No. 3 shift fork shaft through No. 3 shift fork and the reverse shift arm.
(3) Align No. 3 shift fork with the No. 3 hub sleeve groove. Put the reverse shift arm into the pivot of bearing retainer and align the reverse shift arm shoe with the reverse idler gear groove. Install No. 3 shift fork shaft to the intermediate plate.
WM0150
(c) Install No. 4 shift fork shaft.
(1) Push the pin, which was inserted into the reverse shift arm hole, into the groove of No. 3 shift fork shaft.
WM0151
(2) Install No. 4 shift fork shaft to the intermediate plate over the reverse shift arm.
WM0099
(d) Using a pin punch, drive in the slotted spring pin until it is flush with the fork.
WM0152
(e) Apply MP grease to No. 3 interlock pin and install the pin into the intermediate plate hole.
WM0153
