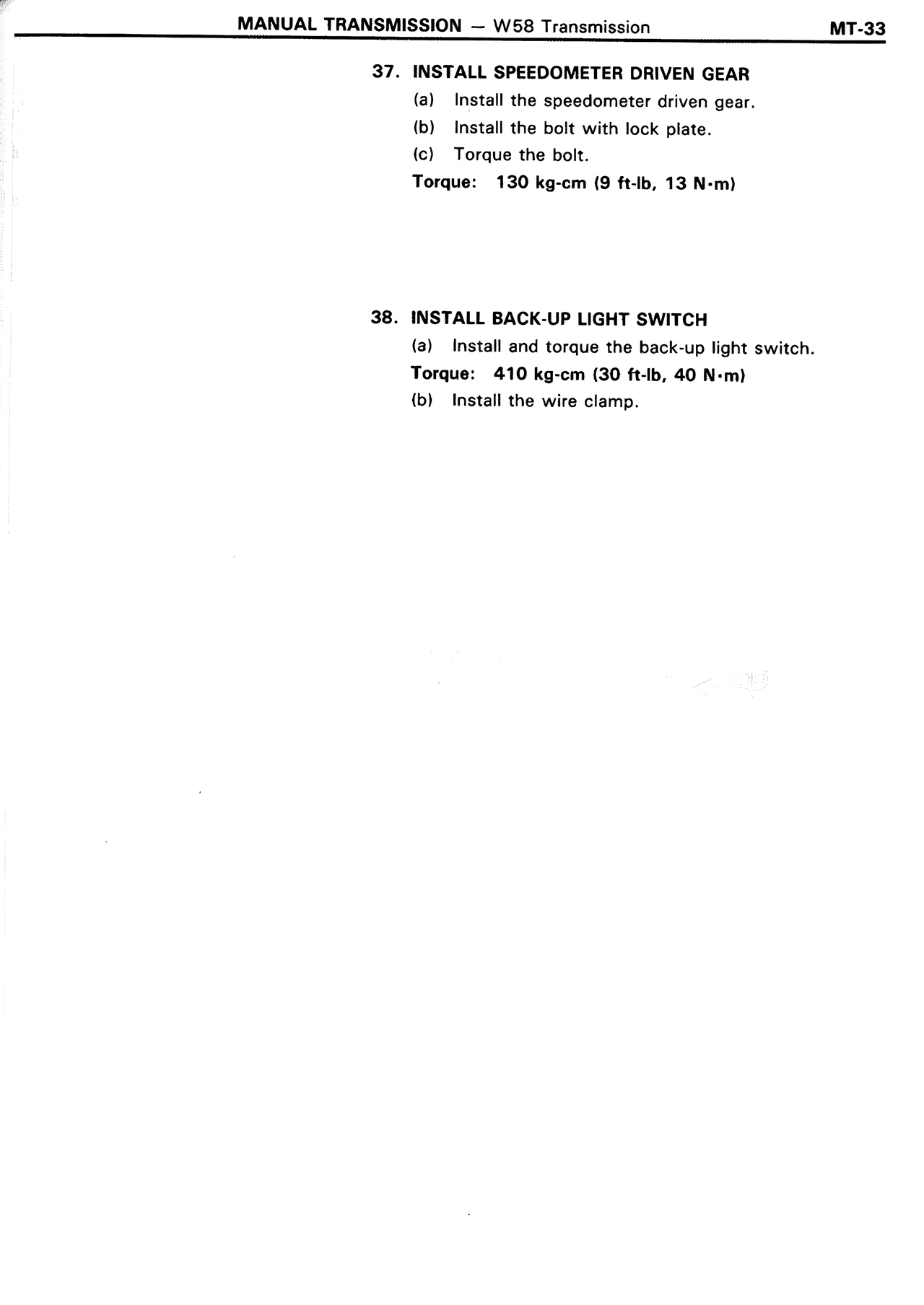

37. INSTALL SPEEDOMETER DRIVEN GEAR (a) Install the speedometer driven gear. (b) Install the bolt with lock plate. (c) Torque the bolt. Torque: 130 kg-cm (9 ft-lb, 13 N·m) 38. INSTALL BACK-UP LIGHT SWITCH (a) Install and torque the back-up light switch. Torque: 410 kg-cm (30 ft-lb, 40 N·m) (b) Install the wire clamp.
