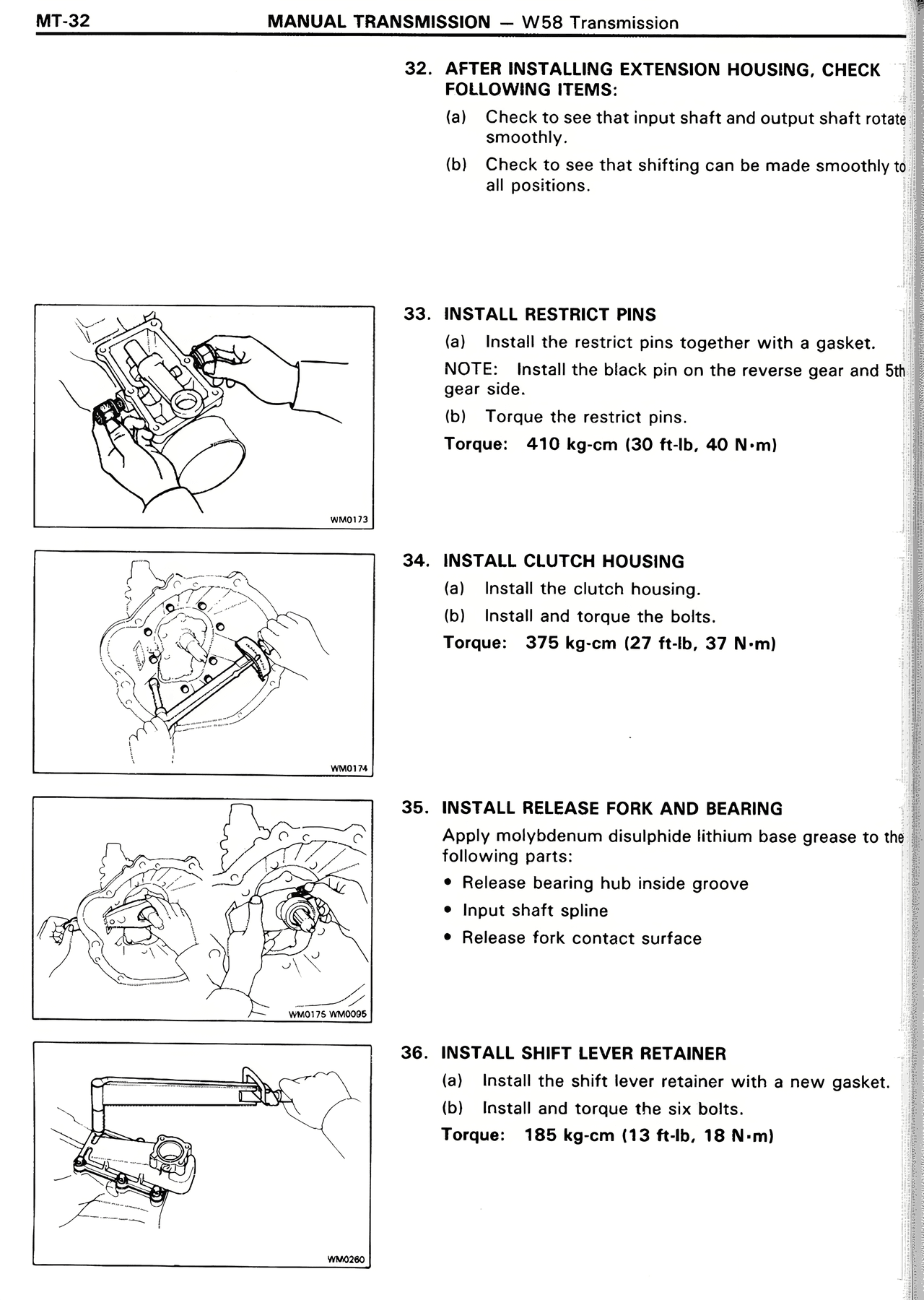

MT-32                    MANUAL TRANSMISSION — W58 Transmission

32. AFTER INSTALLING EXTENSION HOUSING, CHECK
    FOLLOWING ITEMS:
    (a) Check to see that input shaft and output shaft rotate
        smoothly.
    (b) Check to see that shifting can be made smoothly to
        all positions.

33. INSTALL RESTRICT PINS
    (a) Install the restrict pins together with a gasket.
    NOTE: Install the black pin on the reverse gear and 5th
          gear side.
    (b) Torque the restrict pins.
    Torque: 410 kg-cm (30 ft-lb, 40 N·m)

34. INSTALL CLUTCH HOUSING
    (a) Install the clutch housing.
    (b) Install and torque the bolts.
    Torque: 375 kg-cm (27 ft-lb, 37 N·m)

35. INSTALL RELEASE FORK AND BEARING
    Apply molybdenum disulphide lithium base grease to the
    following parts:
    • Release bearing hub inside groove
    • Input shaft spline
    • Release fork contact surface

36. INSTALL SHIFT LEVER RETAINER
    (a) Install the shift lever retainer with a new gasket.
    (b) Install and torque the six bolts.
    Torque: 185 kg-cm (13 ft-lb, 18 N·m)
