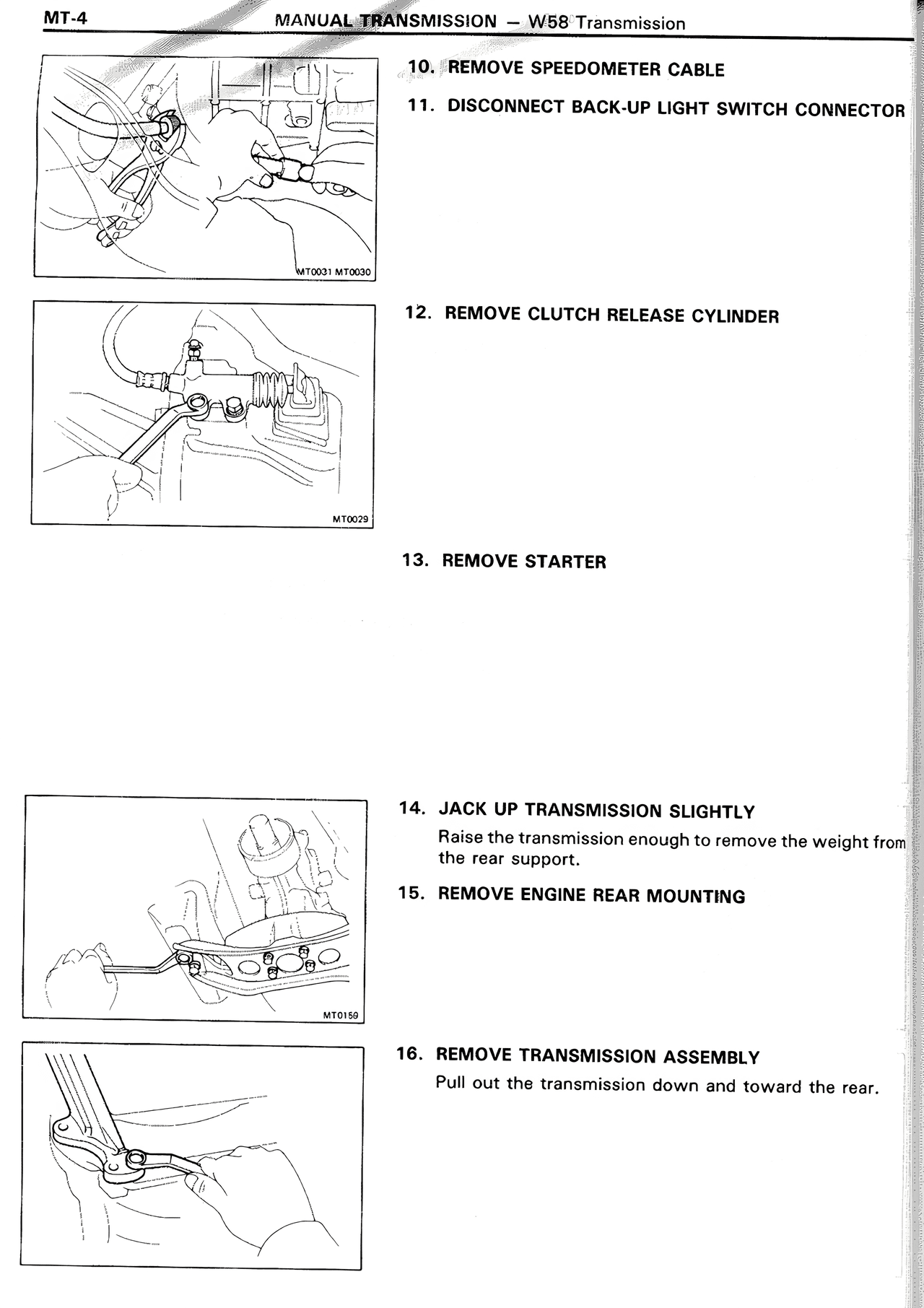

Manual Transmission — MK2 Supra Manual Transmission, page 4
100%
Page text (OCR transcript)
10. REMOVE SPEEDOMETER CABLE

11. DISCONNECT BACK-UP LIGHT SWITCH CONNECTOR

M10031 MT0030

12. REMOVE CLUTCH RELEASE CYLINDER

MT0029

13. REMOVE STARTER

14. JACK UP TRANSMISSION SLIGHTLY
Raise the transmission enough to remove the weight from the rear support.

15. REMOVE ENGINE REAR MOUNTING

MT0193

16. REMOVE TRANSMISSION ASSEMBLY
Pull out the transmission down and toward the rear.
