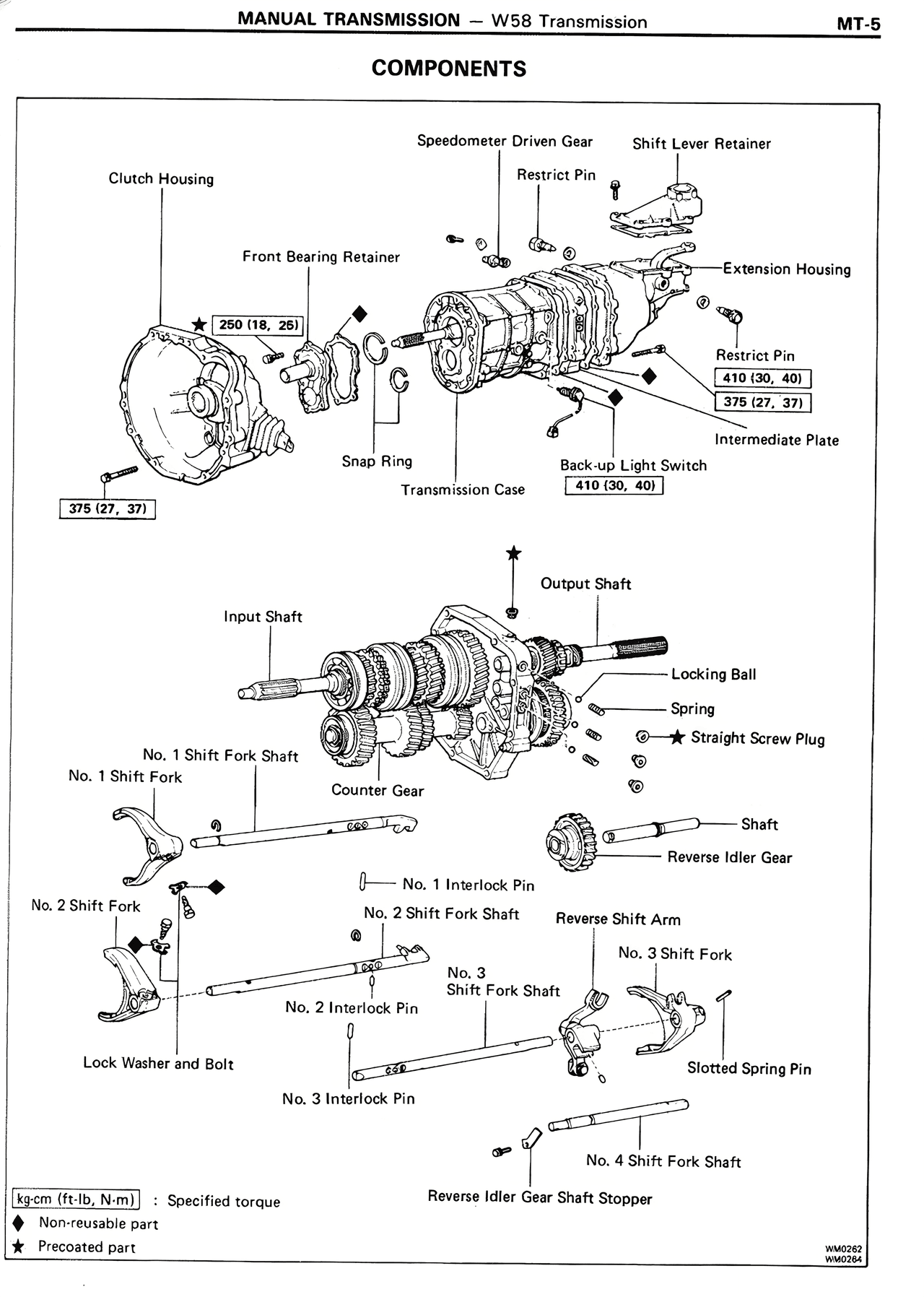

COMPONENTS
Speedometer Driven Gear
Shift Lever Retainer
Clutch Housing
Restrict Pin
Extension Housing
Front Bearing Retainer
Restrict Pin
250 [18, 26]
410 [30, 40]
375 [27, 37]
Snap Ring
Intermediate Plate
Transmission Case
Back up Light Switch
410 [30, 40]
375 [27, 37]
Output Shaft
Input Shaft
Locking Ball
Spring
No. 1 Shift Fork Shaft
Straight Screw Plug
No. 1 Shift Fork
Counter Gear
Shaft
Reverse Idler Gear
No. 1 Interlock Pin
Reverse Shift Arm
No. 2 Shift Fork Shaft
No. 2 Shift Fork
No. 3 Shift Fork
No. 3
Shift Fork Shaft
No. 2 Interlock Pin
Slotted Spring Pin
Lock Washer and Bolt
No. 3 Interlock Pin
No. 4 Shift Fork Shaft
Reverse Idler Gear Shaft Stopper
kg·cm [ft·lb, N·m] : Specified torque
♦ Non-reusable part
★ Precoated part
WM0282
WM0354
