7. INSTALL COMPANION FLANGE
(See step 12 on page RA-34)
8. CHECK FRONT BEARING PRELOAD
(See step 13 on page RA-35)
9. CHECK DEVIATION OF COMPANION FLANGE
(See step 14 on page RA-35)
10. STAKE DRIVE PINION NUT
11. INSTALL DIFFERENTIAL (See page RA-36)

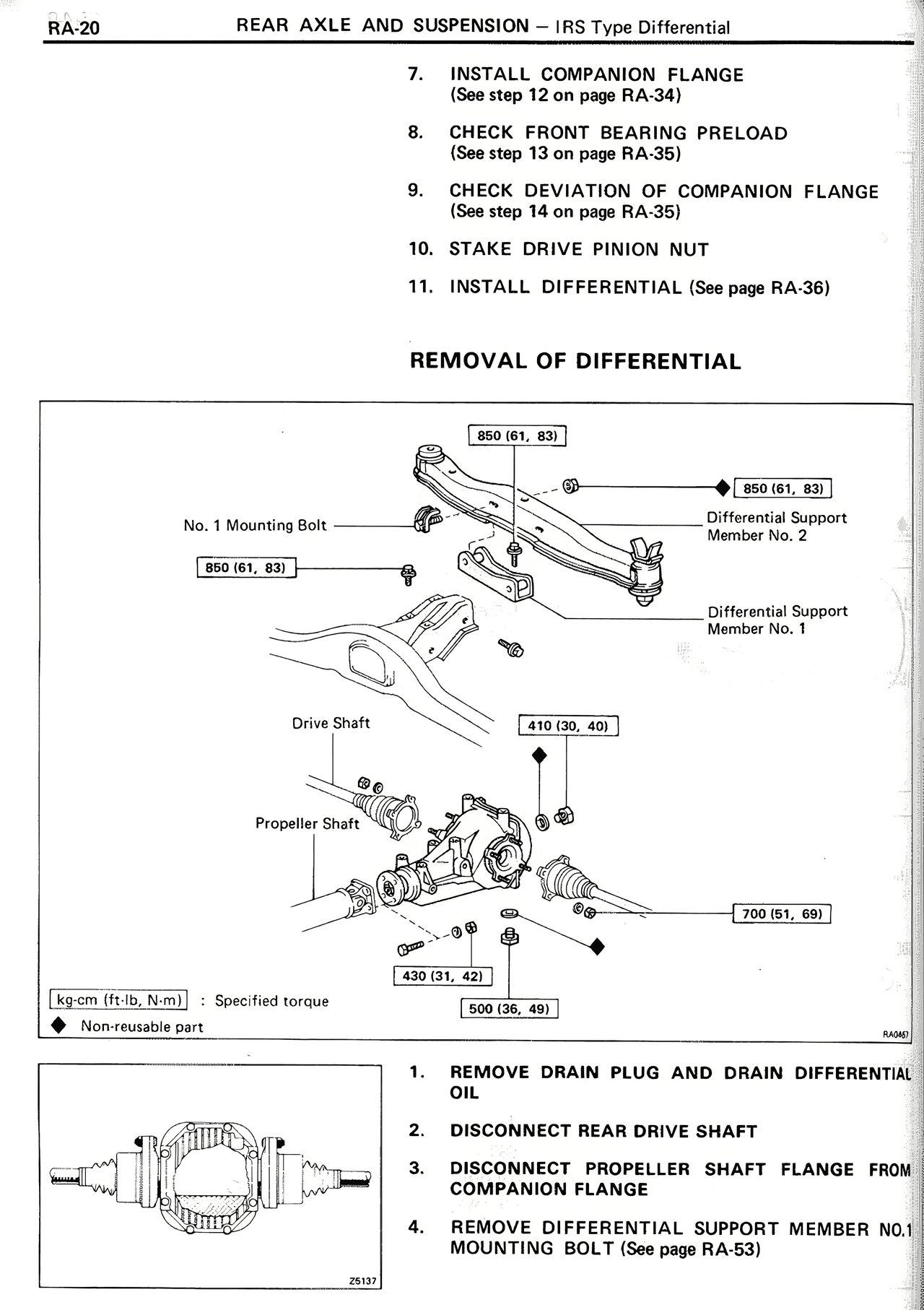

REMOVAL OF DIFFERENTIAL
[Diagram showing differential assembly with labeled parts and torque specifications]
No. 1 Mounting Bolt
850 (61, 83)
Differential Support Member No. 2
950 (61, 83)
Differential Support Member No. 1
850 (61, 83)
Drive Shaft
410 (30, 40)
Propeller Shaft
700 (51, 69)
430 (31, 42)
500 (36, 49)
kg-cm (ft-lb, N-m) : Specified torque
◆ Non-reusable part
[Diagram showing differential cross-section]
1. REMOVE DRAIN PLUG AND DRAIN DIFFERENTIAL OIL
2. DISCONNECT REAR DRIVE SHAFT
3. DISCONNECT PROPELLER SHAFT FLANGE FROM COMPANION FLANGE
4. REMOVE DIFFERENTIAL SUPPORT MEMBER NO.1 MOUNTING BOLT (See page RA-53)
