← p.020
RA
/
Rear Axle And Suspension
21 / 55
p.022 →
−
100%
+

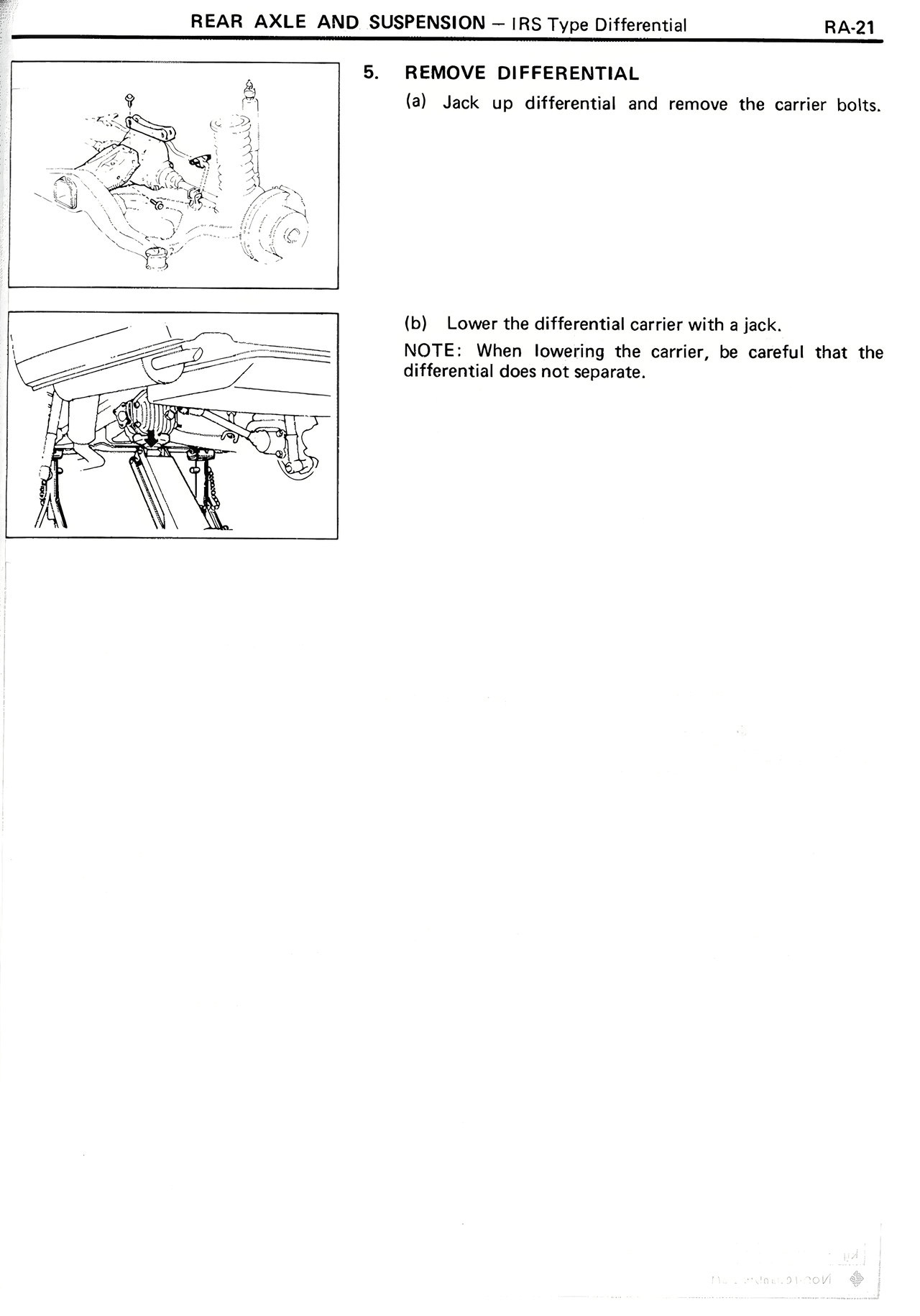

5. REMOVE DIFFERENTIAL (a) Jack up differential and remove the carrier bolts. (b) Lower the differential carrier with a jack. NOTE: When lowering the carrier, be careful that the differential does not separate.
