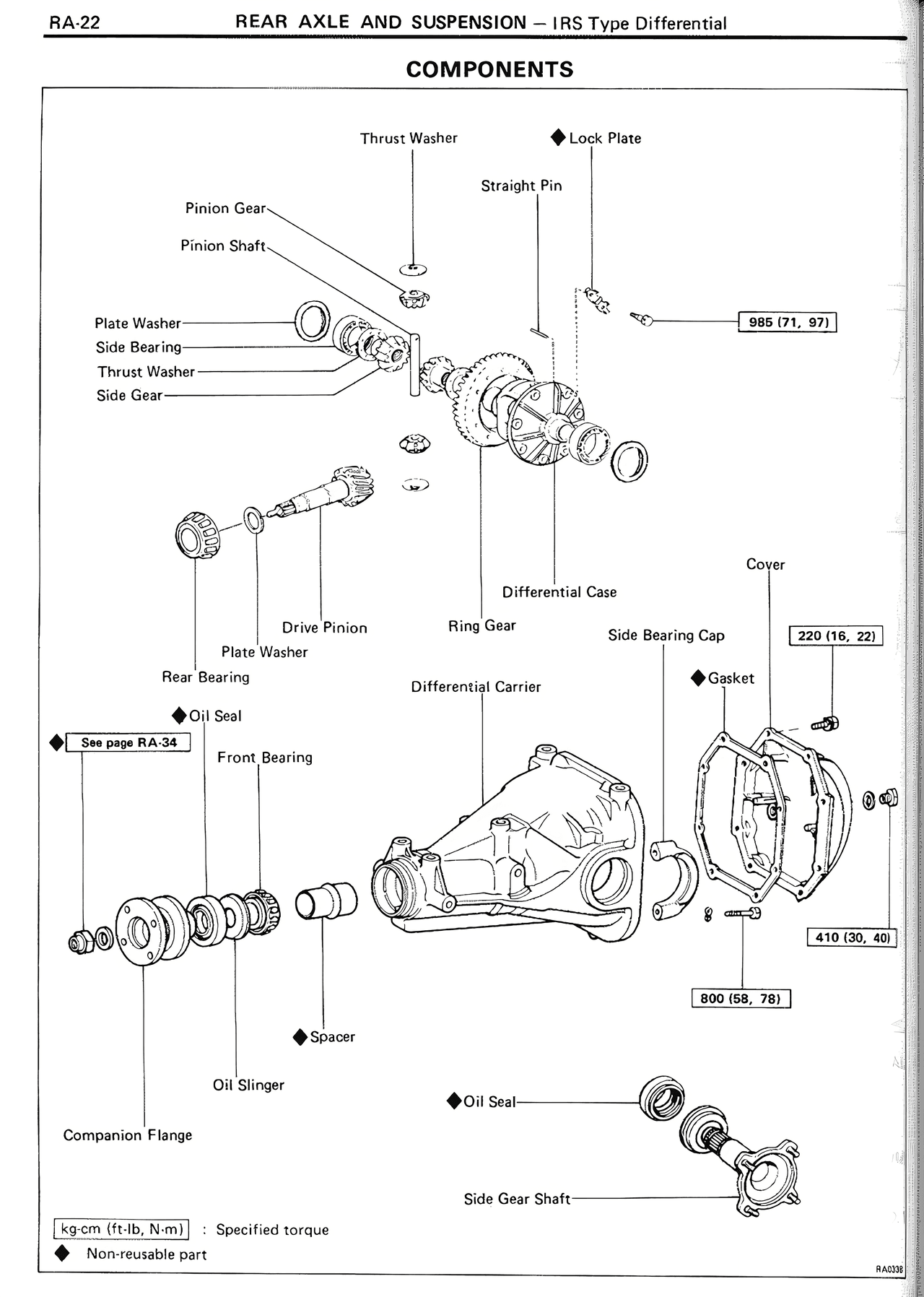

COMPONENTS Thrust Washer Lock Plate Straight Pin Pinion Gear Pinion Shaft 985 [71, 87] Plate Washer Side Bearing Thrust Washer Side Gear Cover Differential Case 220 [16, 22] Ring Gear Drive Pinion Side Bearing Cap Plate Washer Differential Carrier Gasket Rear Bearing Oil Seal See page RA 34 Front Bearing 410 [30, 40] 800 [58, 78] Spacer Oil Slinger Oil Seal Companion Flange Side Gear Shaft kg-cm [ft-lb, N-m] : Specified torque Non-reusable part RA22B
