Adjusting Washer
RA0370
Adjusting Washer
RA0369
RA0372
B4111
RA0373

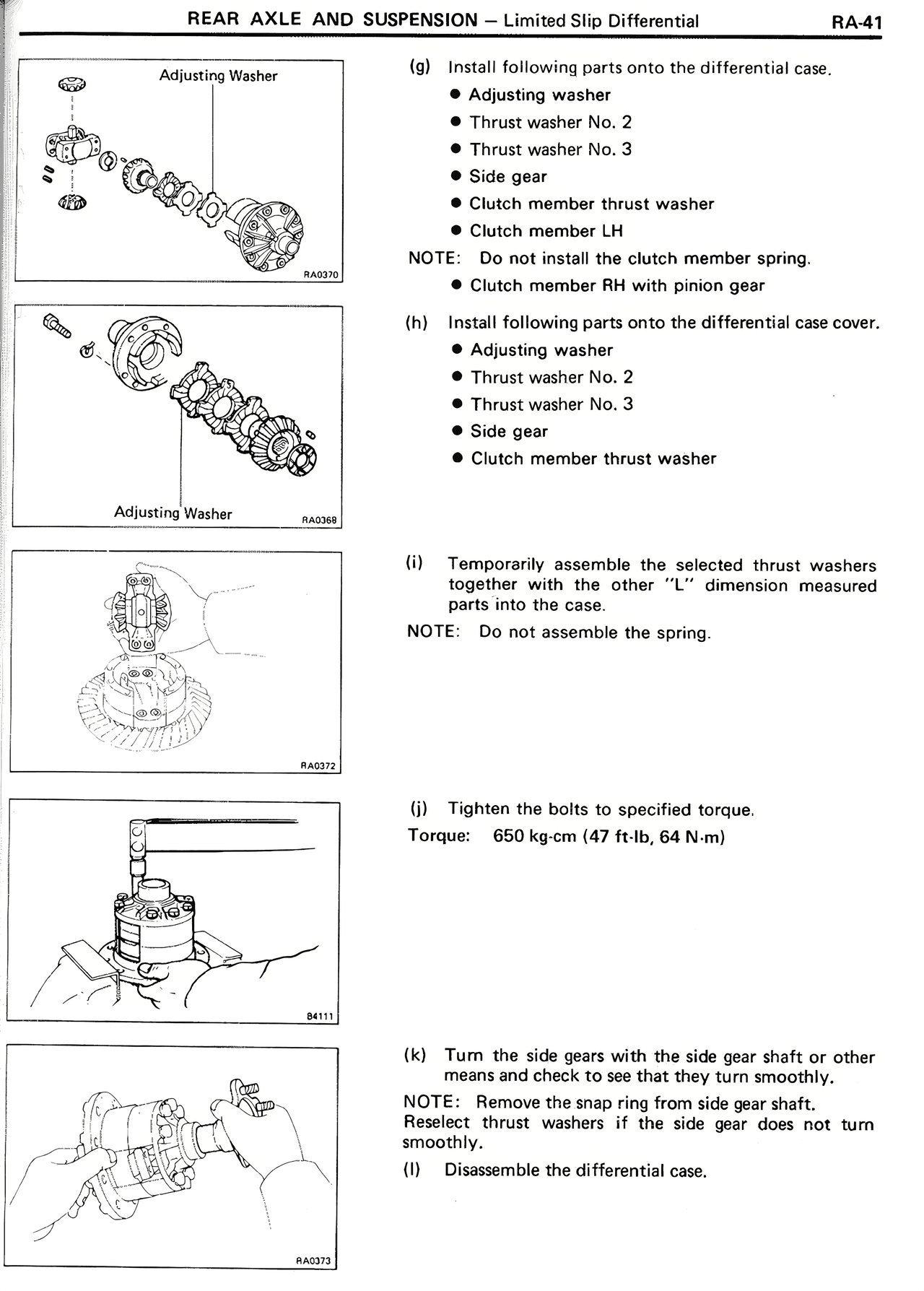

(g) Install following parts onto the differential case.
• Adjusting washer
• Thrust washer No. 2
• Thrust washer No. 3
• Side gear
• Clutch member thrust washer
• Clutch member LH
NOTE: Do not install the clutch member spring.
• Clutch member RH with pinion gear
(h) Install following parts onto the differential case cover.
• Adjusting washer
• Thrust washer No. 2
• Thrust washer No. 3
• Side gear
• Clutch member thrust washer
(i) Temporarily assemble the selected thrust washers together with the other "L" dimension measured parts into the case.
NOTE: Do not assemble the spring.
(j) Tighten the bolts to specified torque.
Torque: 650 kg·cm (47 ft·lb, 64 N·m)
(k) Turn the side gears with the side gear shaft or other means and check to see that they turn smoothly.
NOTE: Remove the snap ring from side gear shaft. Reselect thrust washers if the side gear does not turn smoothly.
(l) Disassemble the differential case.
