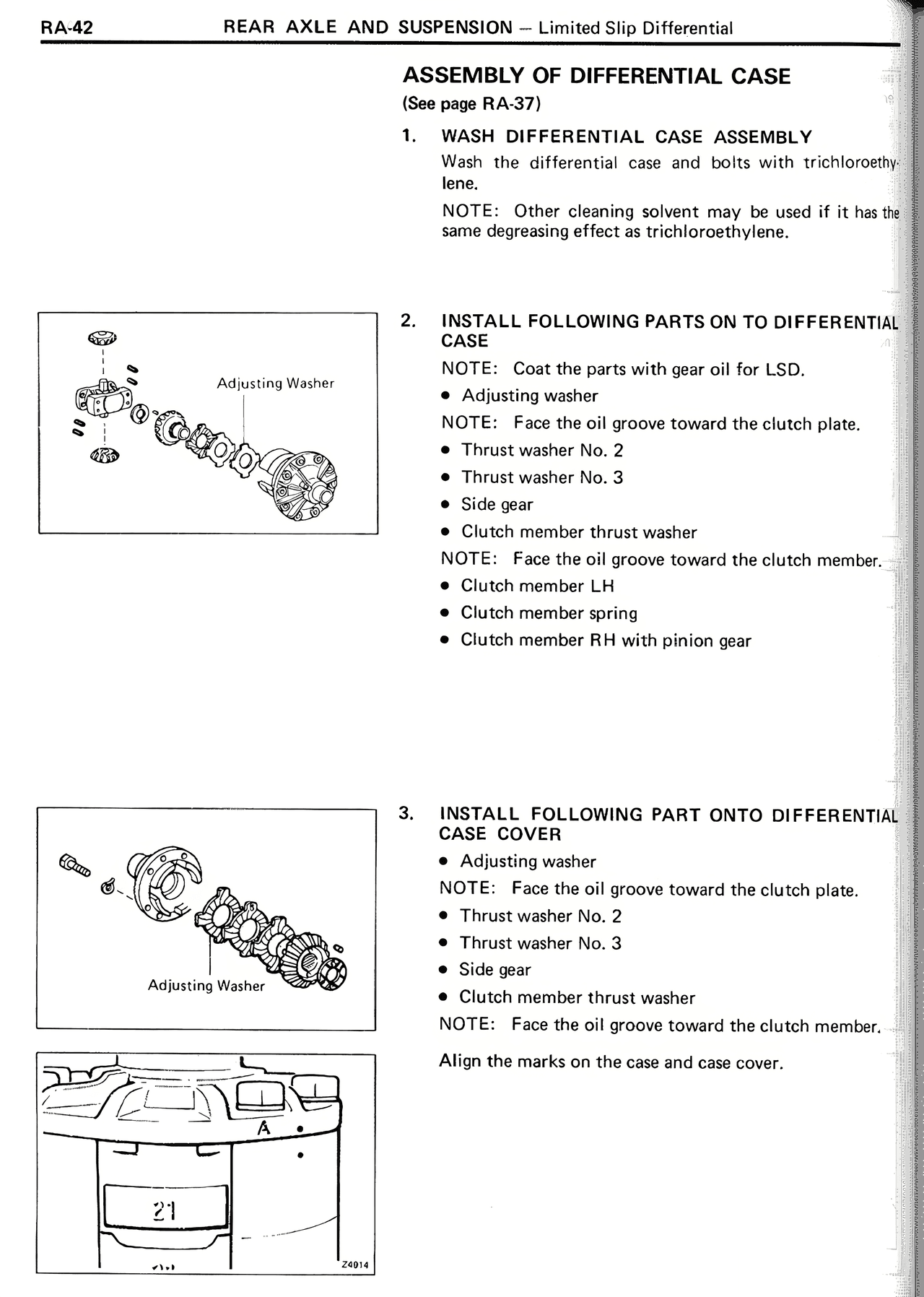

ASSEMBLY OF DIFFERENTIAL CASE
(See page RA-37)
1. WASH DIFFERENTIAL CASE ASSEMBLY
Wash the differential case and bolts with trichloroethylene.
NOTE: Other cleaning solvent may be used if it has the same degreasing effect as trichloroethylene.
2. INSTALL FOLLOWING PARTS ON TO DIFFERENTIAL CASE
NOTE: Coat the parts with gear oil for LSD.
• Adjusting washer
NOTE: Face the oil groove toward the clutch plate.
• Thrust washer No. 2
• Thrust washer No. 3
• Side gear
• Clutch member thrust washer
NOTE: Face the oil groove toward the clutch member.
• Clutch member LH
• Clutch member spring
• Clutch member RH with pinion gear
3. INSTALL FOLLOWING PART ONTO DIFFERENTIAL CASE COVER
• Adjusting washer
NOTE: Face the oil groove toward the clutch plate.
• Thrust washer No. 2
• Thrust washer No. 3
• Side gear
• Clutch member thrust washer
NOTE: Face the oil groove toward the clutch member.
Align the marks on the case and case cover.
