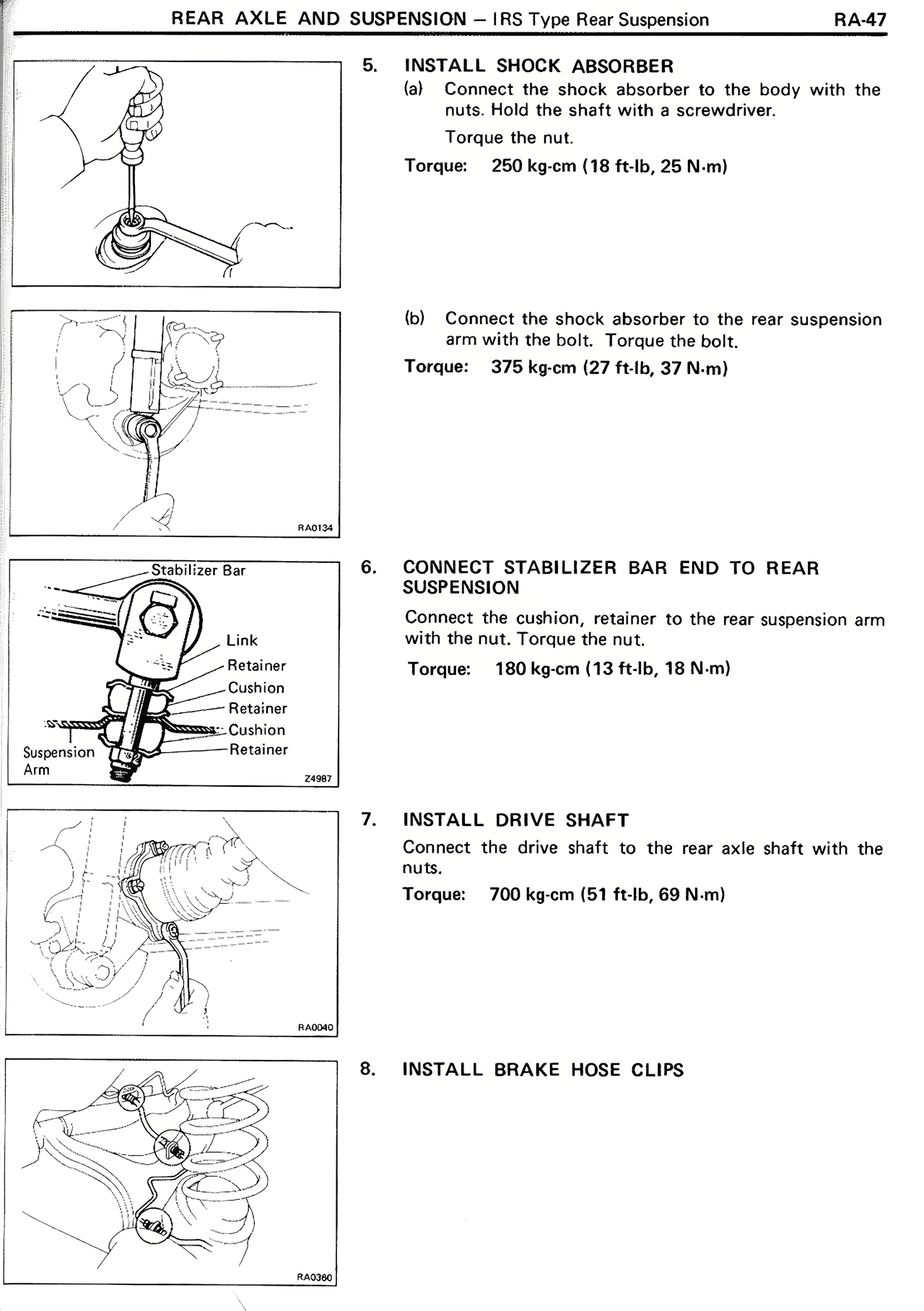

REAR AXLE AND SUSPENSION – IRS Type Rear Suspension — MK2 Supra Rear Axle And Suspension, page 47
100%
5. INSTALL SHOCK ABSORBER (a) Connect the shock absorber to the body with the nuts. Hold the shaft with a screwdriver. Torque the nut. Torque: 250 kg-cm (18 ft-lb, 25 N·m) (b) Connect the shock absorber to the rear suspension arm with the bolt. Torque the bolt. Torque: 375 kg-cm (27 ft-lb, 37 N·m) 6. CONNECT STABILIZER BAR END TO REAR SUSPENSION Connect the cushion retainer to the rear suspension arm with the nut. Torque the nut. Torque: 180 kg-cm (13 ft-lb, 18 N·m) Stabilizer Bar Link Retainer Cushion Retainer Cushion Retainer Suspension Arm 7. INSTALL DRIVE SHAFT Connect the drive shaft to the rear axle shaft with the nuts. Torque: 700 kg-cm (51 ft-lb, 69 N·m) 8. INSTALL BRAKE HOSE CLIPS
