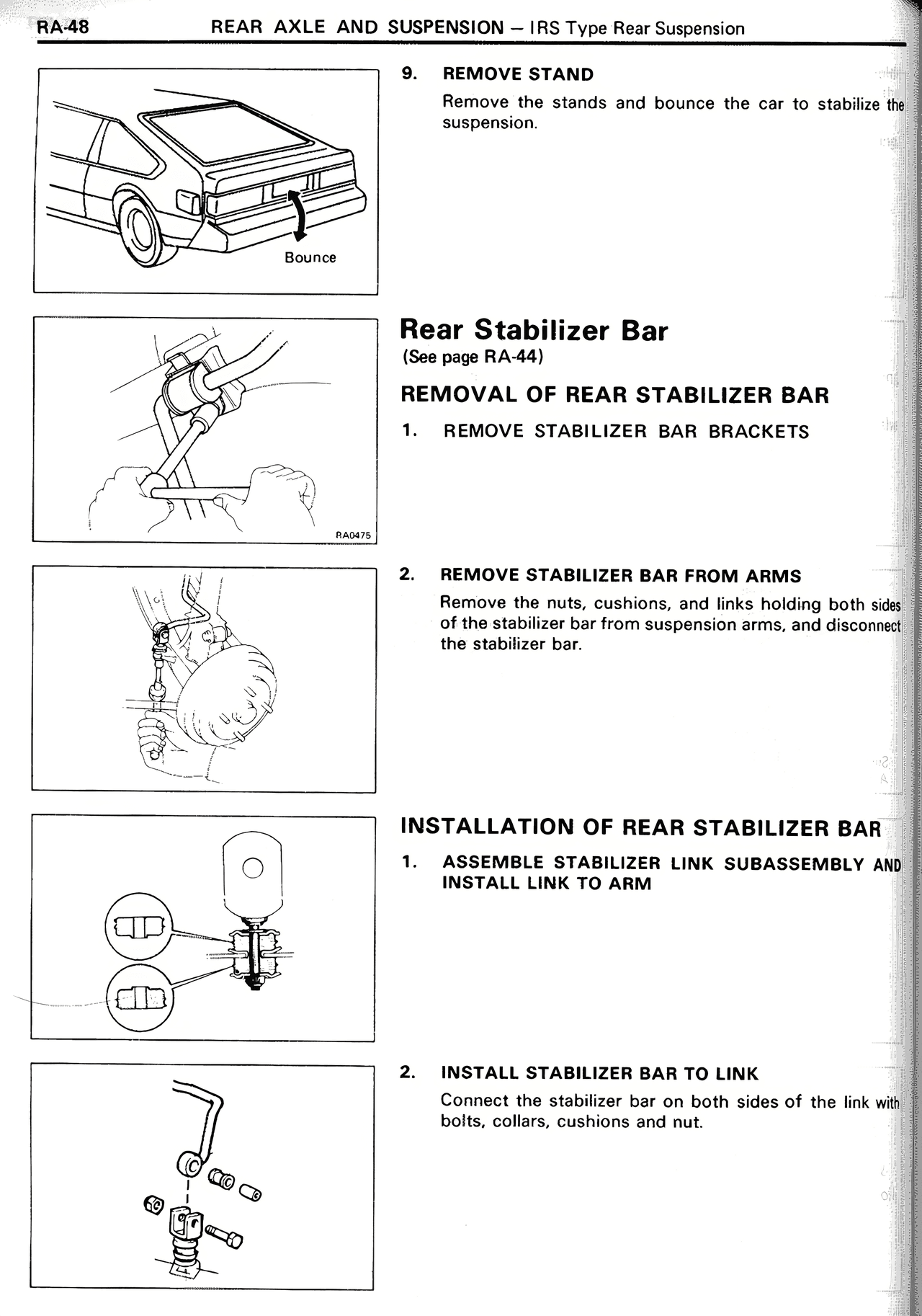

RA/Rear Axle And Suspension, page 48

RA-48                    REAR AXLE AND SUSPENSION — IRS Type Rear Suspension

9. REMOVE STAND
Remove the stands and bounce the car to stabilize the suspension.

Bounce

Rear Stabilizer Bar
(See page RA-44)

REMOVAL OF REAR STABILIZER BAR

1. REMOVE STABILIZER BAR BRACKETS

RA6475

2. REMOVE STABILIZER BAR FROM ARMS
Remove the nuts, cushions, and links holding both sides of the stabilizer bar from suspension arms, and disconnect the stabilizer bar.

INSTALLATION OF REAR STABILIZER BAR

1. ASSEMBLE STABILIZER LINK SUBASSEMBLY AND INSTALL LINK TO ARM

2. INSTALL STABILIZER BAR TO LINK
Connect the stabilizer bar on both sides of the link with bolts, collars, cushions and nut.
